Low profile Inbox for retrofit siding construction. Vertical with clear cover. Siding Lap size 1/2"
SKU: #71470
Part: #DBVR141C
UPC: 018997143716
Low profile Inbox for retrofit siding construction. Vertical with clear cover. Siding Lap size 1/2"
SKU: #71470
Part: #DBVR141C
UPC: 018997143716
Description

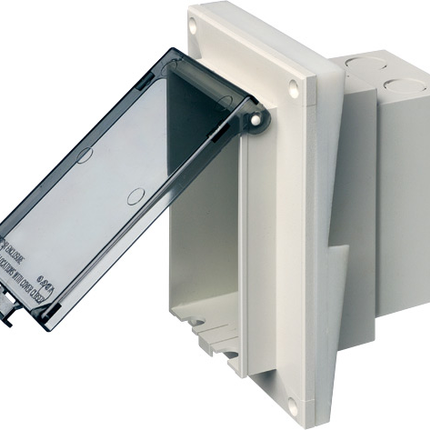

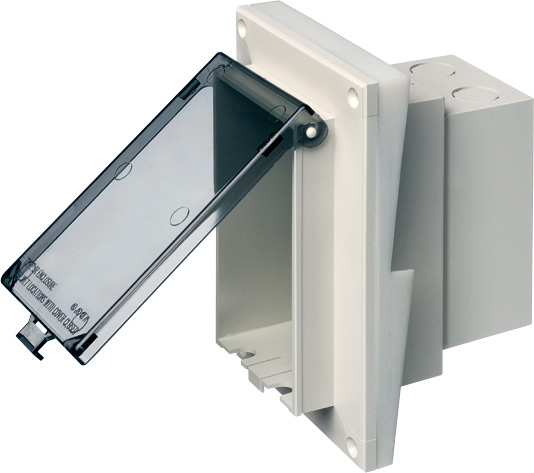

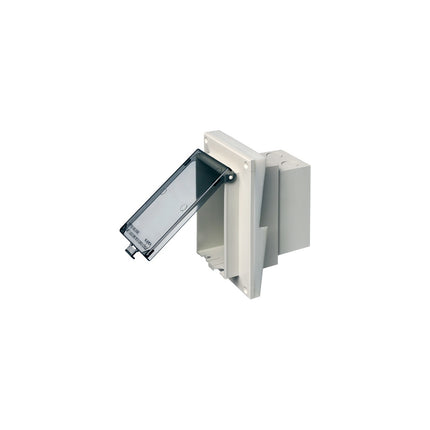

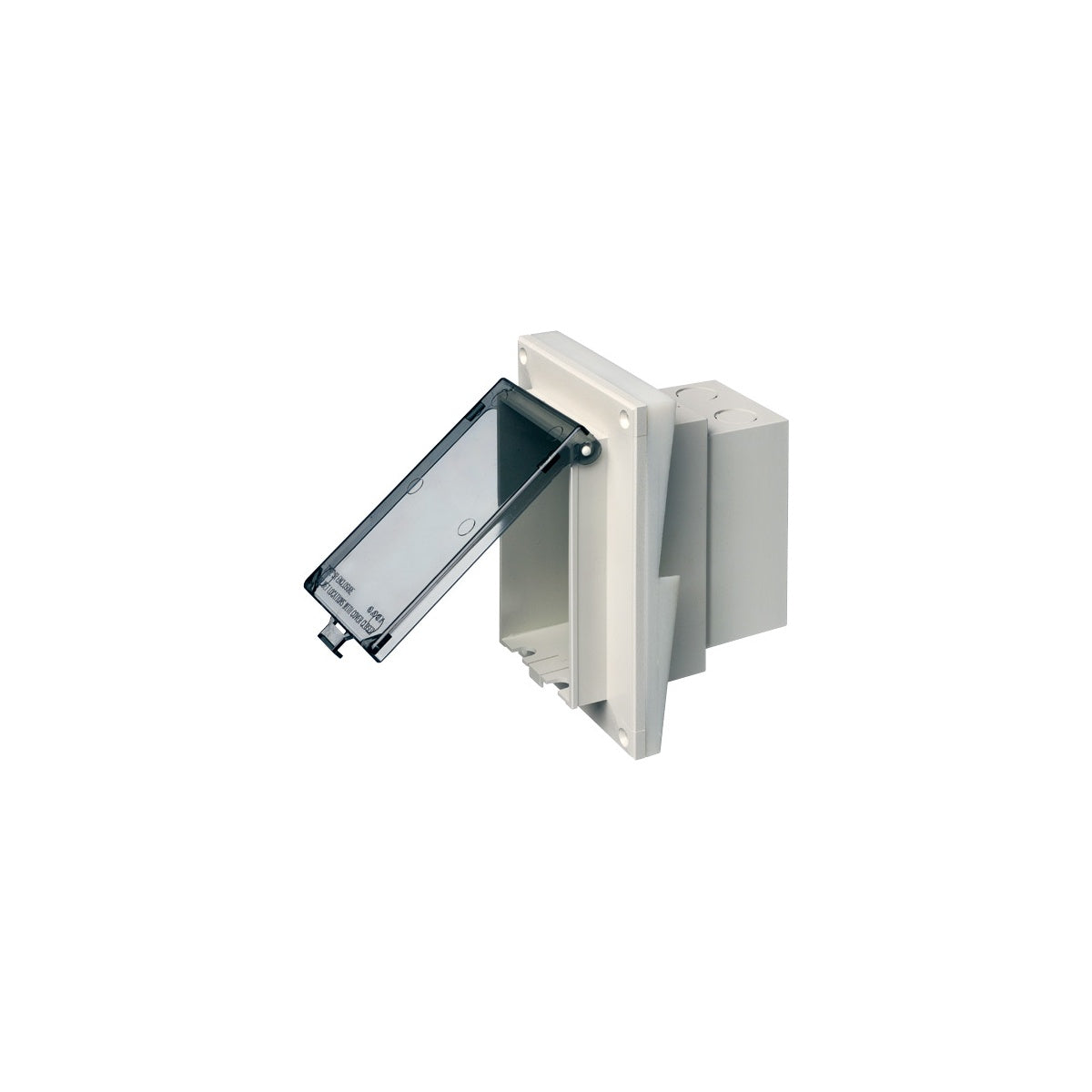

Low profile Inbox for retrofit siding construction - Weatherproof Electrical Box
The Low Profile IN BOX® by Arlington Industries is a recessed electrical box designed for retrofit siding construction applications. It features a weatherproof-in-use extra-duty cover suitable for outdoor installations, making it an ideal solution for electrical distributors and lighting solutions providers needing reliable wire and cable enclosures. Constructed from UV-rated plastic, it offers long outdoor life and accepts most single-gang wiring devices with compatibility for standard indoor wall plates or GFCI cover plates.
Specifications
- Manufacturer Part #: DBVR141C
- Color: White
- Material: UV-Rated Plastic
- Product Weight: 1.5640 lbs
- Siding Lap Size: 1/2"
- Orientation: Vertical
- Cover: Clear
- Dimensions: 7.186" (A) x 4.934" (B) x 5.160" (C) x 1.567" (D) x 3.539" (E)
- UPC: 018997143716
Features
- One-piece assembly replaces electrical box, siding block, and bubble cover
- Installs recessed in the wall for minimal exterior profile
- Removable cover for easier device installation
- No gaskets required
- Weatherproof-in-use extra-duty cover compliant with 2015 CEC Rule 26-702, NEMA 3R, and 2017 NEC 406.9(b)
- Includes installed bug plugs to seal unused cord hole openings
- Box and cover are textured and paintable
- Suitable for use with standard duplex and GFCI face plates
