Low profile Inbox for retrofit siding construction. Vertical with clear cover. Siding Lap size 1-1/4 or 5/16
SKU: #71458
Part: #DBVR131C
UPC: 018997143709
Low profile Inbox for retrofit siding construction. Vertical with clear cover. Siding Lap size 1-1/4 or 5/16
SKU: #71458
Part: #DBVR131C
UPC: 018997143709
Description

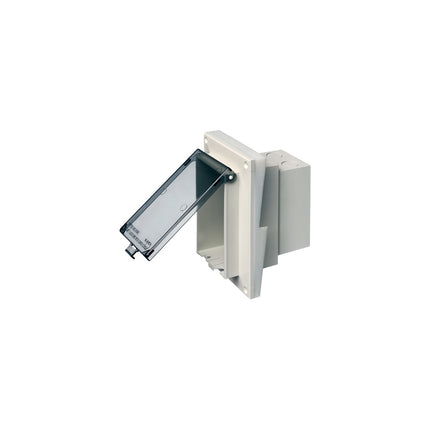

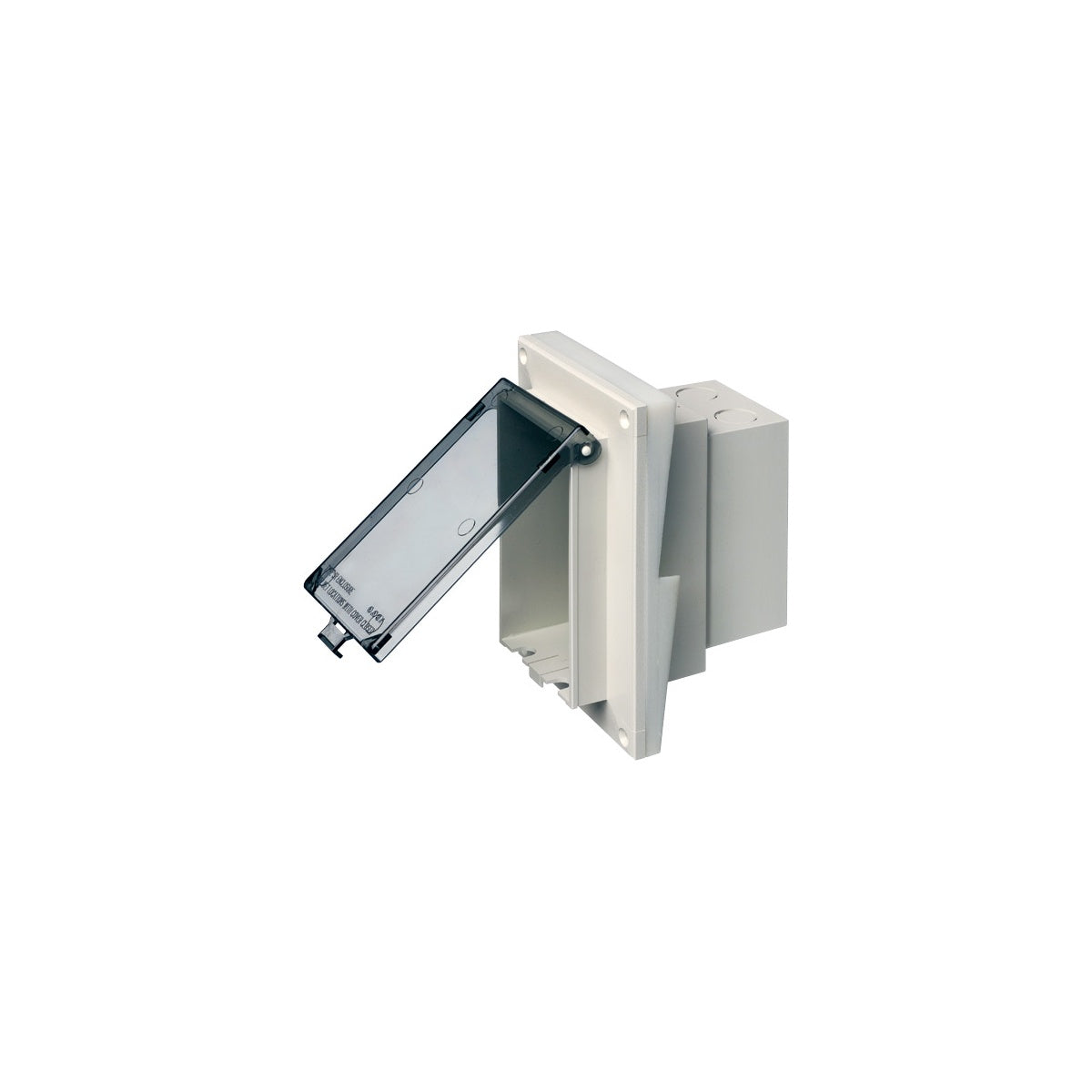

Low profile Inbox for retrofit siding construction - Weatherproof Electrical Box
The Low Profile IN BOX by Arlington Industries is a recessed electrical box designed for retrofit siding construction. It features a weatherproof-in-use, extra-duty clear cover suitable for outdoor applications. This non-metallic electrical box is made of UV-rated plastic for long outdoor durability and accepts most single-gang wiring devices using standard indoor wall plates or GFCI cover plates. It is ideal for electrical distributors and switchgear suppliers serving retrofit siding installations requiring reliable weather protection and compliance with electrical codes.
Specifications
- Manufacturer: Arlington Industries
- Manufacturer Part #: DBVR131C
- Color: White
- Material: UV-Rated Plastic
- Product Weight: 1.5360 lbs
- Siding Lap Size: 1/4" or 5/16"
- Orientation: Vertical with clear cover
- Volume: 22 cubic inches
- UPC: 018997143709
- Meets 2017 NEC Section 406.9 (B) and 2015 CEC Rule 26-702 for weatherproof-in-use covers
Features
- One-piece assembly replaces multiple components: electrical box, siding block, and bubble cover
- Recessed installation reduces exterior profile for a cleaner look
- Removable cover for easier device installation
- No gaskets required for weatherproof protection
- Includes installed bug plugs to seal unused cord hole openings
- Textured and paintable box and cover for aesthetic integration
- Comes with siding profile adapter plate, standard duplex and GFCI face plates, installation screws, NM cable connector, and caulk rolls
- Suitable for retrofit siding applications with 1/4" or 5/16" lap siding profiles
- UL and CSA listed
