Low profile inbox for foam wall systems - Weatherproof Electrical Box

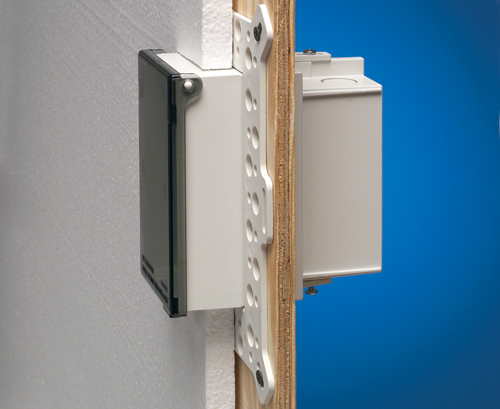

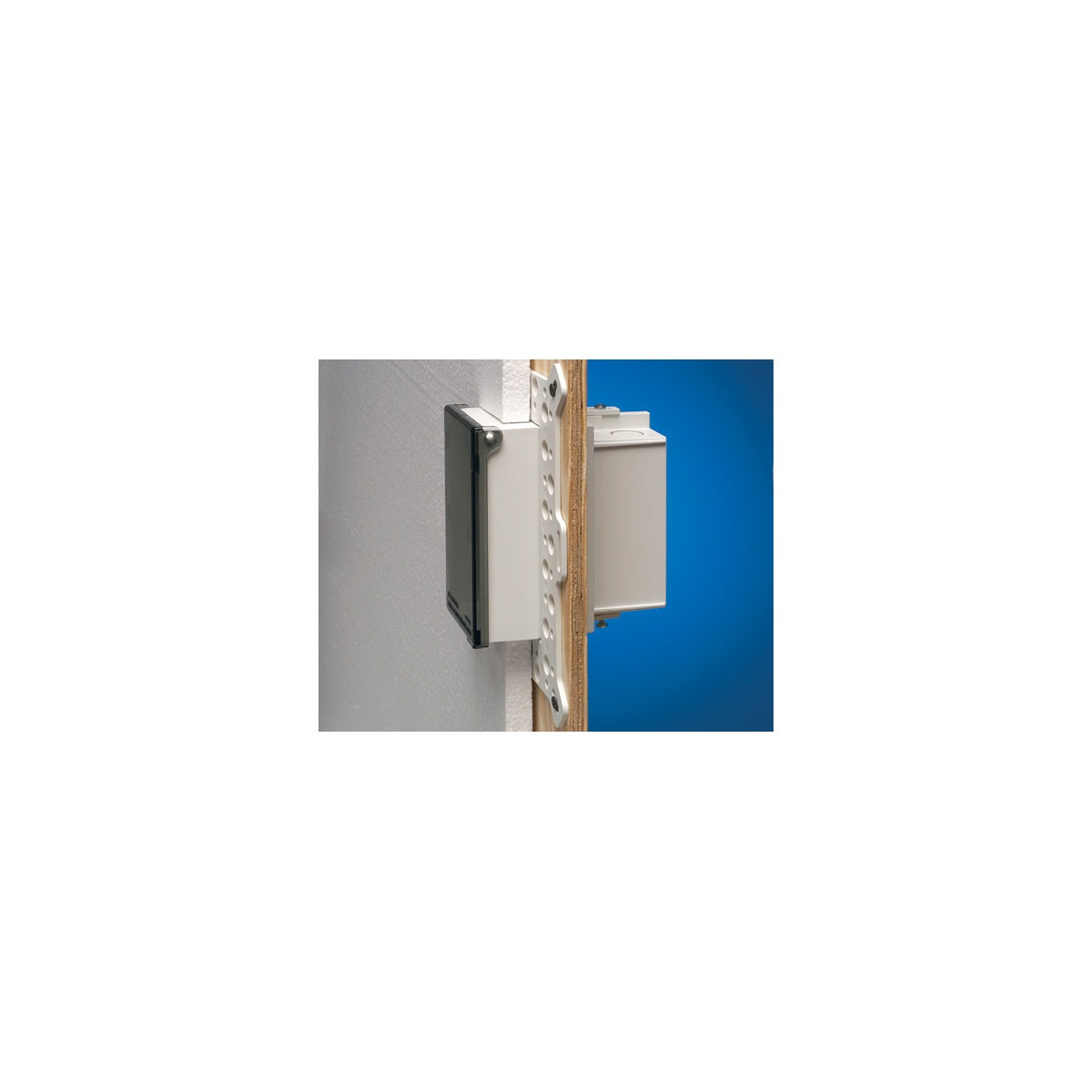

This recessed electrical box by Arlington Industries is designed for foam wall systems, providing a weatherproof, low-profile solution for outdoor electrical installations. It features an adjustable flange depth to accommodate foam board thicknesses from 2-3/4" to 5", making it suitable for varying wall and stucco finishes. The box accepts most single-gang wiring devices and uses standard indoor wall plates or GFCI cover plates. Constructed from UV-rated plastic, it ensures long outdoor life and durability. This product is ideal for electrical distributors and switchgear suppliers seeking reliable, code-compliant weatherproof solutions.

Specifications

• Manufacturer: Arlington Industries
• Manufacturer Part #: DBVMA1C
• Color: White
• Material: UV-Rated Plastic
• Product Weight: 1.33 lbs
• Adjustable Flange Depth: 2-3/4" to 5"
• Volume: 22 cubic inches
• UPC: 018997776327
• Orientation: Vertical
• Dimensions: 9.058" (A) x 7.012" (B) x 5.160" (C)
• Flange Depth Range: 0.25" to 5.00"
• UL Listed and CSA Certified
• Meets 2017 NEC Section 406.9 (B) and 2015 CEC Rule 26-702

Features

• One-piece assembly replacing electrical box and bubble cover installation
• Weatherproof-while-in-use extra-duty cover, clear and removable for easier device installation
• Adjustable flange depth fits any foam board thickness or custom stucco finish
• Non-metallic, textured, and paintable box and cover
• Installs recessed in the wall for a low-profile appearance
• No gaskets required
• Includes installed bug plugs to seal unused cord hole openings
• Complies with outdoor electrical safety codes for 15 or 20 AMP receptacles
• Includes standard duplex and GFCI face plates, installation screws, NM cable connector, and disposable mud cover
