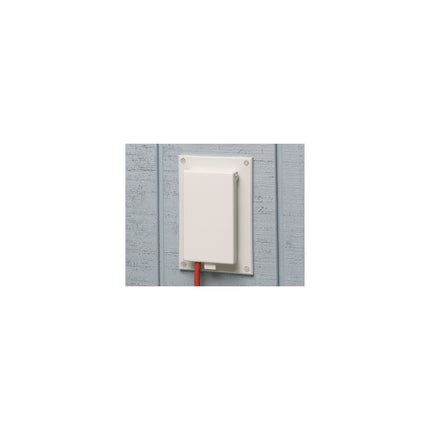

Low profile Inbox for flat surface retro fit construction - Weatherproof Electrical Box

This recessed electrical box by Arlington Industries is designed for flat surface retrofit construction, providing a low profile and weatherproof solution for outdoor electrical installations. It features a one-piece, 22.0 cubic inch non-metallic box with an extra-duty weatherproof-while-in-use white cover that is paintable and UV-rated for long outdoor life. The product is suitable for electrical distributors and lighting solutions providers seeking durable, code-compliant wire and cable enclosures with reliable weather protection. It accepts most single gang wiring devices and works with standard indoor wall plates or GFCI cover plates, making it ideal for retrofit applications on plywood, T-111, and other flat surfaces.

Specifications

• Manufacturer: Arlington Industries
• Manufacturer Part #: DBVR1W
• Material: UV-Rated Plastic
• Color: White
• Product Weight: 1.0940 lbs
• Volume: 22.0 cubic inches
• Orientation: Vertical
• Installation Type: Retrofit for flat surfaces
• UPC: 018997143143
• Compliance: Meets 2017 NEC Section 406.9(b) and 2015 CEC Rule 26-702 for outdoor weatherproof receptacles

Features

• One-piece assembly replaces traditional electrical box and bubble cover installation

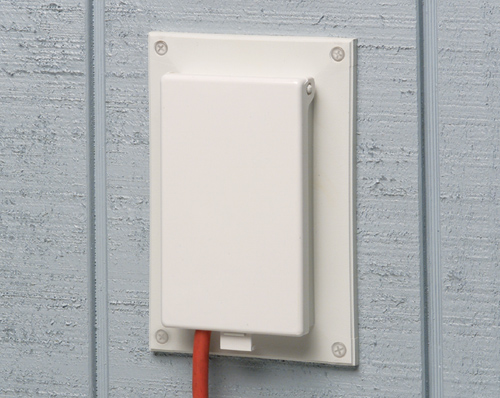

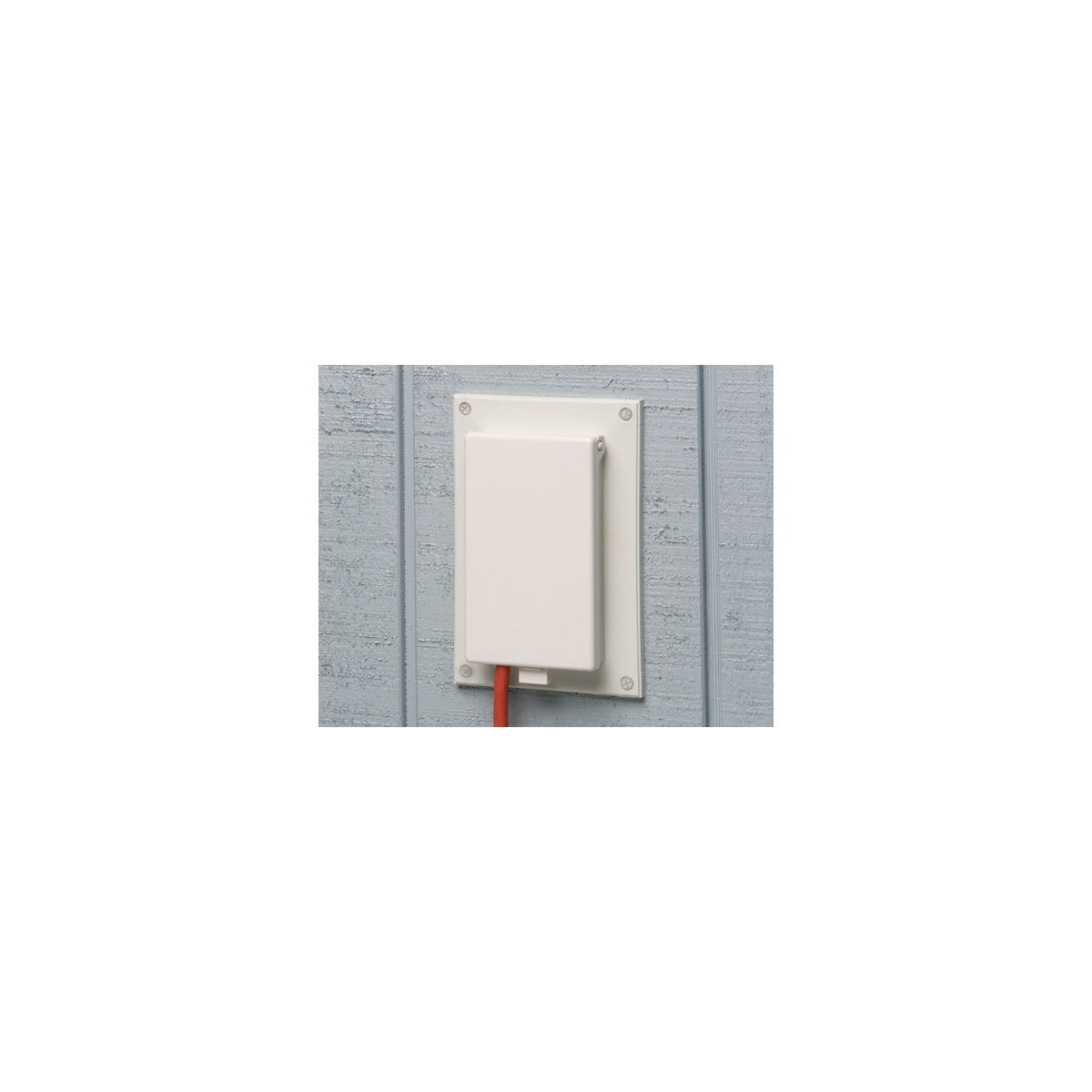

• Weatherproof-while-in-use extra-duty cover for outdoor protection
• Non-metallic, paintable white cover and box with textured finish
• UV-rated plastic construction for extended outdoor durability

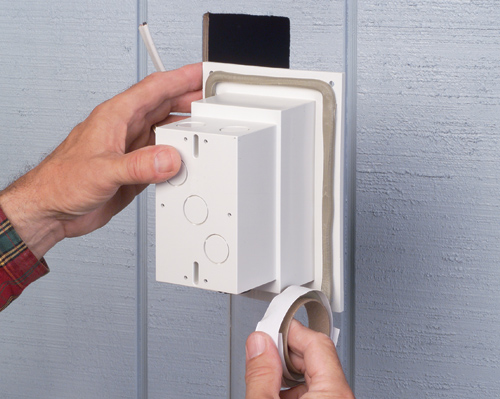

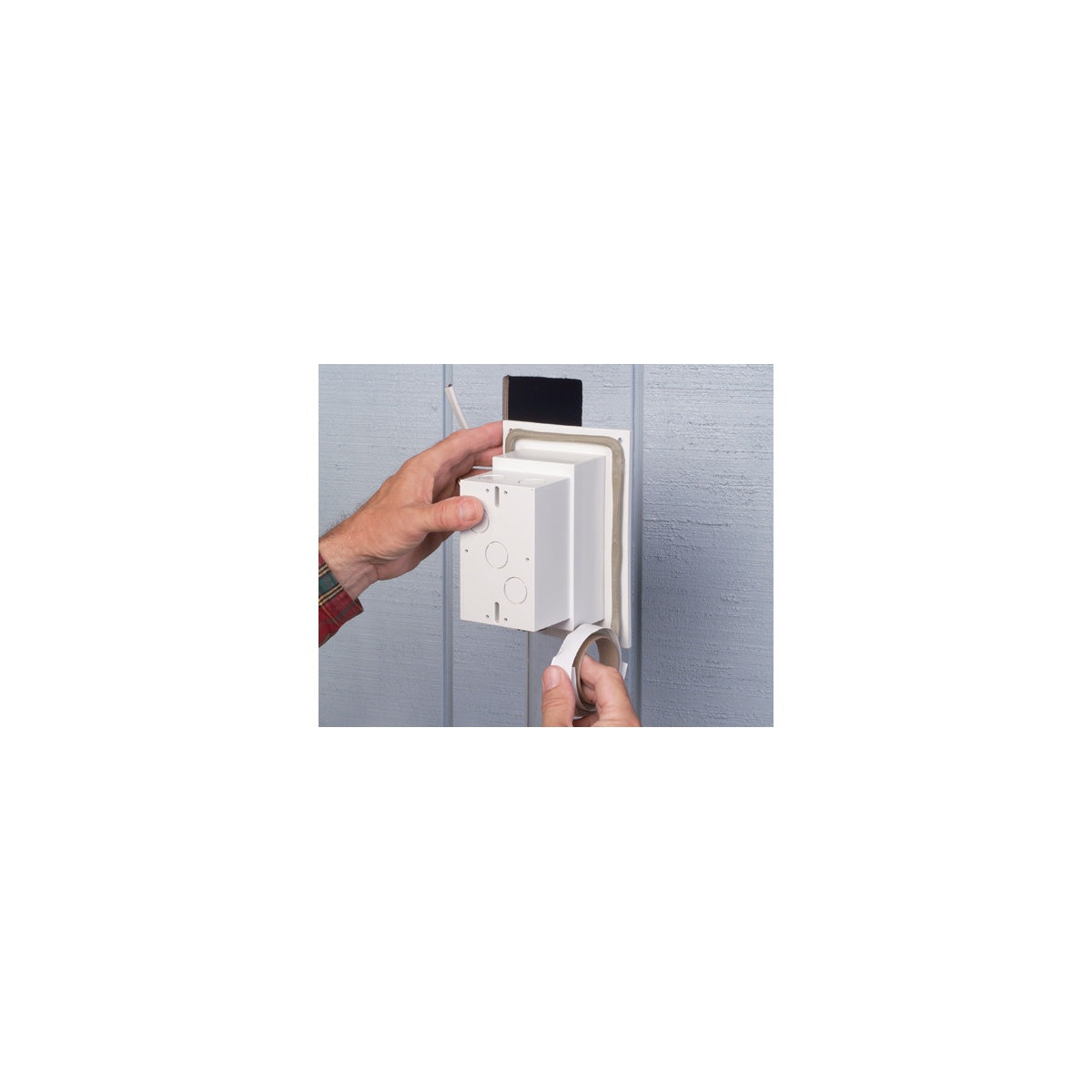

• Installs recessed in wall, reducing visible exterior profile
• Accepts most single gang wiring devices without requiring gaskets
• Includes installed bug plugs to seal unused cord hole openings
• Simple installation with supplied caulk, NM cable connector, and stainless steel screws
• Suitable for use on plywood, T-111, and other flat retrofit surfaces

Downloads & Links

• Catalog Page
• Specification Sheet
• DBVR1W Line Drawing
