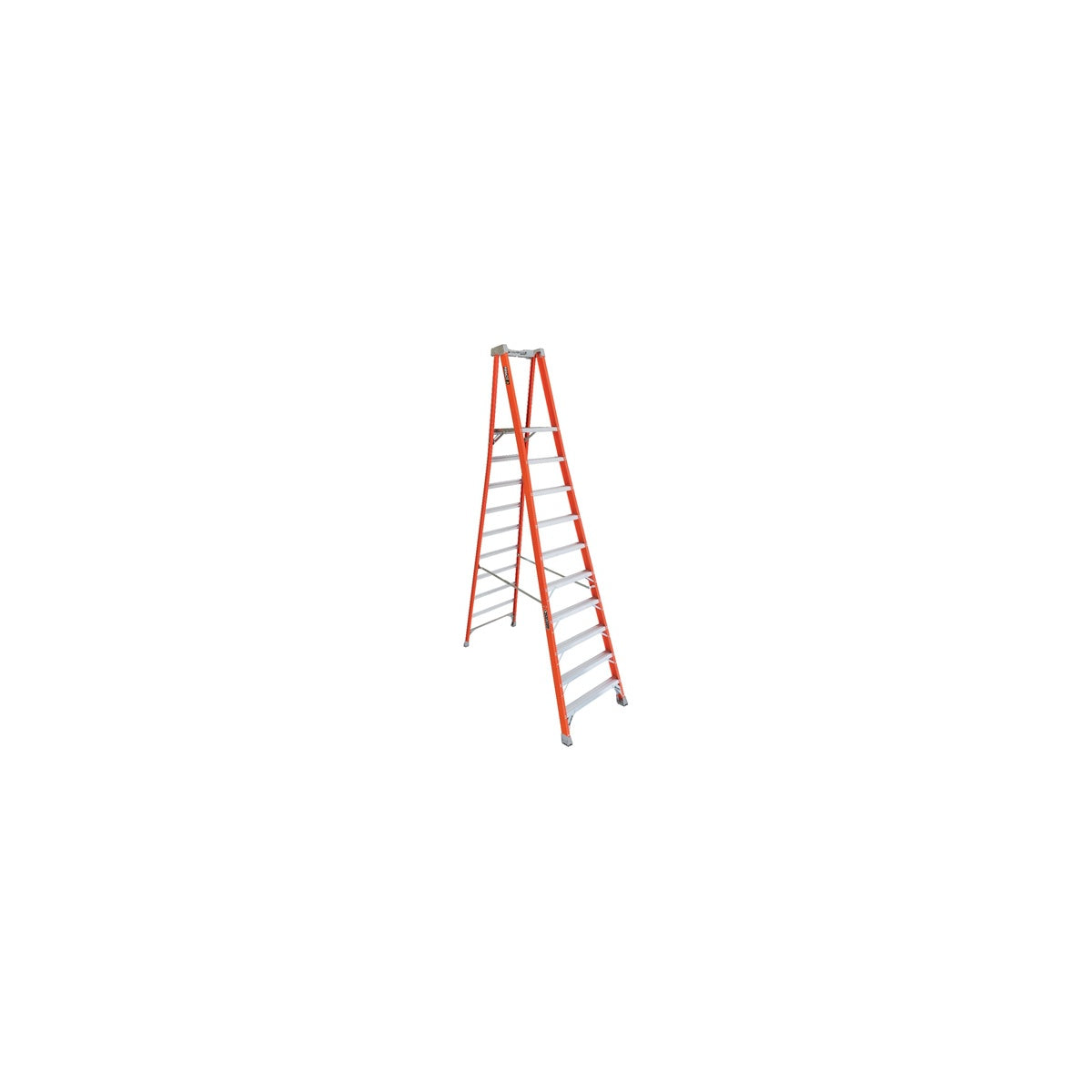

Louisville Ladder 10-Foot Fiberglass Pinnacle Pro Platform Ladder, Type IA, 300-pound Load Capacity, FXP1710

This Louisville Ladder FXP1710 is a 10-foot fiberglass platform ladder designed for professional use in electrical distribution, lighting solutions, wire and cable installation, and switchgear maintenance. It features a 300-pound load capacity rated ANSI Type IA, ensuring compliance with industry safety standards. The ladder offers a maximum reach of 170 inches and a comfortable 30% larger platform area, enhancing safety and user stability during tasks.

Specifications

• Material: Fiberglass
• Load Capacity: 300 pounds
• Duty Rating: Type IA
• Open Height: 144.5 inches
• Max. Reach: 170 inches
• Number of Steps: 10
• Closed Width: 33.8 inches
• Product Weight: 58.74 pounds

Features

• 30" extended handrail positioned at tool belt height for ease of use and added safety
• Innovative ProTop with multiple tool slots and magnet for convenient tool access
• SHOX impact absorption system to reduce shock and improve user comfort

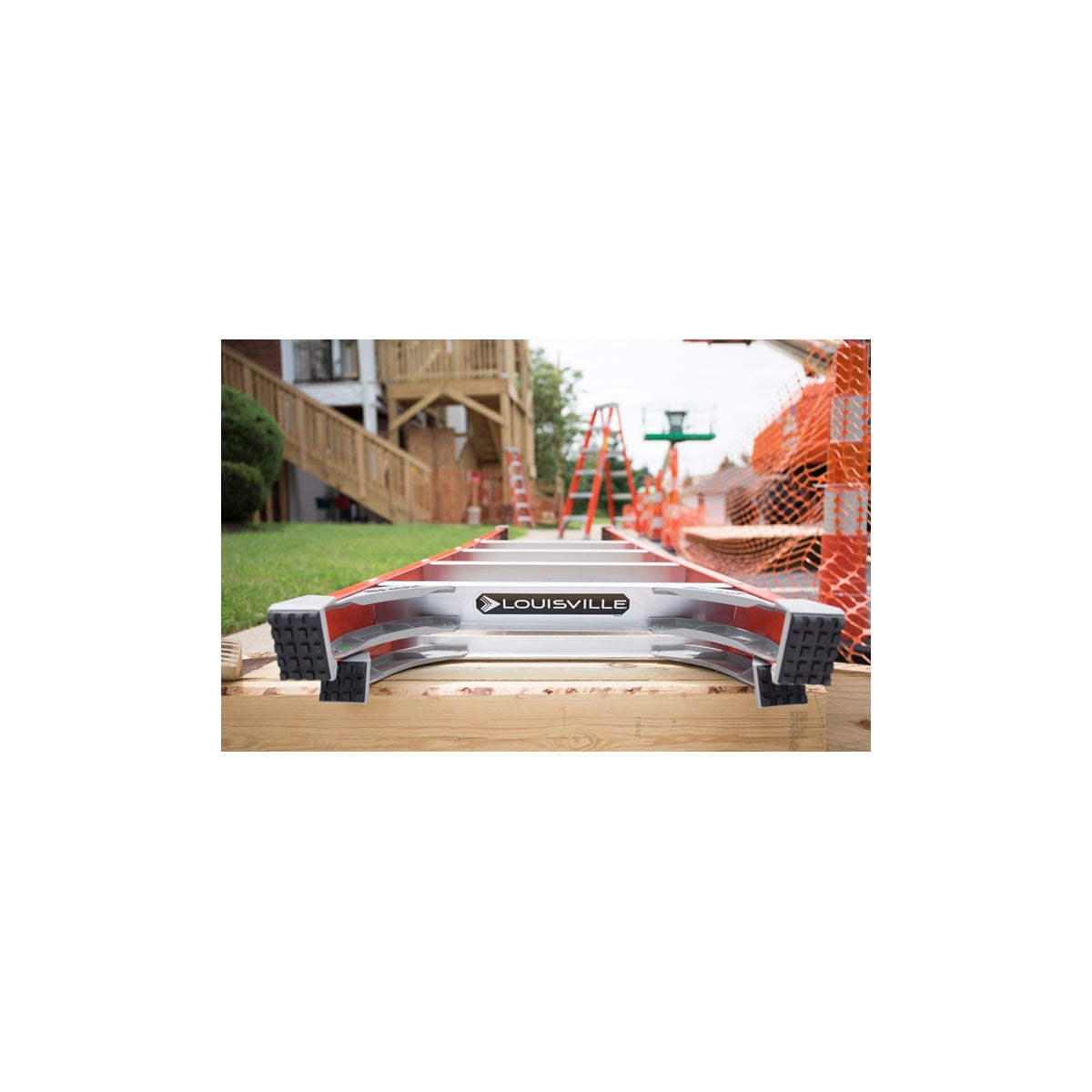

• Raptor boots with non-marring bonded tread mechanically fastened to the upper boot for secure, slip-resistant footing
• Wide back braces and double-rivet step construction for enhanced durability and stability
• Meets or exceeds ANSI and OSHA safety standards
