LOT3T65/D10 LED Area Light for Electrical Distributors

The LOT3T65/D10 is a specification-grade LED area light designed for roadway, general parking, and other large-area lighting applications. This product is engineered to provide a broad pool of light with an IES Type III distribution, making it suitable for electrical distributors and lighting solutions providers seeking reliable, energy-efficient outdoor lighting. It features a durable die-cast aluminum housing and clear acrylic lens, optimized for long-lasting performance in demanding environments.

Specifications

• Manufacturer: RAB
• Input Wattage: 62 watts
• Lumens: 8,531 lumens
• Efficacy: 136 lumens per watt
• Color Temperature: 5000 kelvins
• Color Accuracy: 76 CRI
• Lens Material: Clear Acrylic
• Product Weight: 20.9 lbs
• Ambient Temperature Rating: 104 °F
• Minimum Starting Temperature: -40 °C (-40 °F)

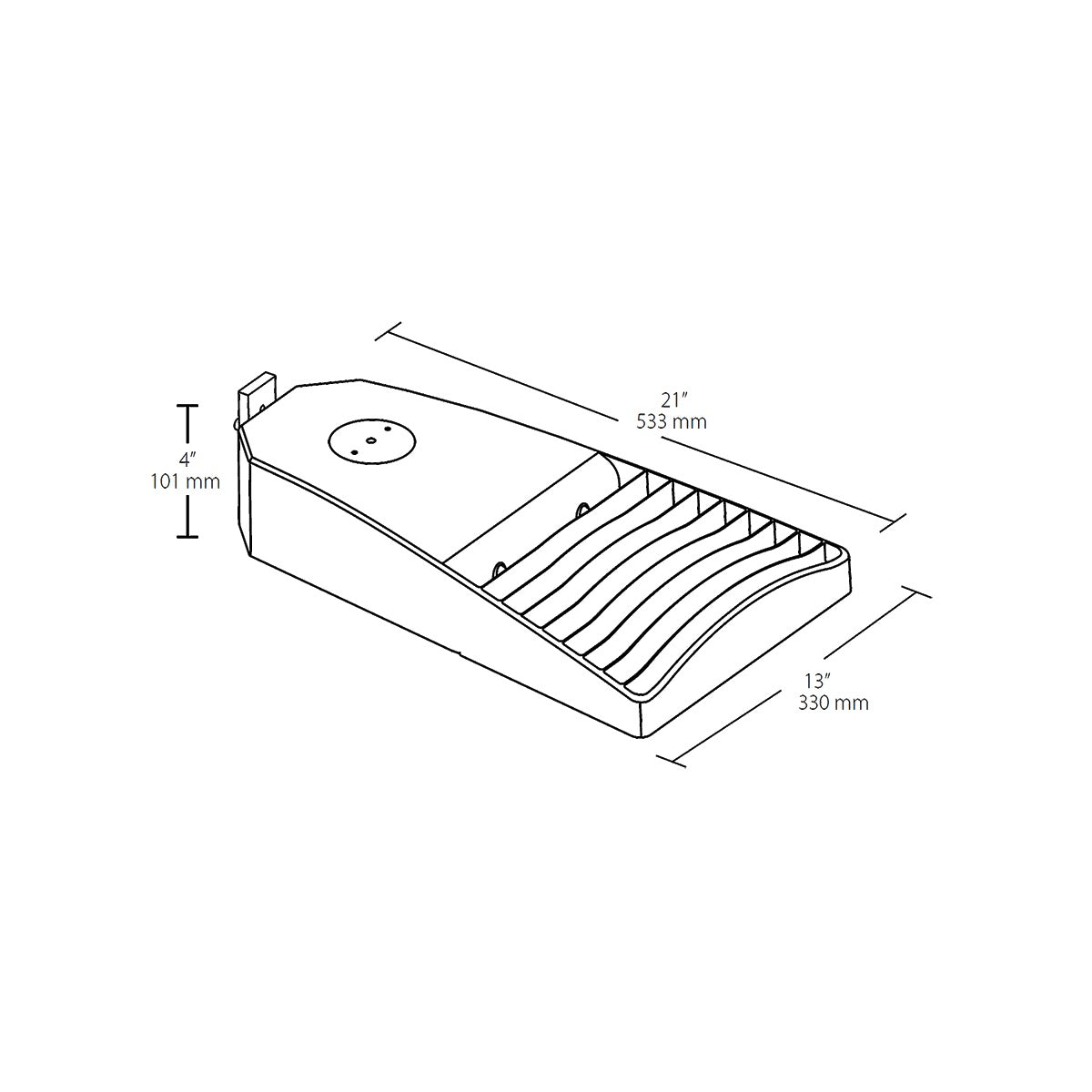

• Dimensions: 21" (533 mm) length x 13" (330 mm) width x 4" (101 mm) height
• Voltage: 120-277V, 50/60 Hz (0-10V dimmable driver)
• Vibration Rating: 5G per ANSI C136.31
• Ingress Protection: IP66 (dust and water resistant)
• LED Lifespan: 100,000 hours (L70)
• Mounting: Compatible with RAB square poles and universal pole adapter for square or round poles
• Certifications: UL Listed, DLC Qualified (DLC 5.1), RoHS compliant

Features

• Specification-grade Type III light distribution for wide-area illumination
• Precision die-cast aluminum housing with high-durability bronze finish
• Clear acrylic lens with integrated optics for optimal light control
• High efficacy LEDs delivering 136 lumens per watt for energy savings
• 0-10V dimmable driver enabling dimming down to 10%
• Industry-leading 5G vibration rating for durability in harsh environments
• Full cutoff optics compliant with dark sky requirements
• Suitable for wet locations with IP66 rating
• Mercury and UV free, RoHS-compliant components
• Lightweight design with low effective projected area (EPA = 0.8) to minimize pole load
• 5-year limited warranty covering fixture operation and finish
