LOT3T110/D10
SKU: #113405
Part: #LOT3T110/D10
UPC: 019813522531
LOT3T110/D10
SKU: #113405
Part: #LOT3T110/D10
UPC: 019813522531
Description
LOT3T110/D10 Area Light – High-Efficiency LED Lighting Solution
The LOT3T110/D10 is a specification-grade LED area light designed for roadway, general parking, and other large area lighting applications requiring a broad and uniform light pool. This product is suitable for electrical distributors and lighting solutions providers focusing on high-performance outdoor lighting. It features a Type III IES distribution, ideal for mounting near the side of an area to project light outward effectively. The fixture is engineered with durable materials and advanced optics to ensure longevity and reliable performance in demanding environments.
Specifications
- Manufacturer: RAB
- Model Number: LOT3T110/D10
- Input Wattage: 106 watts
- Lumens: 14,819 lumens
- Efficacy: 139 lumens per watt
- Color Temperature: 5000 kelvins (cool)
- Color Accuracy: 76 CRI
- Lens Material: Clear Acrylic
- Product Weight: 20.9 lbs
- Ambient Temperature Rating: Up to 104°F (40°C)
- Minimum Starting Temperature: -40°C (-40°F)
- Voltage: 120-277V, 50/60 Hz
- Driver Type: Constant Current, Class 2
- Dimming: 0-10V dimming down to 10% (requires separate dimming circuit)
- Vibration Rating: 5G per ANSI C136.31
- Ingress Protection: IP66 (dust and water resistant)
- Housing: Precision die-cast aluminum

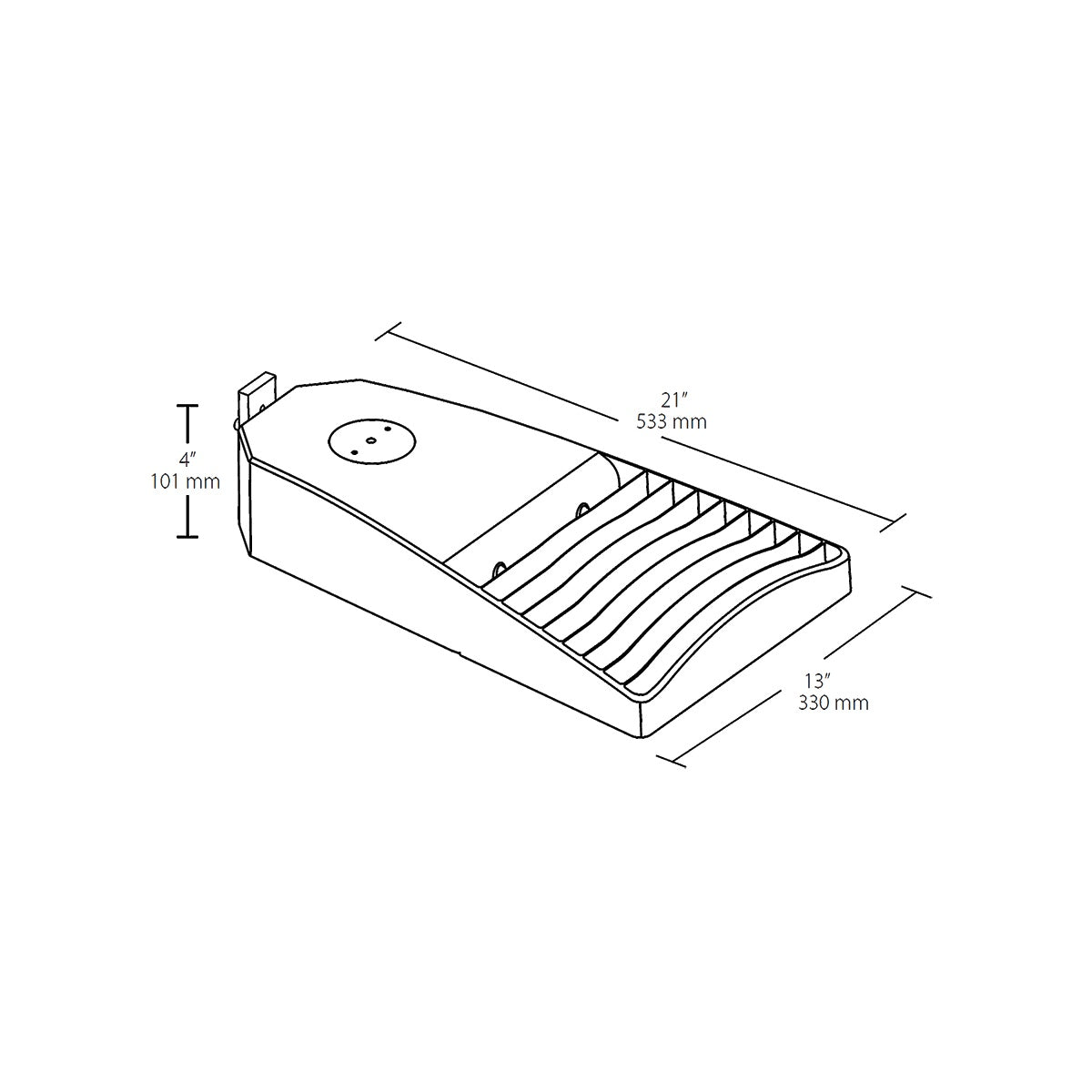

- Dimensions: 21" length x 13" width x 4" height (533 mm x 330 mm x 101 mm)
- IES Classification: Type III distribution
- L70 Lifespan: 100,000 hours
- Surge Protection: L-N 4kV; L-Earth 6kV
- Power Factor: 99.6% at 120V, 93.6% at 277V
- Total Harmonic Distortion (THD): 5.18% at 120V, 13.17% at 277V
- Finish: Bronze, formulated for high durability and long-lasting color
- Green Technology: Mercury and UV free, RoHS-compliant
- Equivalency: Equivalent to 400W Pulse Start Metal Halide
- Trade Agreements Act Compliant: Product of Cambodia, designated country end product
Features
- High-efficiency LEDs deliver 14,819 lumens at 139 lumens per watt
- Clear acrylic lens with integrated optics for optimal light distribution
- Full cutoff optics conform to dark sky requirements
- Lightweight design with low Effective Projected Area (EPA = 0.8) to minimize pole load
- Best-in-class 5G vibration rating ensures durability in harsh environments
- Compatible with RAB square poles and optional universal pole adaptor for round poles
- 5-year limited warranty covering fixture operation and paint finish
