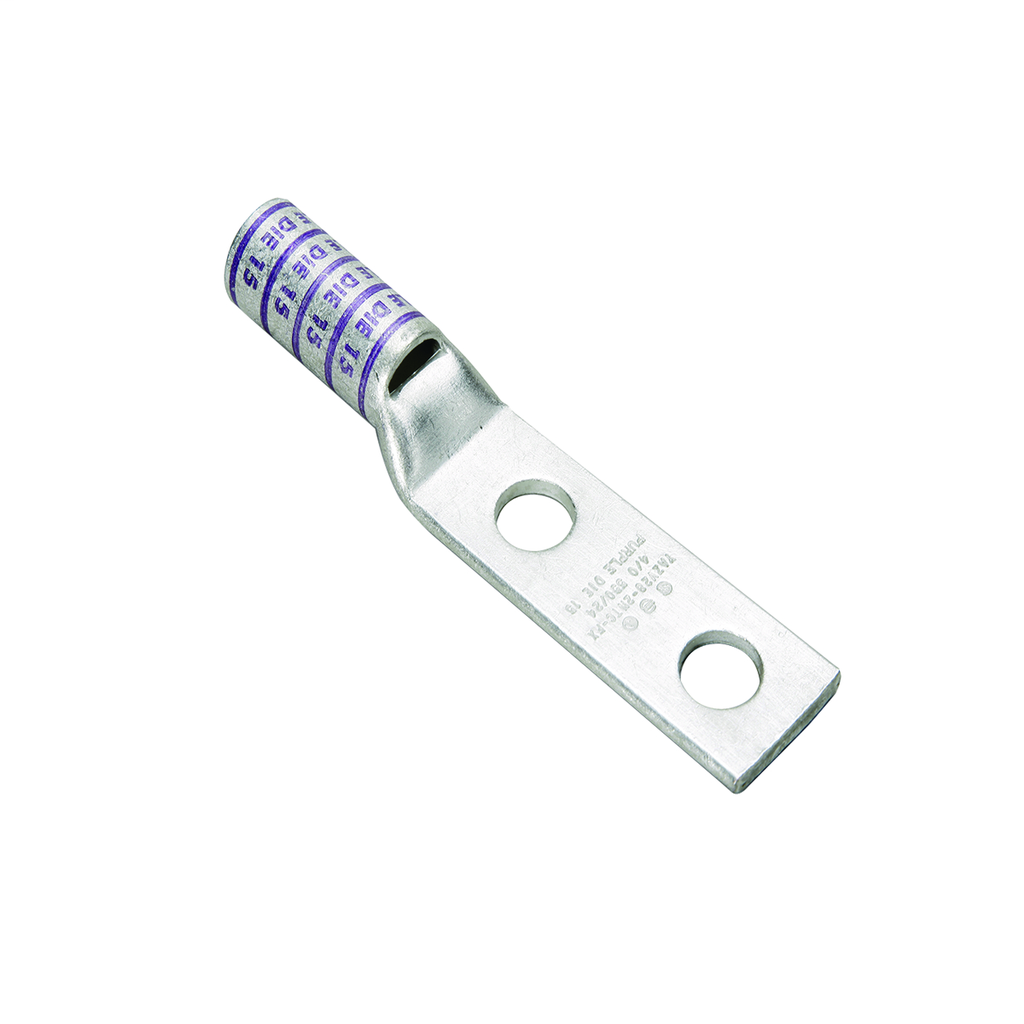

Long Length Barrel YAZ6C2N – Copper Wire Termination Terminal

The Long Length Barrel YAZ6C2N is a copper compression terminal designed for wire termination applications. It is suitable for use by electrical distributors and switchgear suppliers requiring reliable connections for #6 AWG copper conductors. This terminal supports voltage ratings up to 35,000 volts and complies with UL standards, making it appropriate for medium to high voltage electrical installations.

Specifications

• Material: Copper
• Conductor Size: 6 American Wire Gauge (AWG)
• Connection Type: Terminal
• Application: Wire Termination
• Color Coding: Blue
• Color Code: Blue
• Hole Size: 14 millimeters (0.56 inches)
• Number of Holes: 2
• Maximum Voltage: 35,000 volts
• Minimum Voltage Rating: 600 volts
• Temperature Rating: 90°C
• Finish: Electro Tin Plated
• Barrel Style: Skived
• Barrel Type: Long
• Tongue Angle: Straight
• Stud Size: 1/2 inch
• Overall Length: 4.40 inches (112 mm)
• UL Listed: Yes
• Industry Standards Met: UL468A-468B

Features

• Copper tubing with two holes and inspection window for secure compression connection
• Color-coded blue for easy conductor size identification
• Electro-tin plating for corrosion resistance and enhanced conductivity
• Designed for use with #6 AWG copper conductors in medium voltage applications
• Compatible with a variety of mechanical, hydraulic, and dieless crimping tools
• UL Listed to ensure compliance with electrical safety standards
• Temperature rating of 90°C suitable for demanding electrical environments
