Long Length Barrel YAZ362N
SKU: #332354
Part: #YAZ362N
UPC: 781810227961
Long Length Barrel YAZ362N
SKU: #332354
Part: #YAZ362N
UPC: 781810227961
Next day delivery
Description

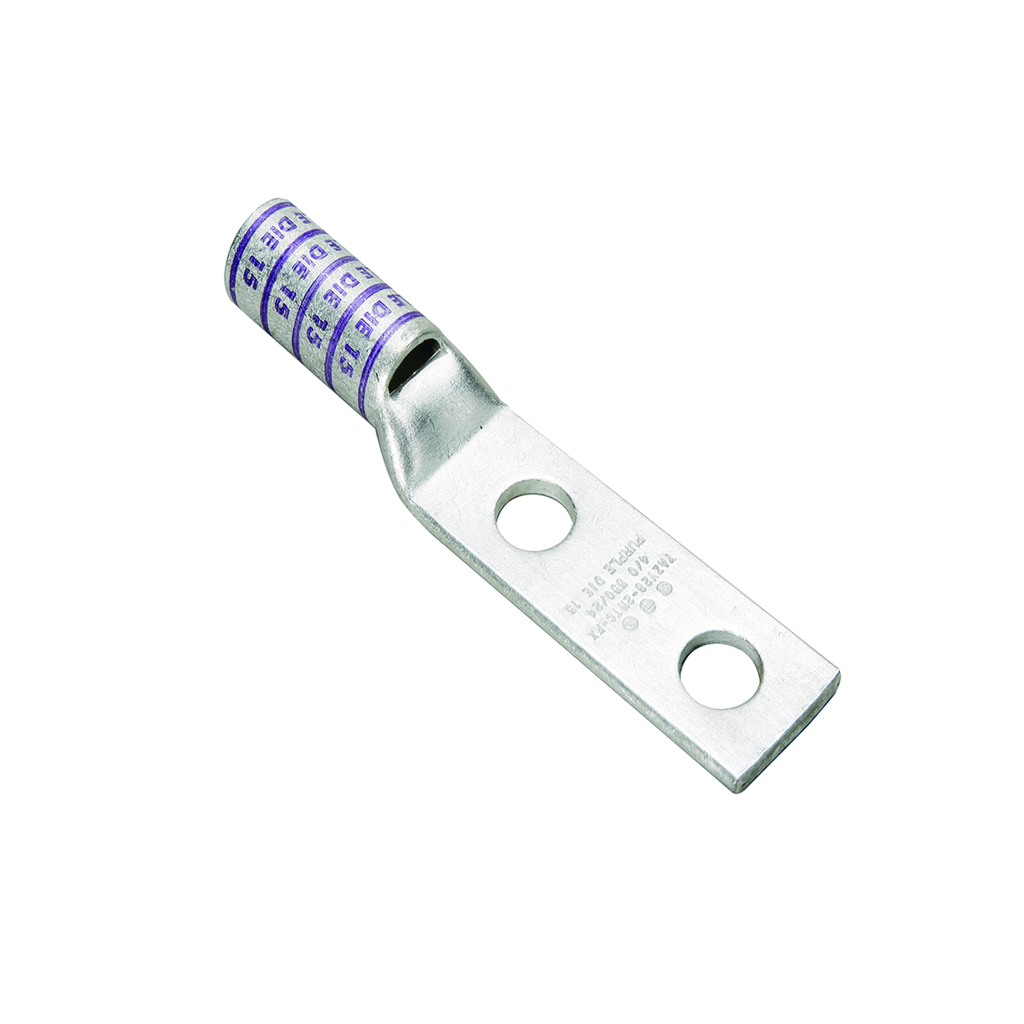

Long Length Barrel YAZ362N Copper Compression Lug
The Long Length Barrel YAZ362N is a copper compression lug designed for wire termination applications. It is suitable for electrical distributors and switchgear suppliers requiring reliable connections for wire and cable in lighting solutions and other electrical systems. The lug features a long, skived barrel with a tin electro-plated finish to ensure durability and corrosion resistance. It supports conductor sizes up to 600 kcmil and is rated for maximum voltages up to 35,000 volts, making it appropriate for medium to high voltage applications.
Specifications
- Application: Wire Termination
- Material: Copper
- Conductor Material: Copper
- Conductor Size: 600 kcmil
- Connection Type: Terminal
- Hole Size: 14 millimeters (0.56 inch)
- Number of Holes: 2
- Stud Size: 1/2 inch
- Stud Hole Spacing: 1-3/4 inch
- Barrel Style: Skived
- Barrel Type: Long
- Finish: Tin Electro-Plated
- Color Coding: Green
- Maximum Voltage: 35,000 volts
- Temperature Rating: 90°C
- Length Overall: 6.55 inches (166 mm)
- Pad Width: 1.74 inches
- Strip Length: 2-3/4 inches
- Tongue Angle: Straight
- Product Weight: 0.92 lbs
- Certification: CSA Approved, UL Listed
- Industry Standards Met: UL468A-468B
Features
- UL Listed for 90°C operation at voltages from 600 V to 35 kV
- Inspection window for secure crimp verification
- Electro-tin plating for corrosion resistance
- Available with 45° and 90° tongue angles (straight tongue standard)
- Compatible with a range of hydraulic and dieless crimping tools
- Color-coded green for easy identification
