Long Length Barrel YAZ262N
SKU: #374930
Part: #YAZ262N
UPC: 781810208571
Long Length Barrel YAZ262N
SKU: #374930
Part: #YAZ262N
UPC: 781810208571
Next day delivery
Description

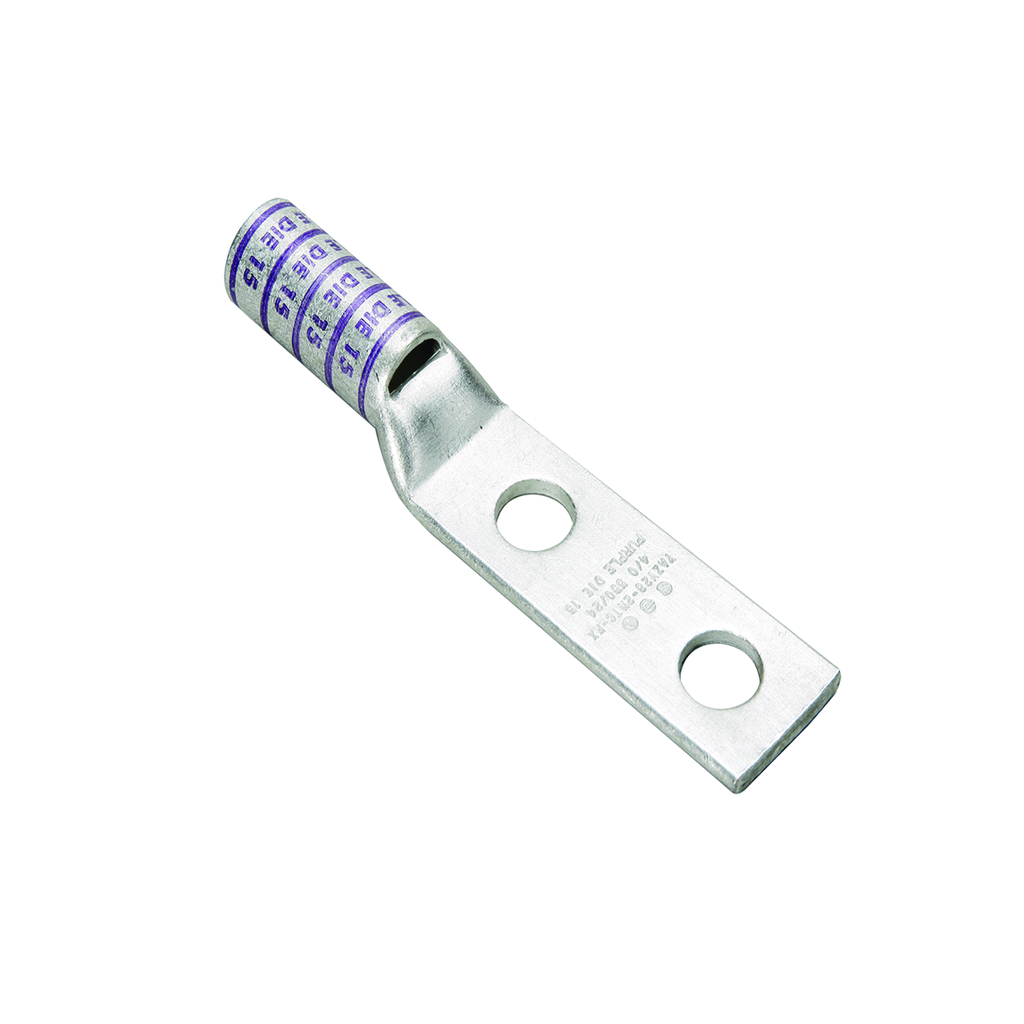

Long Length Barrel YAZ262N Copper Compression Lug
The Long Length Barrel YAZ262N is a copper compression lug designed for wire termination in electrical distribution systems. Suitable for use by electrical distributors and switchgear suppliers, this lug facilitates secure connections for 2/0 AWG copper conductors. It features a long barrel with a skived style and tin electroplating for enhanced conductivity and corrosion resistance. The product supports high-voltage applications up to 35,000 volts, making it ideal for heavy-duty wire and cable installations in lighting solutions and industrial electrical systems.
Specifications
- Application: Wire Termination
- Material: Copper
- Conductor Material: Copper
- Conductor Size: 2/0 American Wire Gauge
- Connection Type: Terminal
- Hole Size: 14 millimeters
- Color Coding: Black
- Max. Voltage: 35000 volts
- Product Weight: 0.1450 lbs
- Number of Holes: 2
- Barrel Style: Skived
- Barrel Type: Long
- Plating Type: Tin - Electro Plated
- Temperature Rating: 90°C
- Stud Size: 1/2 inch
- Stud Hole Spacing: 1-3/4 inch
- Length Overall: 4.95 inches (126 mm)
- Wire Strip Length: 1-9/16 inches
- UL Listed: Yes
- CSA Approved: Yes
- Industry Standards Met: UL 486A-486B
Features
- Inspection window for secure and verified wire insertion
- UL Listed for 600 V to 35 kV applications
- Supports 45° and 90° tongue angles (available options)
- Electro-tin plated finish for corrosion resistance
- Compatible with a wide range of mechanical and hydraulic crimping tools
- Standard tongue type for versatile installation
- Color-coded black for easy identification
