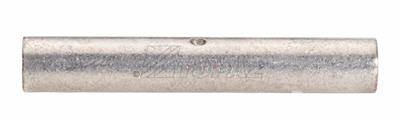

Long Barrel Compression Lug Splices, 3/0 Wire, Orange Color Code
SKU: #173520
Part: #3108
UPC: 751338410879
Long Barrel Compression Lug Splices, 3/0 Wire, Orange Color Code
SKU: #173520
Part: #3108
UPC: 751338410879
Next day delivery
Description
Long Barrel Compression Lug Splices, 3/0 Wire, Orange Color Code – Compression Lug Splices
Topaz Long Barrel Compression Lug Splices are designed for heavy duty electrical applications, providing reliable connections for 3/0 AWG wire sizes. Fabricated from seamless, high conductivity copper tubing and tin plated for corrosion resistance, these splices are suitable for use by electrical distributors and switchgear suppliers requiring durable wire and cable connections. The orange color code facilitates easy identification and compatibility in lighting solutions and electrical installations.
Specifications
- Material: Copper
- Connection: Compression
- Conductor Range: 3/0 AWG
- Amperage Rating: 486 AMP
- Color: Orange
- Product Weight: 0.0796 lbs
- Manufacturer: Southwire
- Manufacturer Part #: 3108
Features
- Seamless, high conductivity copper tubing suitable for heavy duty applications
- Tin plated to provide corrosion resistance
- Color coded for easy identification
- UL listed for safety and compliance
- Suitable for use at voltages up to 35 KV when properly taped
- Maximum 5 KV voltage rating for bare splice applications
