LOCKTITE CU 1HOLE LUG 14-8
SKU: #55076
Part: #31003
UPC: 786210310039
LOCKTITE CU 1HOLE LUG 14-8
SKU: #55076
Part: #31003
UPC: 786210310039
Next day delivery
Description

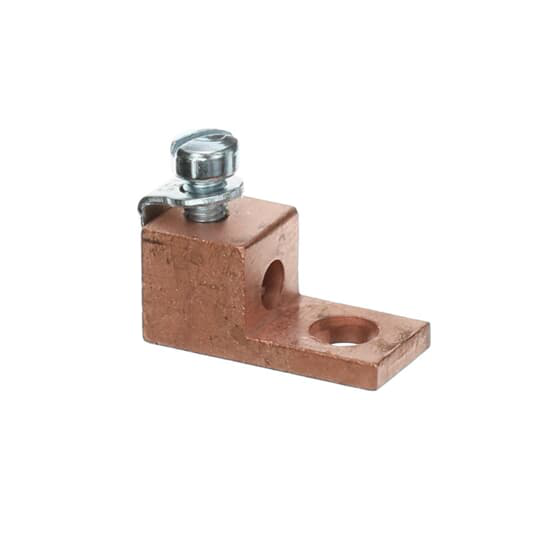

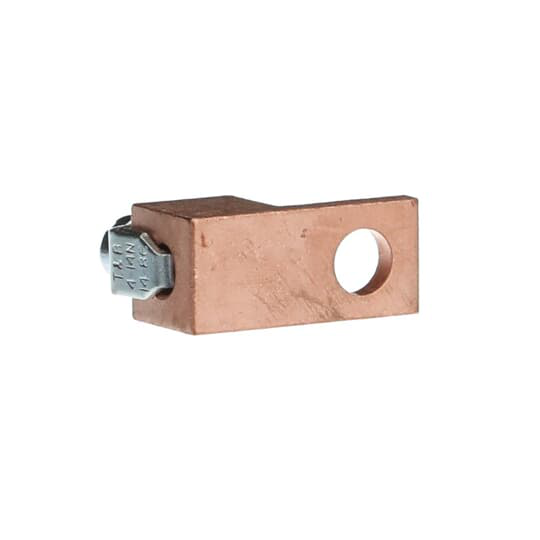

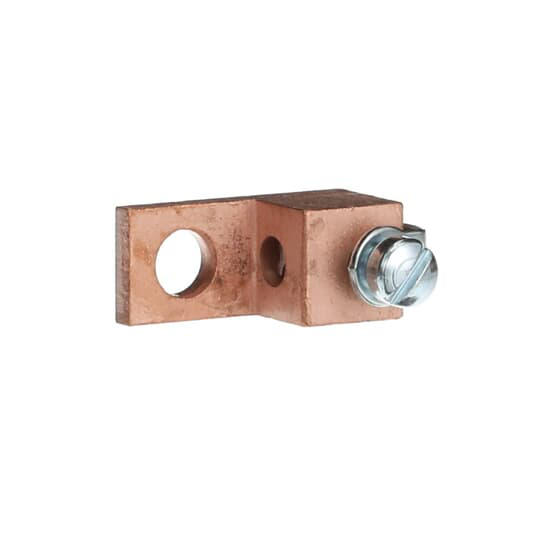

LOCKTITE CU 1HOLE LUG 14-8 Copper Mechanical Connector
The LOCKTITE CU 1HOLE LUG 14-8 is a copper mechanical connector designed for securely terminating copper conductors ranging from #14 to #8 AWG or 4 to 14 NAVY. It is suitable for use by electrical distributors and wire and cable suppliers requiring reliable, low-resistance connections in electrical installations. This lug facilitates effective electrical connectivity in lighting solutions and switchgear applications where code copper conductors (600 V) are used.
Specifications
- Conductor Range: #14 - #8 AWG or 4 - 14 NAVY
- Length: 1-1/8 inch
- Width: 1/2 inch
- Pad Thickness: 1/8 inch
- Pad Length: 9/16 inch
- Bolt Size: 1/4 inch
- Height: 15/32 inch
- Material: Copper
- Product Weight: 3.0000 (units not specified)
- Standards: UL E9809
- Manufacturer: Blackburn
- Manufacturer Part Number: 31003
- Country of Origin: Mexico
Features
- Easily installed with key wrench
- Saddle and cable socket provide direct, all-around, low-resistance contact with cable
- Convenient peephole permits easy inspection
- Designed for use with code copper conductor (600 V)
