Lockouts, 1-1/2-Inch Hasp, Interlocking Tabs – Electrical Lockout Tool

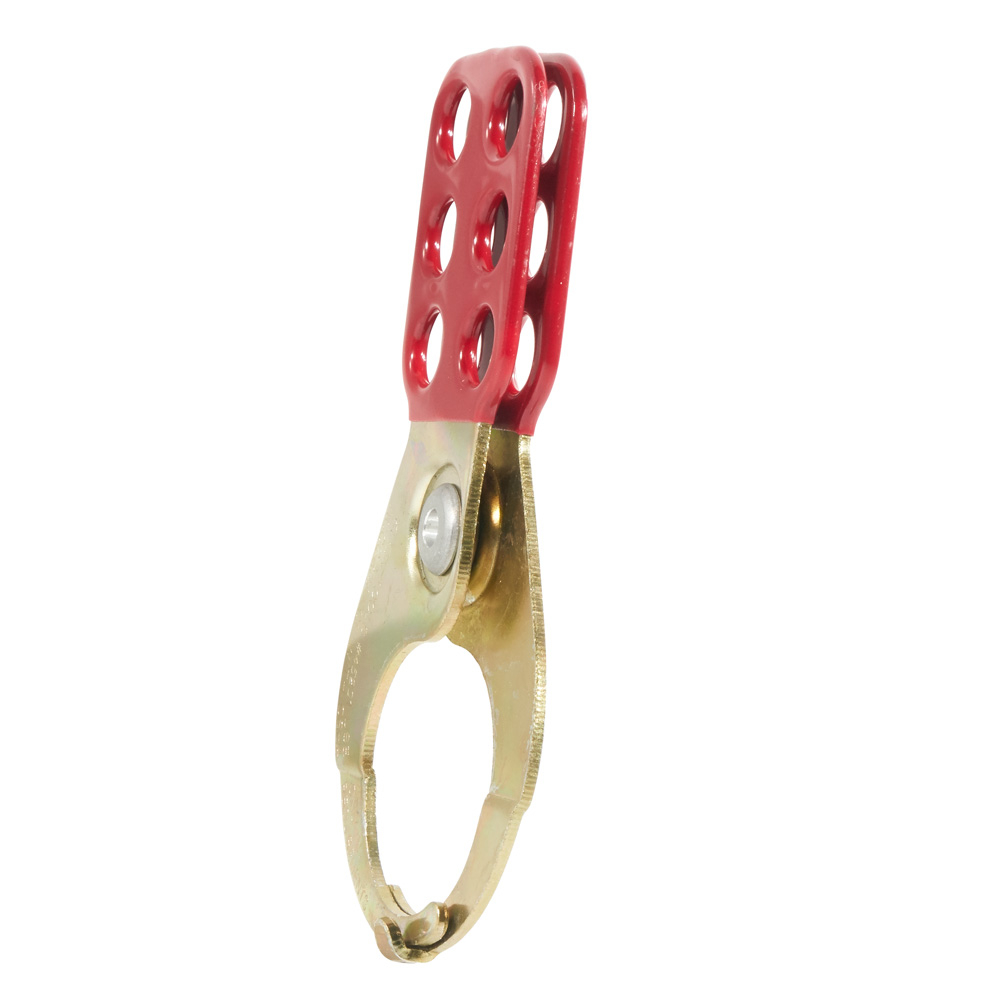

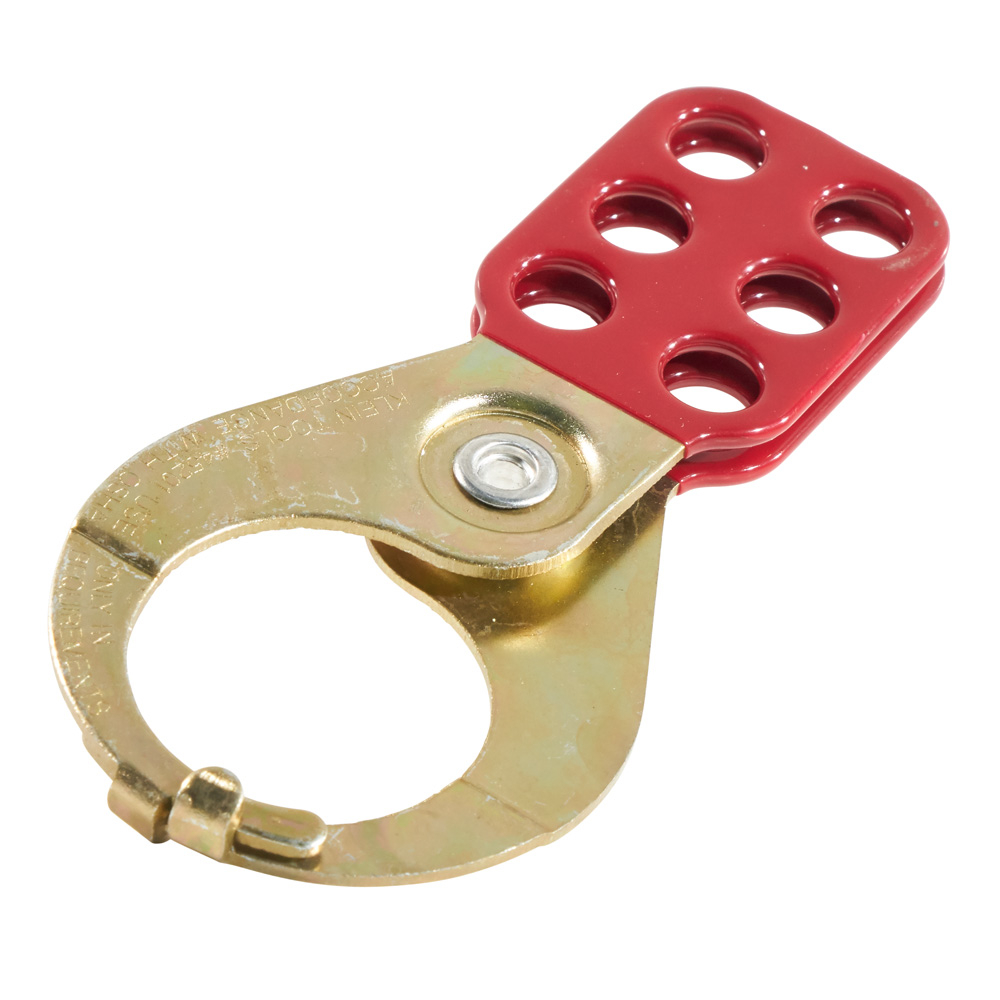

The Klein Tools Lockout with Interlocking Tabs is engineered to securely lock out power sources, including disconnects, switches, and panel boxes. This lockout device is ideal for electrical distributors, lighting solutions providers, wire and cable installers, and switchgear suppliers requiring reliable lockout/tagout safety equipment. Its design features zinc-plated double interlocking hasps made of tempered steel, providing enhanced security with patented interlocking tabs coated in red vinyl plastic.

Specifications

• Type: Lockout with Interlocking Tabs
• Application: Specifically designed for locking out power sources such as disconnects, switches, and panel boxes
• Special Features: Double interlocking hasp of tempered steel with patented interlocking tabs for extra security
• Overall Length: 8 inches (20.3 cm)
• Overall Height: 0.5 inches (1.3 cm)
• Overall Width: 1.5 inches (3.8 cm)
• Material: Tempered Steel
• Closed Hasp Inside Diameter: 1.5 inches (3.8 cm)
• Locking Holes: 6, coated in red vinyl plastic
• NEMA Color: Red
• Weight: 4.0 oz (113 g)

Features

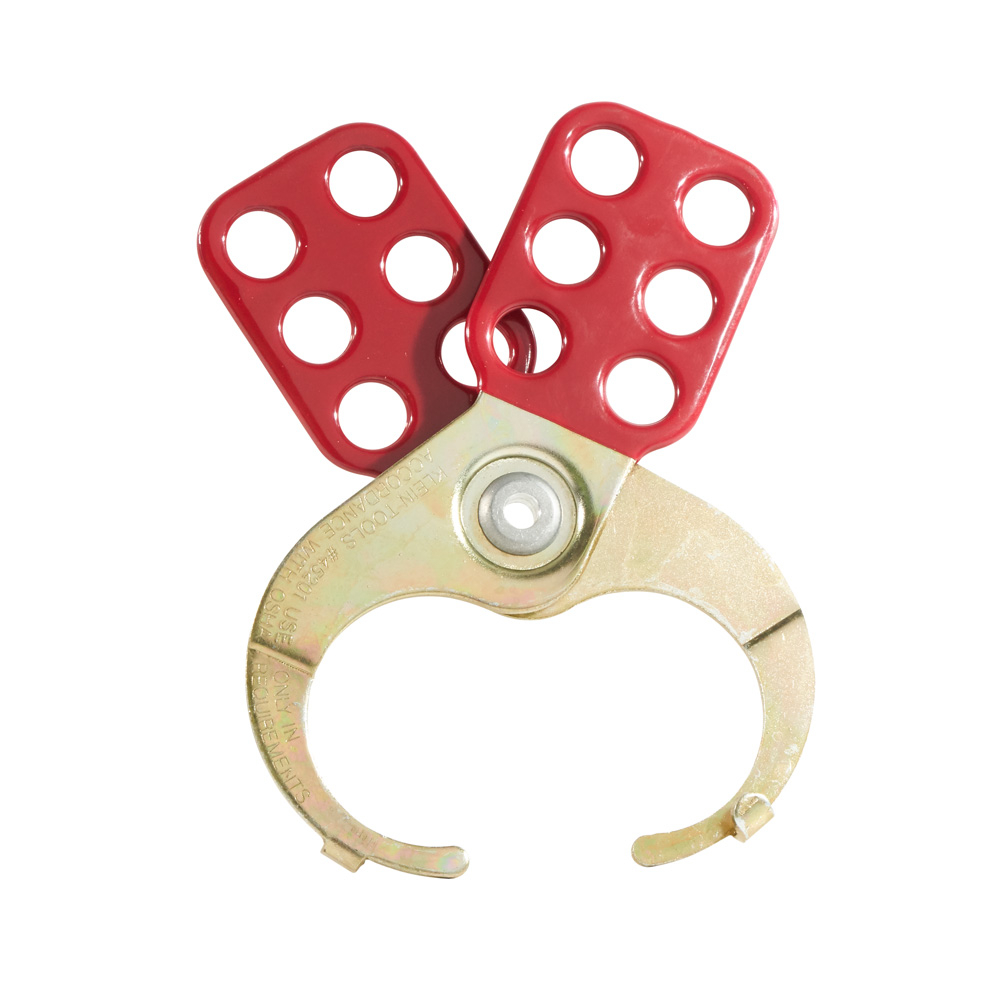

• Double interlocking hasps for enhanced locking security
• Tempered steel construction ensures durability and strength
• Red vinyl-coated tabs provide corrosion resistance and visibility
• Six-hole locking bodies allow multiple padlocks for group lockout applications
• Compact and lightweight design for ease of use and transport

Downloads and Links

• Klein Tools Lockout 45201 Specification Sheet (PDF)
• Installation and Usage Instructions (PDF)
