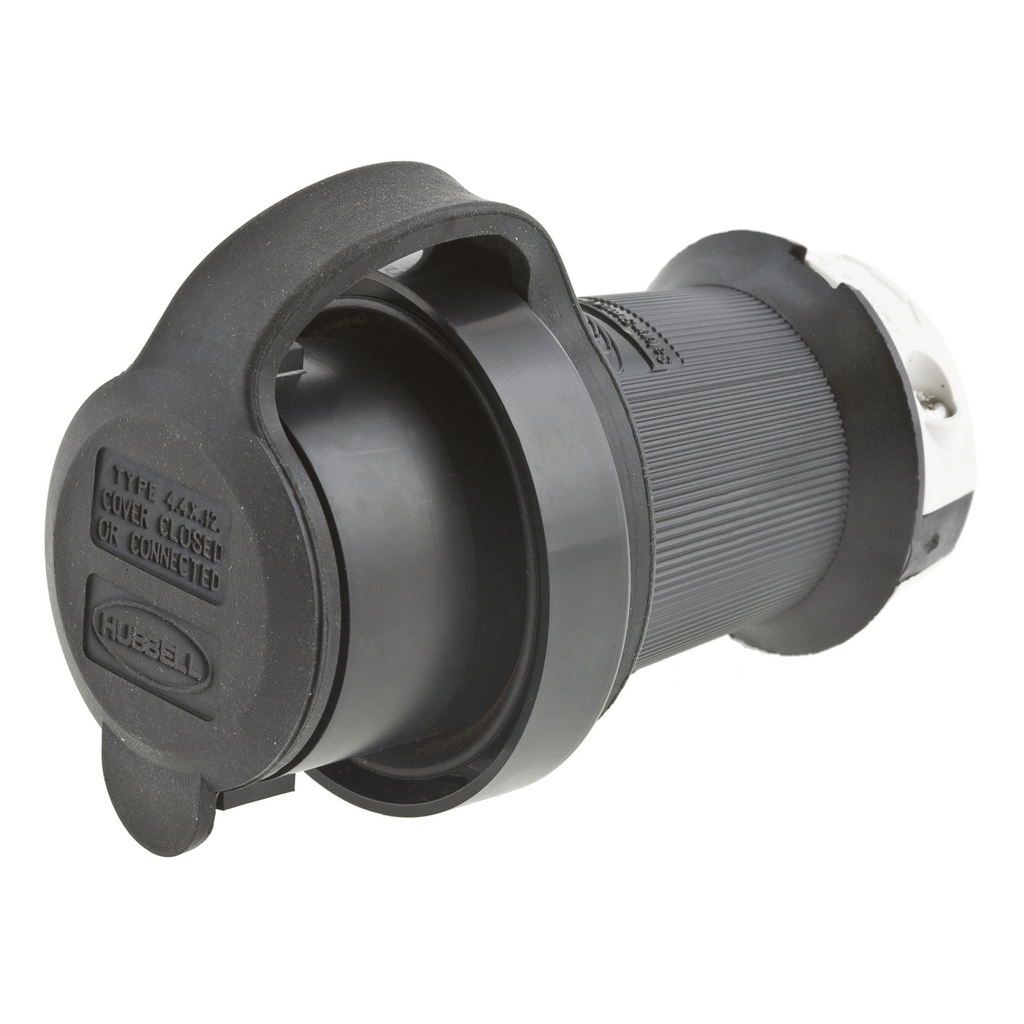

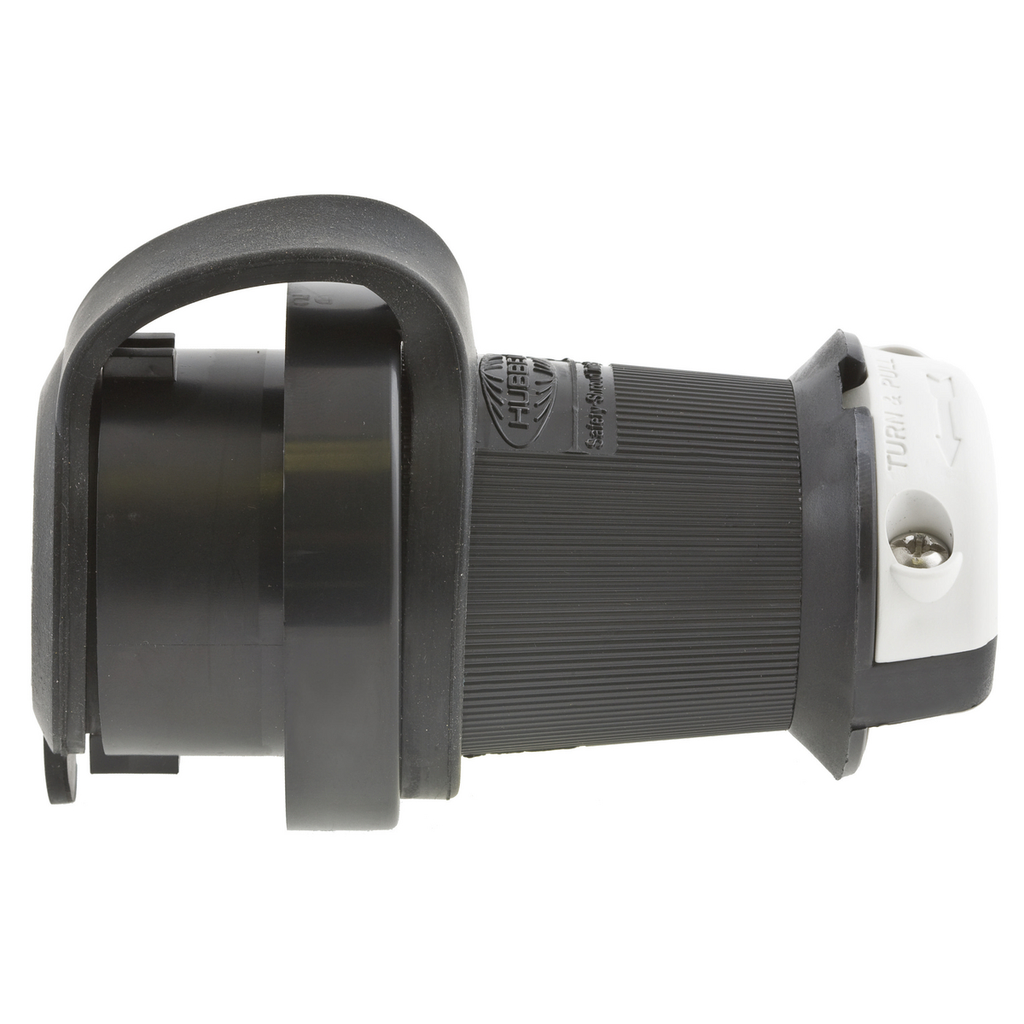

Locking Devices, Twist-Lock® Watertight Safety Shroud Male Plug 20A 3-Phase Wye 120/208V AC NEMA L21-20P

This locking device is a watertight Twist-Lock® male plug designed for extra heavy duty industrial applications. It supports 20 amperes current at 120/208V AC in a 3-phase Wye configuration with 4 poles and 5 wires including grounding. The plug features a Safety-Shroud® design that reduces the risk of inadvertent contact and exposure to arcing during connection or disconnection of energized devices. It is cord mounted and uses screw terminal connections, suitable for all listed portable cords. The device is made of composite materials with black PBT housing and white PBT clamps, ensuring durability and watertight environmental protection. Manufactured in the USA by Hubbell Wiring Device-Kellems, it complies with NEMA L21-20P standards and is rated for 2 horsepower loads.

Specifications

• Application: Extra Heavy Duty Industrial
• Amperage: 20 amperes
• Current: 20 amperes
• Voltage: 120/208V AC
• Number of Poles: 4-Pole
• Number of Wires: 5-Wire
• NEMA Rating: L21-20P
• Mounting: Cord Mounted
• Connection: Terminal Screws
• Material: Composite
• Environmental Conditions: Watertight
• Width: 4.000 in
• Horsepower: 2 horse power
• Product Weight: 0.7500 lbs
• Made in USA: Yes

Features

• Watertight Safety-Shroud® design reduces exposure to energized blades and arcing during connection and disconnection
• Compatible with Hubbell's mechanical interlock (HBLMITL) for secure locking with Safety-Shroud® receptacles
• Closure cap provides Type 4, 4X, and 12 ratings when closed or connected to equivalent Safety-Shroud® connectors
• Accepts 3/16 inch padlock shackle for OSHA Lockout/Tagout compliance
• Suitable for use with all listed portable cords ranging from .350" to 1.150" diameter
• Durable black PBT housing with white PBT clamps for industrial environments
