Locking Devices, Twist-Lock®, Watertight Safety Shroud, Female Connector Body, 20A 3-Phase Delta 480V AC, 3-Pole 4-Wire Grounding, L16-20R, Screw Terminal, Black and White
SKU: #142527
Part: #HBL2433SW
UPC: 783585231464
Locking Devices, Twist-Lock®, Watertight Safety Shroud, Female Connector Body, 20A 3-Phase Delta 480V AC, 3-Pole 4-Wire Grounding, L16-20R, Screw Terminal, Black and White
SKU: #142527
Part: #HBL2433SW
UPC: 783585231464
Description

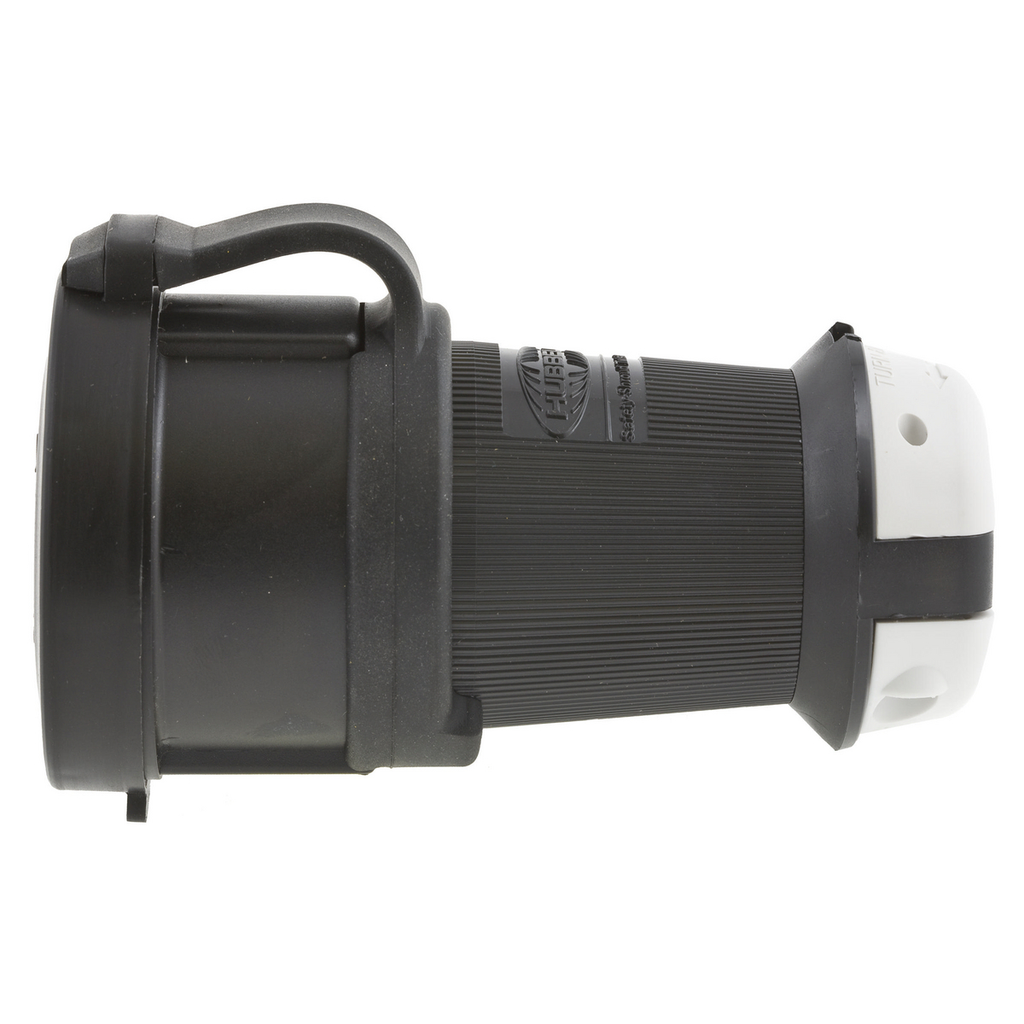

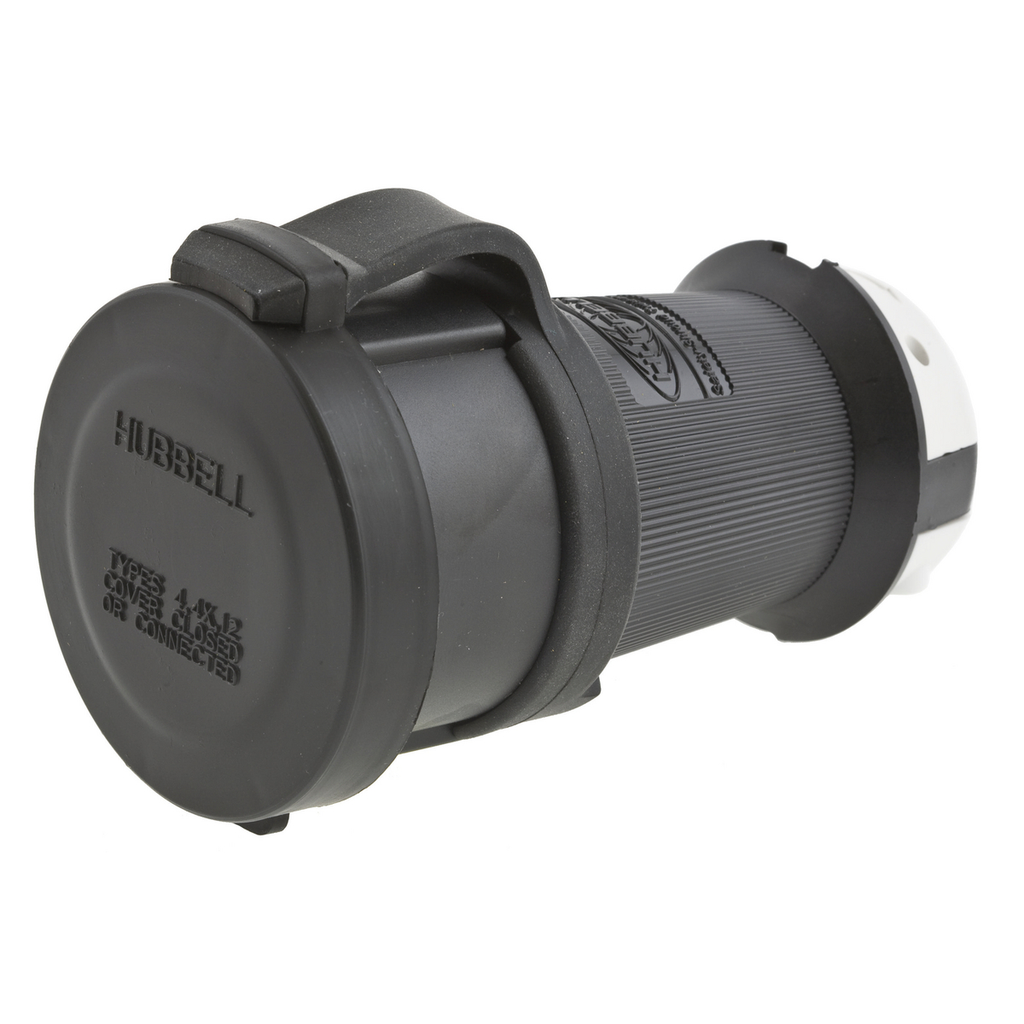

Locking Devices, Twist-Lock® Watertight Safety Shroud Female Connector Body 20A 3-Phase Delta 480V AC
This locking device is designed for heavy duty industrial applications, providing a secure and watertight connection for 20 ampere, 3-pole, 4-wire grounding electrical systems. Suitable for use in demanding environments, it features a Twist-Lock® mechanism with a watertight safety shroud to ensure durability and safety in wet and corrosive conditions. Ideal for electrical distributors, lighting solutions, wire and cable installations, and switchgear suppliers requiring reliable connections rated at 480V AC.
Specifications
- Manufacturer: Hubbell Wiring Device-Kellems
- Manufacturer Part #: HBL2433SW
- Application: Heavy Duty Industrial
- Amperage Rating: 20 amperes
- Current: 20 amperes
- Voltage: 480V AC (3-Phase Delta)
- Number of Poles: 3-Pole
- Number of Wires: 4
- Number of Conductors: 4-Wire Grounding
- NEMA Rating: L16-20R
- Connection Type: Pressure Screw Terminal
- Conductor Range: #12 AWG to #10 AWG
- Material: Composite
- Color: Black, White
- Mounting: Cord Mounted
- Insulation: Insulated Body
- Horsepower Rating: 5 HP
- Width: 3.8 in
- Product Weight: 0.65 lbs
- Country of Origin: United States
- Made in USA: Yes
- Environmental Conditions: Watertight
Features
- Watertight Safety-Shroud® design for superior protection against water ingress
- Twist-Lock® mechanism prevents unintentional disconnects
- Composite housing with black PBT body and white PBT clamps for chemical and impact resistance
- Screw terminal connection ensures secure and reliable wiring
- Designed to withstand harsh industrial environments including wet and corrosive conditions
- Complies with NEMA L16-20R standards for 3-phase, 4-wire grounding applications
- Suitable for heavy duty industrial use, supporting up to 5 horsepower motors
