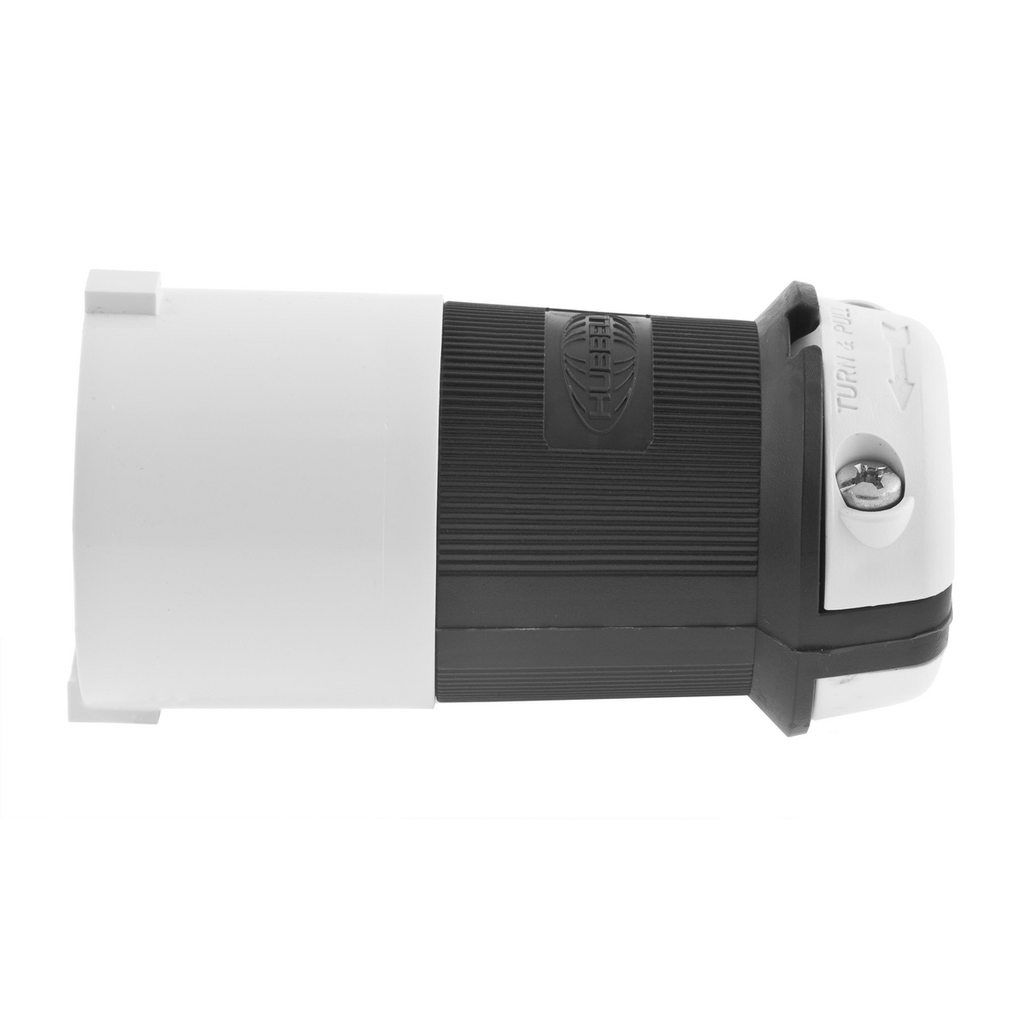

Locking Devices, Twist-Lock® Safety Shroud Male Plug 20A 125V - Industrial Electrical Connector

This Locking Device features a Twist-Lock® Safety Shroud design, providing secure and reliable electrical connections for extra heavy duty industrial applications. It is designed for use with 20 ampere, 125 volt AC circuits, supporting 2-pole, 3-wire grounding configurations in compliance with NEMA L5-20P standards. Ideal for electrical distributors and switchgear suppliers requiring durable wire and cable connectors, this male plug ensures safe, stable connections in indoor dry environments unless additional protection is applied.

Specifications

• Application: Extra Heavy Duty Industrial
• Amperage Rating: 20 A
• Current: 20 amperes
• Voltage: 125 V AC
• Number of Poles: 2-Pole
• Number of Wires: 3-Wire
• NEMA Rating: L5-20P
• Connection: Terminal Screws
• Mounting: Cord Mounted
• Material: Nylon body with White PBT shroud
• Color: Black and White
• Width: 2.5 in
• Product Weight: 0.35 lbs
• Horsepower: 1 horse power
• Cord Type: All Listed Portables
• Environmental Conditions: Indoor Dry Unless Protected By Additional Means
• Country of Origin: United States
• Made in USA: Yes
• Manufacturer Part #: HBL2311S
• Manufacturer: Hubbell Wiring Device-Kellems

Features

• Twist-Lock® design for secure electrical connection
• Safety Shroud for enhanced protection against accidental contact
• Screw terminal connection for reliable wiring
• Durable nylon construction with PBT shroud for industrial use
• Compatible with all listed portable cords
