Locking Devices, Twist-Lock®, Industrial, Receptacle, 50A 250V DC/600V AC, 3-Pole 4-Wire Grounding, Non-NEMA, Screw Terminal, Phenolic, Black
SKU: #143315
Part: #HBL3769
UPC: 783585236469
Locking Devices, Twist-Lock®, Industrial, Receptacle, 50A 250V DC/600V AC, 3-Pole 4-Wire Grounding, Non-NEMA, Screw Terminal, Phenolic, Black
SKU: #143315
Part: #HBL3769
UPC: 783585236469
Description

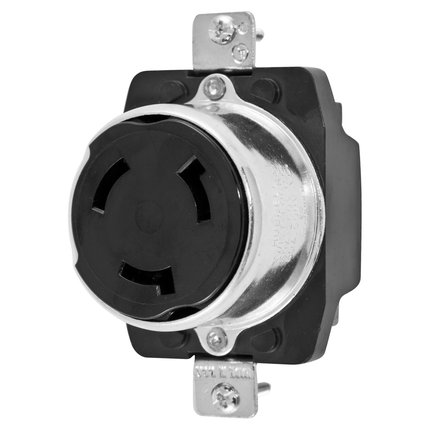

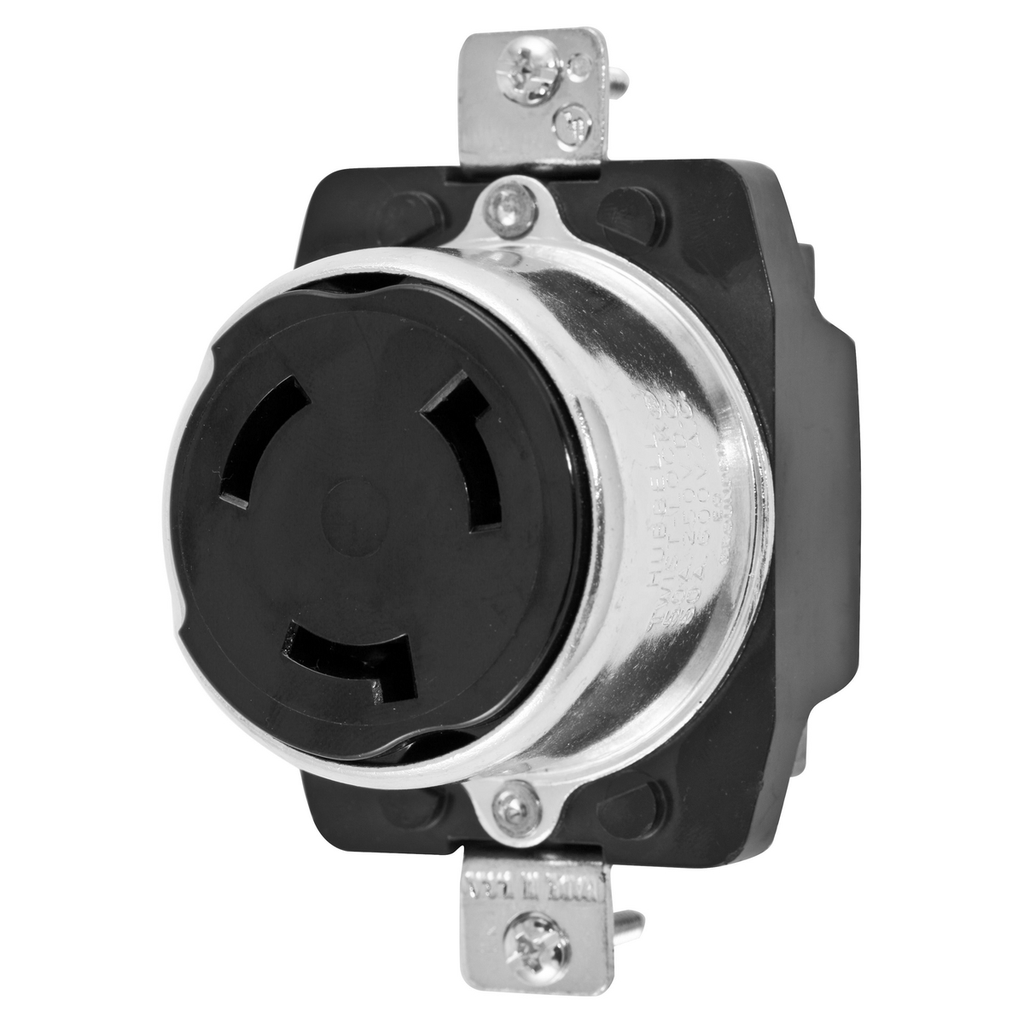

Locking Devices, Twist-Lock® Industrial Receptacle 50A 250V DC/600V AC
This industrial-grade Twist-Lock® receptacle is designed for heavy-duty applications, suitable for electrical distributors and lighting solutions requiring reliable wire and cable connections. It supports 50 amperes at 250V DC and 600V AC with a 3-pole, 4-wire grounding configuration. The device is constructed from durable phenolic material and features screw terminal connections for secure mounting and wiring. Ideal for indoor dry environments unless additional protection is applied, it meets the needs of switchgear suppliers and industrial electrical installations.
Specifications
- Amperage: 50 amperes
- Voltage Rating: 250V DC / 600V AC
- Number of Poles: 3-Pole
- Number of Wires: 4-Wire
- Connection Type: Screw Terminal
- Material: Phenolic
- Mounting: Screw Mount
- NEMA Rating: Non-NEMA
- Dielectric Strength: Withstands 2,000V minimum
- Width: 2.5 in
- Product Weight: 0.75 lb
- Environmental Conditions: Indoor Dry Unless Protected By Additional Means
- Country of Origin: Puerto Rico
- Manufacturer: Hubbell Wiring Device-Kellems
- Manufacturer Part #: HBL3769
Features
- Heavy-duty industrial design for demanding applications
- Locking Twist-Lock® mechanism ensures secure connections
- Phenolic construction provides high heat resistance and durability
- Screw terminal connections allow reliable and secure wiring
- 3-pole, 4-wire grounding configuration supports safety and compliance
- Suitable for use with heavy wire sizes (10 AWG to 4 AWG copper conductors)
