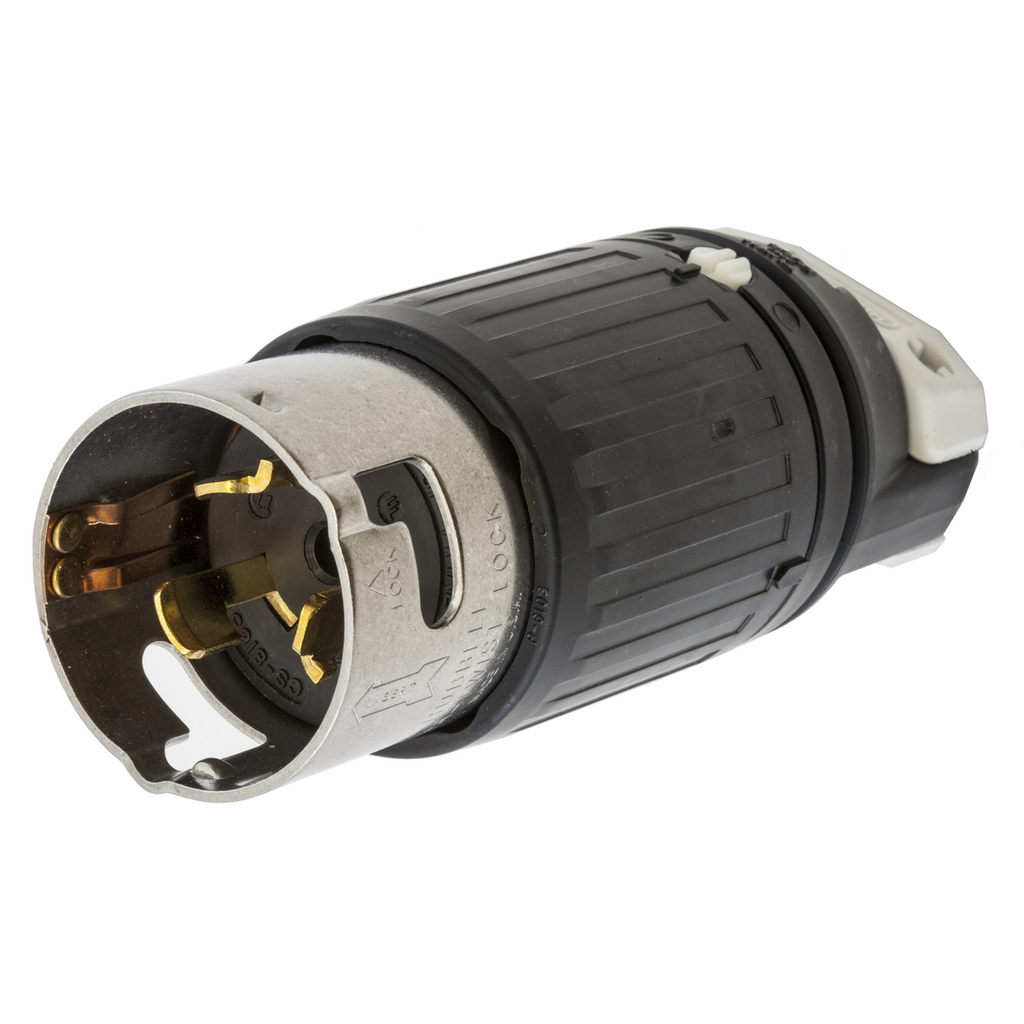

Features

• Super tough nylon housing offers better impact qualities
• Stainless steel shroud protects contacts and prevents mismating
• Heavy duty two-piece external cord clamp provides maximum strain relief
• Box terminal with hex socket threaded slug, permits high clamping pressure on conductors without damaging strands
• Thermoplastic polyester interior provides heat resistance and impact strength
• Standard Product

Specifications

• Country of Origin: United States
• Current / Amperage Rating: 50 A
• Dimensions: 6.37 in x 2.56 in x 2.56 in
• Width: 2.700 in
• Each - Width: 2.700 in
• Height: 2.56 in
• Industry Standard(s): Certified to CSA C22.2 No.42;Listed to UL 498
• Length: 6.37 in
• Performance: Electrical - Current Interrupting - Certified for current interrupting at full rated current;Electrical - Dielectric Voltage - Withstands 2,000V minimum;Environmental - Flammability - HB or better;Environmental - Operating Temperatures - Maximum continuous 75°C minimum –40°C (w/o impact);Mechanical - Terminal Accommodation - #10 AWG - #6 AWG stranded copper wire only
• Standards - RoHS Compliance Status: CM
• Amperage Rating: 50 A
• Application: Extra Heavy Duty Industrial
• Color: Black, White
• Cord Type: All Listed Portables
• Environmental Conditions: Indoor Dry Unless Protected By Additional Means
• Number of Poles: 3-Pole
• Number of Wires: 4-Wire
• Phase: Three Phase
• Size: 6.37 in x 2.56 in x 2.56 in
• Special Features: Standard Product
• Standard: Certified to CSA C22.2 No.42;Listed to UL 498
• Type: Plugs
• Voltage Rating: 3-Phase Delta 480 VAC
• Wire Size: #8 AWG to #4 AWG
• Voltage Rating Description: 3-Phase Delta 480 VAC
• Connectivity: Pressure Terminal Screws
• Dielectric Strength: Withstands 2,000V minimum
• Display Size: Standard Sized
• Number Of Poles: 3-Pole
• Number Of Wires: 4-Wire
• Operating Temperature: Maximum continuous 75°C and minimum -40°C without Impact
• Weight: 1.25 lb.
• Class Code: A08
• Description - Invoice: LOCKING PLUG, 50A 480V, 3P4W
• Freight Class Code: 06168002
• Harmonization Code: 8536694020
• Image Actual Or Representative: A
• MSDS Flag: No
• Sub Class Code: A08A150
• Cable Range: 0.830 - 1.250 in
• Cord Range: .830"-1.250"(21.08-31.75)
• Material - Mounting Hardware: Cord Mounted
• Cord Diameter: 0.830-1.250 in
• Current Rating: 50 A
• Material: Nylon
• Base Unit of Measure: EA
• BOX SIZE: 6.000x13.700x8.000 (in)
• Carton - Gross Weight per Pack: 13.100 lb.
• Carton - Number of Sub Packs: 10
• Carton - Pack Description: Carton
• Carton - SCC-14 Next Lower Level Sub Pack: 783585828442
• Carton - Total Units: 10 EA
• Case Weight: 12.700 lb.
• Each - Pack Description: Each
• Lowest Level UOM: Each
• Pallet Height: 48.000 in
• Pallet Length: 48.000 in
• Pallet Weight: 1761.200 lb.
• Pallet Width: 40.000 in

Certifications

• EU RoHS Indicator: Yes

Downloads

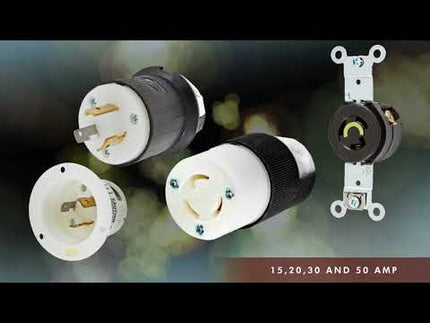

Videos
