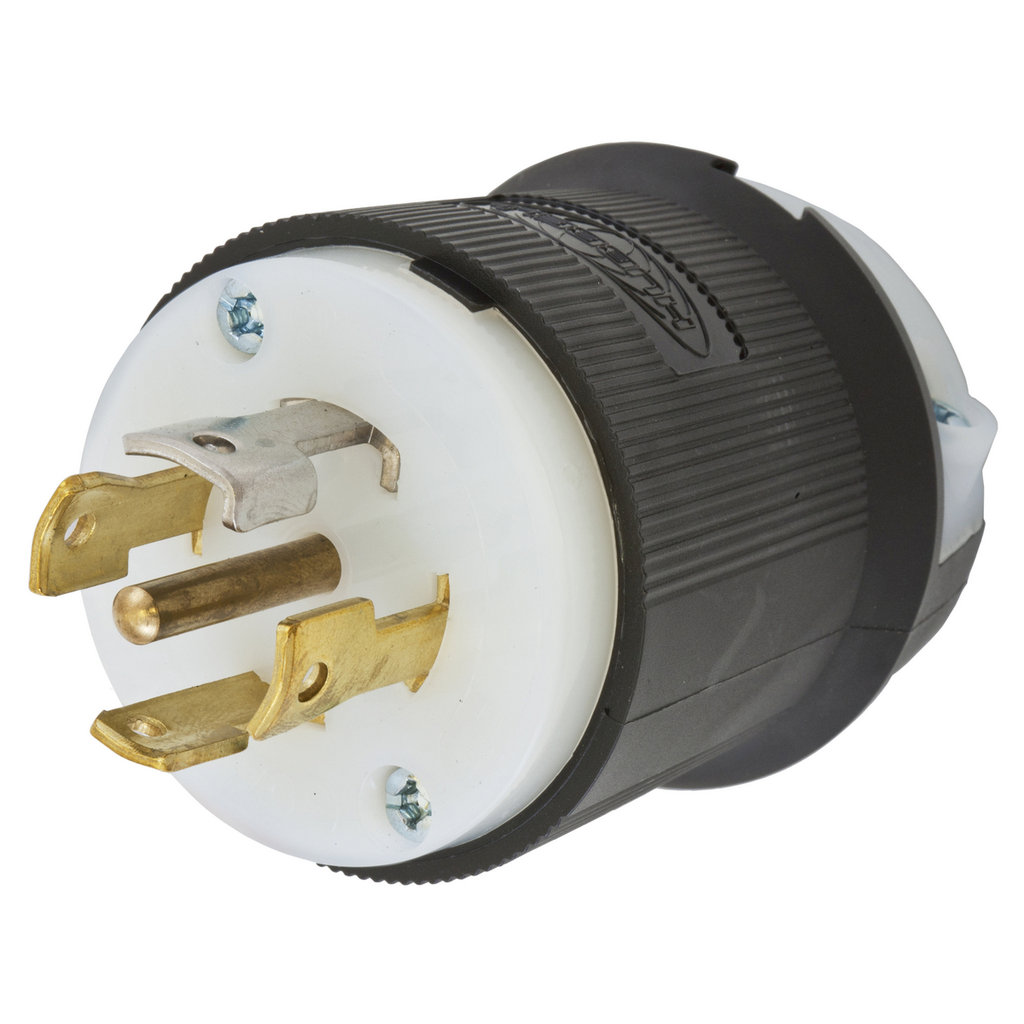

Locking Devices, Twist-Lock® Industrial Male Plug 30A 3-Phase 120/208V AC

This Hubbell Insulgrip® Twist-Lock® locking device is designed for extra heavy duty industrial applications, providing a reliable male plug solution for 30 amp, 3-phase 120/208V AC power distribution. Ideal for use by electrical distributors and lighting solutions providers, this device supports secure connections in demanding environments such as stage and studio power, portable power distribution, and industrial settings requiring robust wire and cable components. The product features a durable nylon construction for high impact, heat, and chemical resistance, making it suitable for indoor dry environments unless additional protection is applied.

Specifications

• Manufacturer: Hubbell Wiring Device-Kellems
• Manufacturer Part #: HBL2811
• Application: Extra Heavy Duty Industrial
• Current/Amperage: 30 amperes
• Voltage: 120/208V AC, 3-Phase
• Number of Poles: 4-Pole
• Number of Wires: 5-Wire Grounding
• Connection Type: Terminal Screws
• Mounting: Cord Mounted
• Cord Type: All Listed Portables
• Material: Nylon
• Color: Black and White
• Width: 2.5 in
• NEMA Rating: L21-30P
• Product Weight: 0.35 lbs
• Environmental Conditions: Indoor Dry Unless Protected By Additional Means
• Country of Origin: United States
• Made in USA: Yes
• UPC: 783585039633

Features

• Dual maximum strength cord grip for superior strain relief
• Super tough nylon construction providing high impact, heat, and chemical resistance
• Integral dust shield for enhanced device protection
• Funnel entry terminations to facilitate wiring
• Visible product identification on device for easy verification
• Certified for current interrupting at full rated current
• UL Listed and CSA Certified for safety and compliance

Downloads & Links

• Insulgrip¬Æ Straight Blade and Twist-Lock¬Æ Devices
• Warranty Document Asset Reference
• Sales Drawing Asset Reference
• Entertainment Product Solution Guide
• Catalog Page Asset Reference 2
• Catalog Page Asset Reference 1
• Installation Manuals Asset Reference
• HBL2811 AutoCAD Drawing
• Spec Sheet
• Wiring Device Solutions for Strategic Manufacturing Facilities
• Catalog Full Asset Reference
