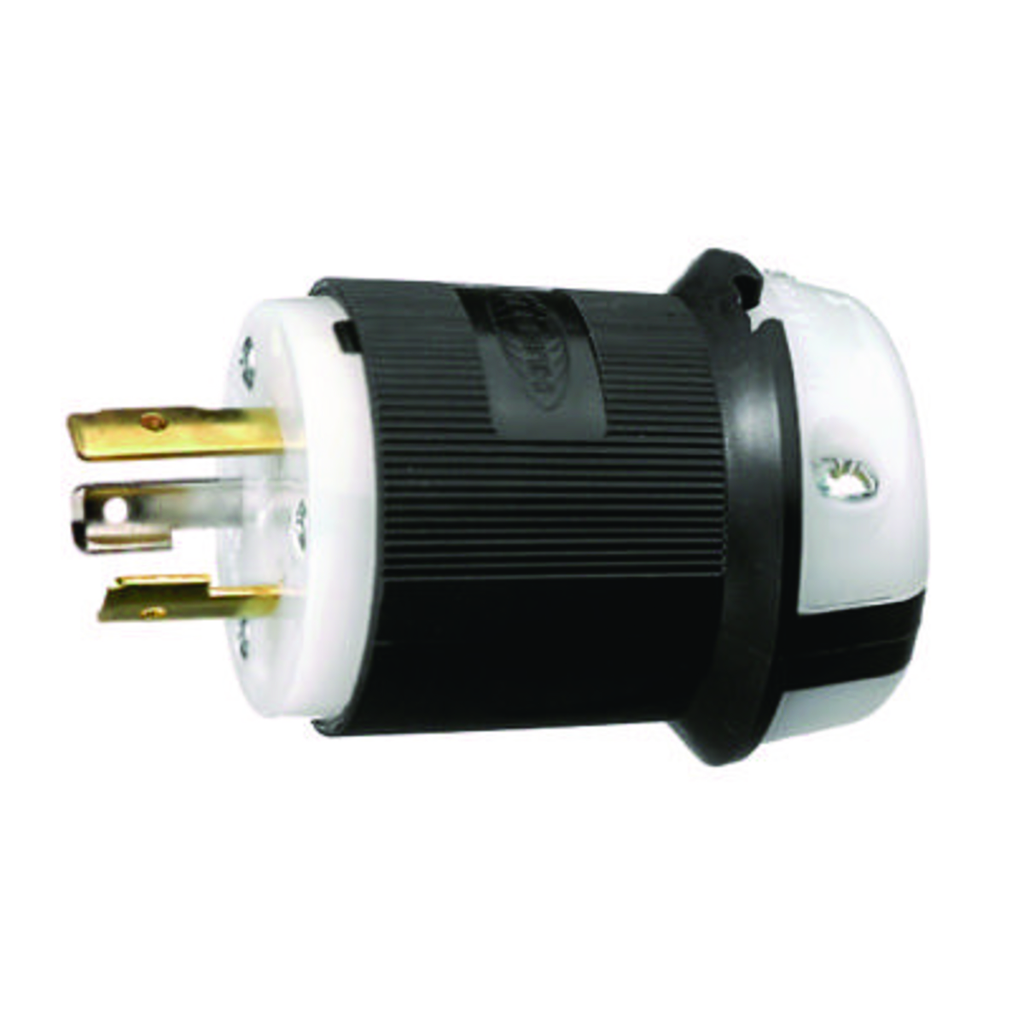

Features

• Ribbed nylon housing provides a secure grip and impact and chemical resistance.
• Superior cord grip design protects terminations from excess strain.
• Clear, funnel shaped wire entry for ease of termination.
• Integral dust shield protects wiring chamber from dust or contaminants.
• Standard Product

Specifications

• Country of Origin: United States
• Current / Amperage Rating: 20 A
• Dimensions: 2.26 in x 2.26 in x 2.75 in
• Width: 2.500 in
• Each - Width: 2.500 in
• Height: 2.75 in
• Horsepower - Maximum: 1
• Industry Standard(s): Certified to CSA C22.2 No.42;Fed.Spec. W-C-596;Listed to UL 498
• Length: 2.26 in
• Performance: Electrical - Current Interrupting - Certified for current interrupting at full rated current;Electrical - Dielectric Voltage - Withstands 2,000V minimum;Environmental - Flammability - HB or better per UL94 or CSA 22.2 No. 0.6;Environmental - Moisture Resistance - IP20 Suitability;Environmental - Operating Temperatures - Maximum Continuous 75°C Minimum -40°C (w/o impact);Mechanical - Terminal Accommodation - #16 AWG - #8 AWG stranded copper wire only.;Mechanical - Terminal Identification - Terminals identified in accordance with UL 498
• Standards - RoHS Compliance Status: CM
• Amperage Rating: 20 A
• Application: Extra Heavy Duty Industrial
• Color: Black, White
• Cord Type: All Listed Portables
• Environmental Conditions: Indoor Dry Unless Protected By Additional Means
• NEMA Rating: L5-20P
• Number of Poles: 2-Pole
• Number of Wires: 3-Wire
• Phase: Single Phase
• Size: 2.26 in x 2.26 in x 2.75 in
• Special Features: Standard Product
• Standard: Certified to CSA C22.2 No.42;Fed.Spec. W-C-596;Listed to UL 498
• Type: Plugs
• Voltage Rating: 125 VAC
• Wire Size: #16 AWG to #8 AWG
• Voltage Rating Description: 125 VAC
• Connectivity: Pressure Terminal Screws
• Dielectric Strength: Withstands 2,000V minimum
• Display Size: Standard Sized
• Nema Rating: L5-20P
• Number Of Poles: 2-Pole
• Number Of Wires: 3-Wire
• Operating Temperature: Maximum continuous 75°C and minimum -40°C without Impact
• Weight: 0.25 lb.
• Class Code: A08
• Description - Invoice: LKG PLUG, 20A 125V, L5-20P, B/W
• Freight Class Code: 06168002
• Harmonization Code: 8536694020
• Image Actual Or Representative: A
• MSDS Flag: No
• Replaced Catalog Number: 2311;2311CN;HBL2311C;HBL2311CN
• Sub Class Code: A08A110
• Cable Range: 0.360 - 0.930 in
• Cord Range: 0.360"-0.930" (9-24)
• Material - Mounting Hardware: Cord Mounted
• Cord Diameter: 0.360-0.930 in
• Current Rating: 20 A
• Material: Nylon
• Base Unit of Measure: EA
• BOX SIZE: 8.000x12.700x8.900 (in)
• Carton - Gross Weight per Pack: 9.350 lb.
• Carton - Number of Sub Packs: 10
• Carton - Pack Description: Carton
• Carton - SCC-14 Next Lower Level Sub Pack: 783585037707
• Carton - Total Units: 30 EA
• Case Weight: 9.450 lb.
• Each - Pack Description: Each
• Lowest Level UOM: Each
• Pallet Height: 47.400 in
• Pallet Length: 48.000 in
• Pallet Weight: 969.000 lb.
• Pallet Width: 40.000 in

Certifications

• EU RoHS Indicator: Yes
