Locking Devices, Twist-Lock® Industrial Male Plug 20A 125/250V 3-Pole 4-Wire Grounding L14-20P

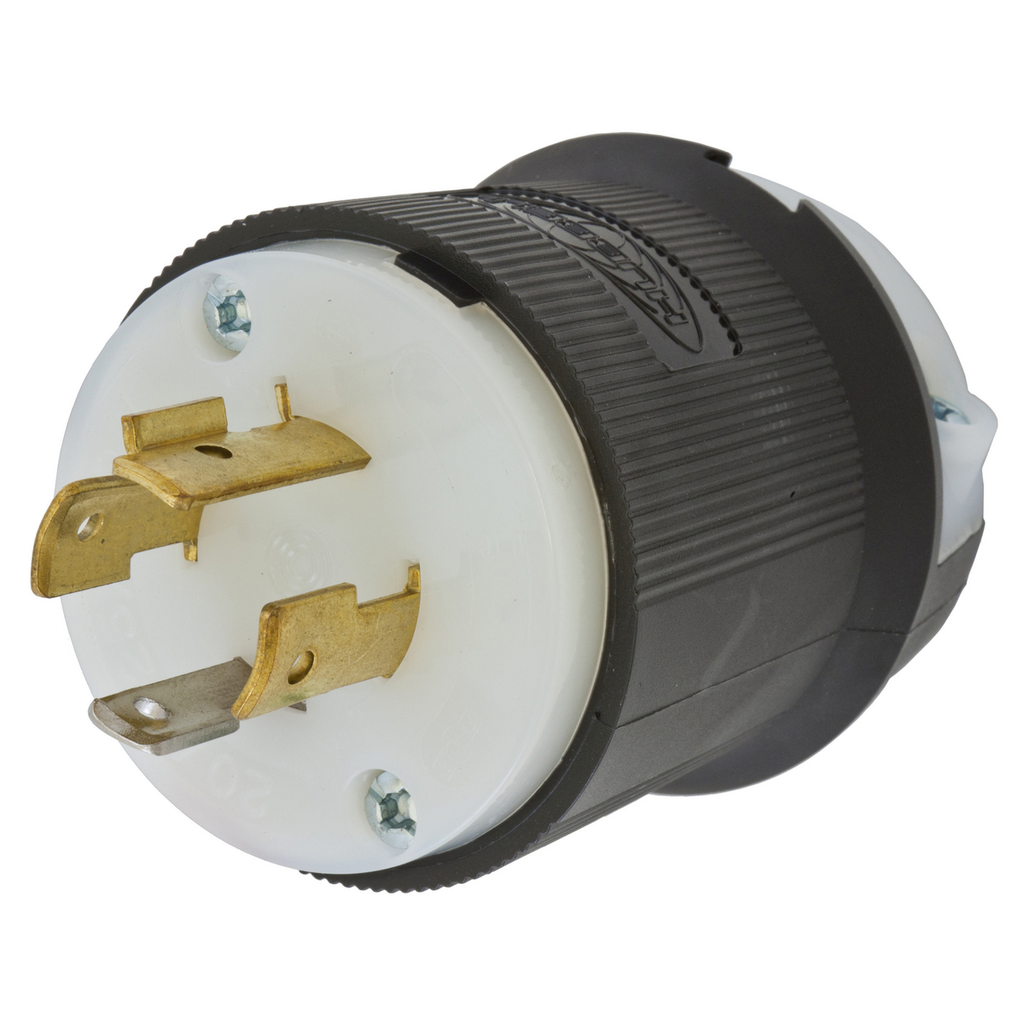

This locking device is an extra heavy duty industrial male Insulgrip® plug designed for secure electrical connections in demanding environments. It is suitable for use by electrical distributors and switchgear suppliers requiring reliable wiring solutions for 20 amp, 125/250 volt AC applications. The device features a 3-pole, 4-wire grounding configuration with a NEMA L14-20P rating and is cord mounted for compatibility with all listed portable cords.

Specifications

• Application: Extra Heavy Duty Industrial
• Current Rating: 20 amperes
• Voltage Rating: 125/250 VAC
• Number of Poles: 3-Pole
• Number of Wires: 4-Wire
• Wire Size: #16 AWG to #8 AWG stranded copper wire
• Cable Range: 0.350" - 1.150"
• Mounting: Cord Mounted
• Connection: Screw Terminal (Pressure Terminal Screws)
• Material: Nylon housing with brass blades and steel assembly screws (nickel plated)
• Dimensions: 2.33 in (L) x 2.33 in (W) x 2.75 in (H)
• Weight: 0.20 lb
• Environmental Conditions: Indoor dry unless protected by additional means
• Operating Temperature: Maximum continuous 75°C, minimum -40°C without impact
• Horsepower Rating: 2 HP
• NEMA Rating: L14-20P
• Standards: Certified to CSA C22.2 No.42, Fed.Spec. W-C-596, Listed to UL 498
• RoHS Compliance: Yes
• Country of Origin: United States
• Manufacturer Part Number: HBL2411

Features

• Superior cord grip design protects terminations from excess strain
• Clear, funnel-shaped wire entry for ease of termination
• Integral dust shield protects wiring chamber from dust and contaminants
• Durable nylon housing with corrosion-resistant brass blades and nickel-plated steel hardware
• Certified for current interrupting at full rated current and dielectric strength withstands 2,000V minimum
