Features

• Impact resistant thermoplastic construction
• Backwired terminations for ease of installation
• #10-32 Multiple drive terminal screws (Slotted, Phillips, Robertson)
• Mounting screws included
• Standard

Specifications

• Country of Origin: United States
• Current / Amperage Rating: 30 A
• Dimensions: 3.06 in x 3.06 in x 2.46 in
• Width: 3.300 in
• Each - Width: 3.300 in
• Height: 2.46 in
• Horsepower - Maximum: 3
• Industry Standard(s): Certified to CSA C22.2 No.42;Fed.Spec. W-C-596;Listed to UL 498
• Length: 3.06 in
• Performance: Electrical-Current Interrupting - Certified at full rated current;Electrical - Dielectric Voltage - 2,000V minimum;Mechanical - Terminal Accommodation - #16 - #8 AWG stranded copper wire only;Mechanical - Terminal Identification - Terminals identified in accordance with UL 498;Mechanical - Flammability - V2 or better per UL94/CSA 22.2 No.0.17;Environmental - Moisture Resistance - IP20 Suitability;Environmental - Operating Temperatures - Maximum Continuous 75°C;Minimum -40°C (w/o impact)
• Amperage Rating: 30 A
• Application: Heavy Duty Industrial
• Color: White
• Dielectric Strength: Withstands 2,000V minimum
• Environmental Conditions: Indoor Dry Unless Protected By Additional Means
• NEMA Rating: L21-30R
• Number of Poles: 4-Pole
• Number of Wires: 5-Wire Grounding
• Phase: 3 Phase WYE
• Size: 3.06 in x 3.06 in x 2.46 in
• Special Features: Standard
• Standard: Certified to CSA C22.2 No.42;Fed.Spec. W-C-596;Listed to UL 498
• Voltage Rating: 120/208 VAC
• Wire Size: #16 AWG to #8 AWG
• Connectivity: Back Wired Screw Terminals
• Display Size: Standard Sized Product
• Nema Rating: L21-30R
• Number Of Poles: 4-Pole
• Number Of Wires: 5-Wire Grounding
• Operating Temperature: Maximum continuous 75°C and minimum -40°C without Impact
• Weight: 0.35 lb.
• Class Code: A08
• Description - Invoice: LKG FLG-RCPT,30A 3P120/208V,L21-30R,WH
• Freight Class Code: 06168002
• Harmonization Code: 8536694020
• Image Actual Or Representative: A
• MSDS Flag: No
• Replaced Catalog Number: 2816
• Sub Class Code: A08A110
• Material - Mounting Hardware: Screw Mounting
• Current Rating: 30 A
• Material: Nylon
• Base Unit of Measure: EA
• BOX SIZE: 6.700x10.300x8.300 (in)
• Carton - Gross Weight per Pack: 4.250 lb.
• Carton - Number of Sub Packs: 10
• Carton - Pack Description: Carton
• Carton - SCC-14 Next Lower Level Sub Pack: 783585039688
• Carton - Total Units: 10 EA
• Case Weight: 3.451 lb.
• Each - Pack Description: Each
• Lowest Level UOM: Each
• Pallet Height: 46.900 in
• Pallet Length: 48.000 in
• Pallet Weight: 662.200 lb.
• Pallet Width: 40.000 in

Certifications

• EU RoHS Indicator: Yes
• Listings: UL 498;Fed.Spec. W-C-596;CSA C22.2 No.42

Downloads

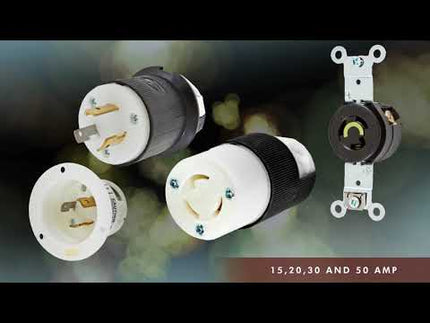

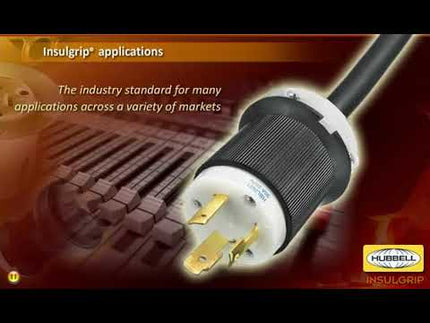

Videos
