Locking Devices, Twist-Lock®, Industrial, Female Insulgrip® Connector Body, 50A 250V DC/600V AC, 2-Pole 3-Wire Grounding, Non-NEMA, Screw Terminal, Nylon housing thermoplastic polyester interior, Black
SKU: #143286
Part: #HBL3762C
UPC: 783585235554
Locking Devices, Twist-Lock®, Industrial, Female Insulgrip® Connector Body, 50A 250V DC/600V AC, 2-Pole 3-Wire Grounding, Non-NEMA, Screw Terminal, Nylon housing thermoplastic polyester interior, Black
SKU: #143286
Part: #HBL3762C
UPC: 783585235554
Description

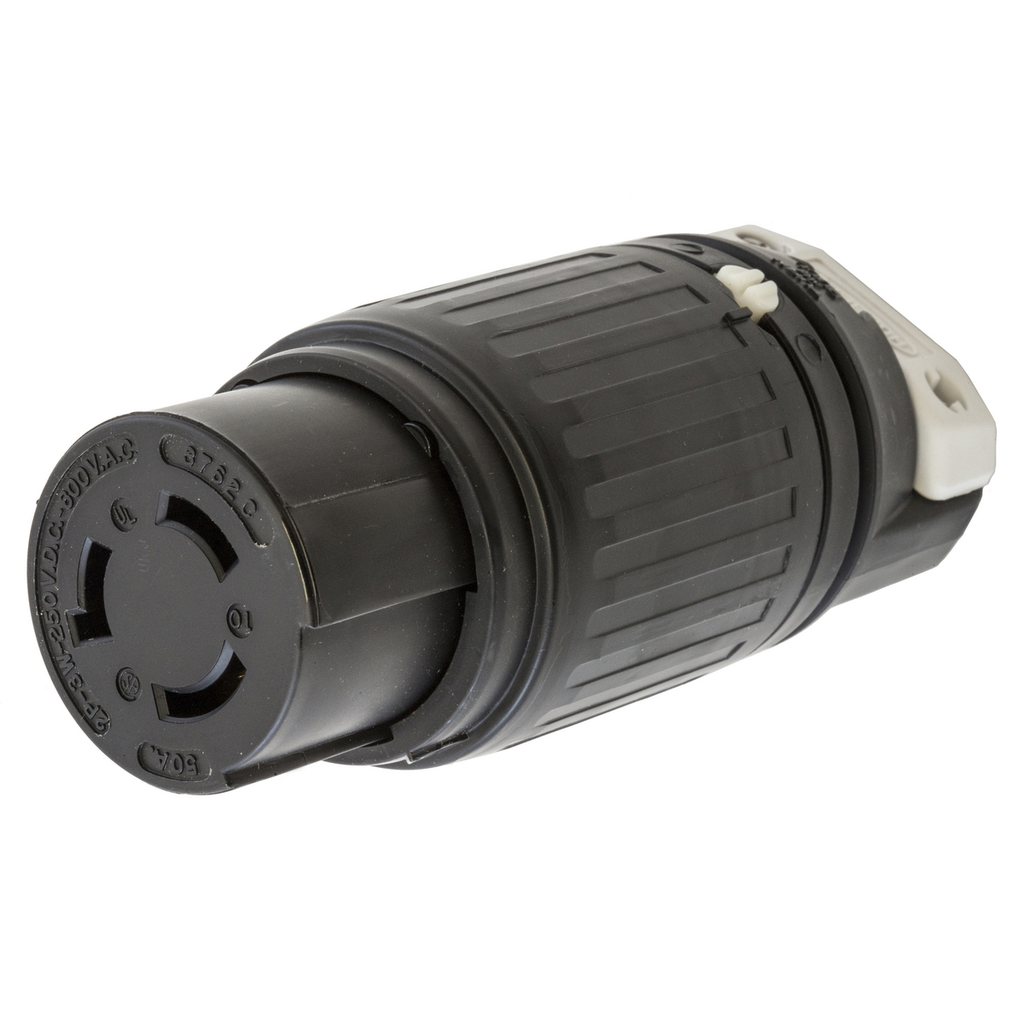

Locking Devices, Twist-Lock® Industrial Female Insulgrip® Connector Body – Heavy Duty Electrical Connector
This locking device is a heavy-duty industrial-grade female Insulgrip® connector body designed for secure and reliable electrical connections in demanding applications. It supports 50 amperes at 250V DC and 600V AC, suitable for 2-pole, 3-wire grounding configurations. Ideal for electrical distributors and lighting solutions requiring durable wire and cable connectors, this product is cord-mounted and built to withstand indoor dry environments unless otherwise protected.
Specifications
- Application: Heavy Duty Industrial
- Current Rating: 50 A
- Voltage Rating: 250 VDC / 600 VAC
- Number of Poles: 2-Pole
- Number of Wires: 3
- Conductor Range: #6 AWG
- Connection: Pressure Screw Terminal
- Insulation: Insulated Body
- Material: Nylon
- Mounting: Cord Mounted
- Dimensions: 2.56 in (L) x 2.56 in (W) x 6.50 in (H)
- Weight: 1.00 lb
- Color: Black, White
- Environmental Conditions: Indoor Dry Unless Protected By Additional Means
- Operating Temperature: Maximum continuous 75°C, minimum -40°C without impact
- NEMA Rating: Non-NEMA
- Standards: Certified to CSA C22.2 No.42, Listed to UL 498
- Country of Origin: United States
- Manufacturer Part #: HBL3762C
Features
- Box terminal with hex socket threaded slug permits high clamping pressure on conductors without damaging strands
- Heavy-duty two-piece external cord clamp provides maximum strain relief
- Thermoplastic polyester interior offers heat resistance and impact strength
- Oversized contacts minimize operating temperature
- Female Insulgrip® connector body designed for 50A applications
- Non-NEMA configuration for specialized industrial use
- Constructed with durable nylon housing for impact resistance
