Locking Devices, Twist-Lock®, Industrial, Female Connector Body, 50A 250V, 2-Pole 3-Wire Grounding, Non-NEMA, Screw Terminal, Black and White
SKU: #139179
Part: #CS8264C
UPC: 783585828466
Locking Devices, Twist-Lock®, Industrial, Female Connector Body, 50A 250V, 2-Pole 3-Wire Grounding, Non-NEMA, Screw Terminal, Black and White
SKU: #139179
Part: #CS8264C
UPC: 783585828466
Description

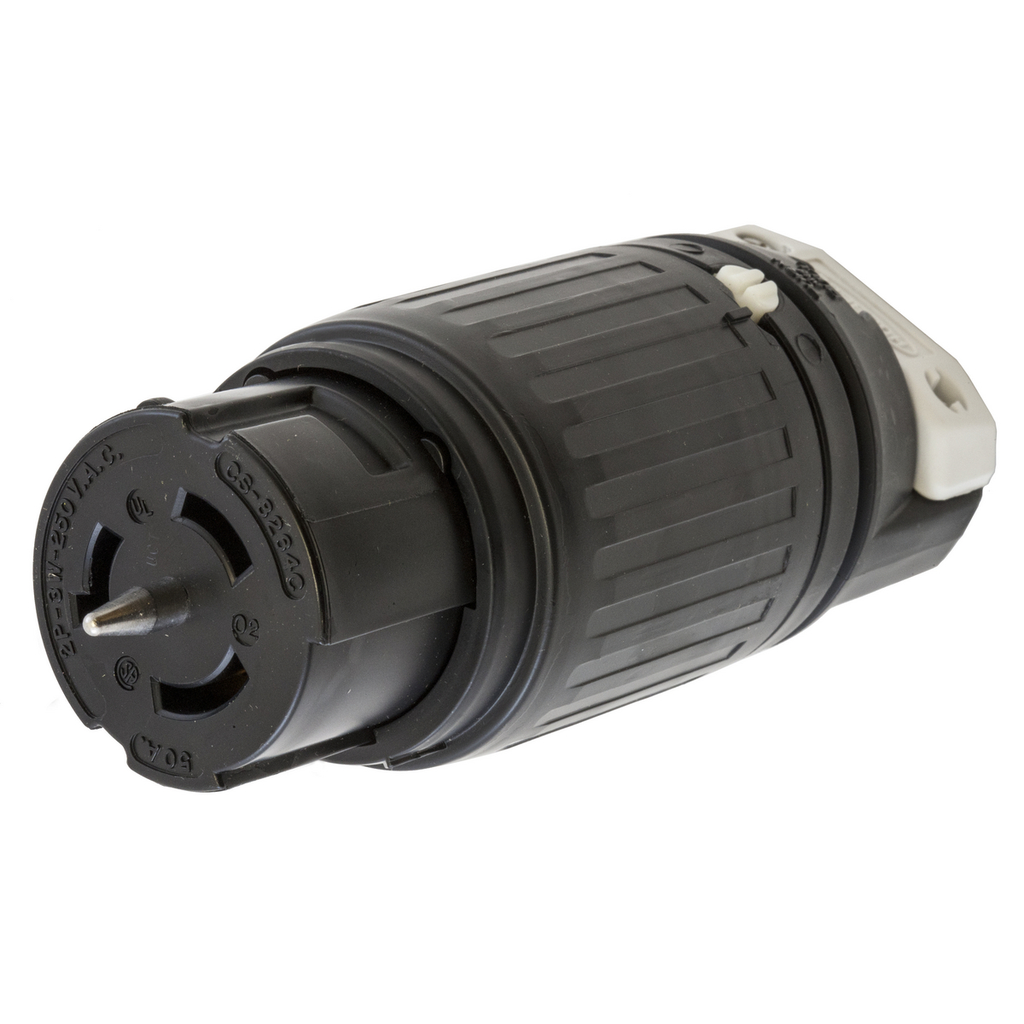

Locking Devices, Twist-Lock® Industrial Female Connector Body, 50A 250V – Heavy Duty Electrical Connector
This Twist-Lock® locking device by Hubbell Wiring Device-Kellems is designed for heavy duty industrial applications requiring secure electrical connections. It serves as a female connector body rated for 50 amperes at 250 volts, suitable for 2-pole, 3-wire grounding circuits. Ideal for use with wire and cable in industrial environments, this connector supports reliable and safe power distribution. It is a cord-mounted device with an insulated nylon body, engineered for indoor dry environments unless additional protection is provided. As a product made in the USA, it meets high manufacturing standards for electrical distributors and switchgear suppliers.
Specifications
- Manufacturer: Hubbell Wiring Device-Kellems
- Manufacturer Part #: CS8264C
- Application: Heavy Duty Industrial
- Amperage Rating: 50 A
- Voltage Rating: 250 V
- Number of Poles: 2-Pole
- Number of Wires: 3
- Number of Conductors: 3-Wire Grounding
- Connection: Pressure Screw Terminal
- Conductor Range: #6 AWG
- Material: Nylon
- Color: Black, White
- Mounting: Cord Mounted
- Insulation: Insulated Body
- NEMA Rating: Non-NEMA
- Environmental Conditions: Indoor Dry Unless Protected By Additional Means
- Width: 2.700 in
- Product Weight: 0.3340 lbs
- Country of Origin: United States
- Made in USA: Yes
Features
- Twist-Lock® design ensures secure, vibration-resistant connections
- Screw terminal connection for reliable conductor retention
- Compatible with round cord types S, SO, ST, 8/3 to 4/4, 0.83" to 1.25" diameter (per installation instructions)
- Designed for use with stranded copper conductors only
- Installation requires qualified electrician following national and local electrical codes
- Insulated nylon body for electrical safety and durability
- Suitable for 50A circuits at 250V in industrial power distribution systems
