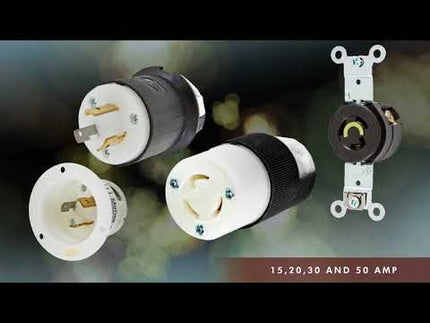

Features

• Superior cord grip design protects terminations from excess strain.
• Clear, funnel shaped wire entry for ease of termination.
• Integral dust shield protects wiring chamber from dust or contaminants.
• Standard Product

Specifications

• Country of Origin: United States
• Current / Amperage Rating: 30 A
• Dimensions: 2.33 in x 2.33 in x 3.86 in
• Width: 2.500 in
• Each - Width: 2.500 in
• Height: 3.86 in
• Industry Standard(s): Certified to CSA C22.2 No.42;Fed.Spec. W-C-596;Listed to UL 498
• Length: 2.33 in
• Performance: Electrical - Current Interrupting - Certified for current interrupting at full rated current;Electrical - Dielectric Voltage - Withstands 2,000V minimum;Environmental - Flammability - HB or better per UL94 or CSA 22.2 No. 0.6;Environmental - Operating Temperatures - Maximum Continuous 75°C Minimum -40°C (w/o impact);Mechanical - Terminal Accommodation - #16 AWG - #8 AWG stranded copper wire only.;Mechanical - Terminal Identification - Terminals identified in accordance with UL 498
• Standards - RoHS Compliance Status: CM
• Amperage Rating: 30 A
• Application: Heavy Duty Industrial
• Color: Black, White
• Environmental Conditions: Indoor Dry Unless Protected By Additional Means
• Insulation: Insulated Body
• NEMA Rating: L14-30R
• Number of Poles: 3-Pole
• Size: 2.33 in x 2.33 in x 3.86 in
• Special Features: Standard Product
• Standard: Certified to CSA C22.2 No.42;Fed.Spec. W-C-596;Listed to UL 498
• Type: Connector Body
• Voltage Rating: 125/250 VAC
• Voltage Rating Description: 125/250 VAC
• Connectivity: Pressure Terminal Screws
• Dielectric Strength: Withstands 2,000V minimum
• Display Size: Standard
• Nema Rating: L14-30R
• Number Of Poles: 3-Pole
• Number Of Wires: 4-Wire
• Operating Temperature: Maximum continuous 75°C and minimum -40°C without Impact
• Phase: Single Phase
• Weight: 0.35 lb.
• Wire Size: #16 AWG to #8 AWG
• Class Code: A08
• Description - Invoice: LKG CONN, 30A 125/250V, L14-30R, B/W
• Freight Class Code: 06168002
• Harmonization Code: 8536694020
• Image Actual Or Representative: A
• MSDS Flag: No
• Replaced Catalog Number: 2713;2713CN;HBL2713CN
• Sub Class Code: A08A110
• Cable Range: 0.350 - 1.150 in
• Cord Range: 0.350"-1.150" (9-29)
• Material - Mounting Hardware: Cord Mounted
• Cord Diameter: 0.350-1.150 in
• Current Rating: 30 A
• Material: Nylon
• Base Unit of Measure: EA
• BOX SIZE: 8.000x12.600x9.000 (in)
• Carton - Gross Weight per Pack: 12.850 lb.
• Carton - Number of Sub Packs: 30
• Carton - Pack Description: Carton
• Carton - SCC-14 Next Lower Level Sub Pack: 783585039176
• Carton - Total Units: 30 EA
• Case Weight: 13.150 lb.
• Each - Pack Description: Each
• Lowest Level UOM: Each
• Pallet Height: 47.400 in
• Pallet Length: 48.000 in
• Pallet Weight: 1248.000 lb.
• Pallet Width: 40.000 in

Certifications

• EU RoHS Indicator: Yes
