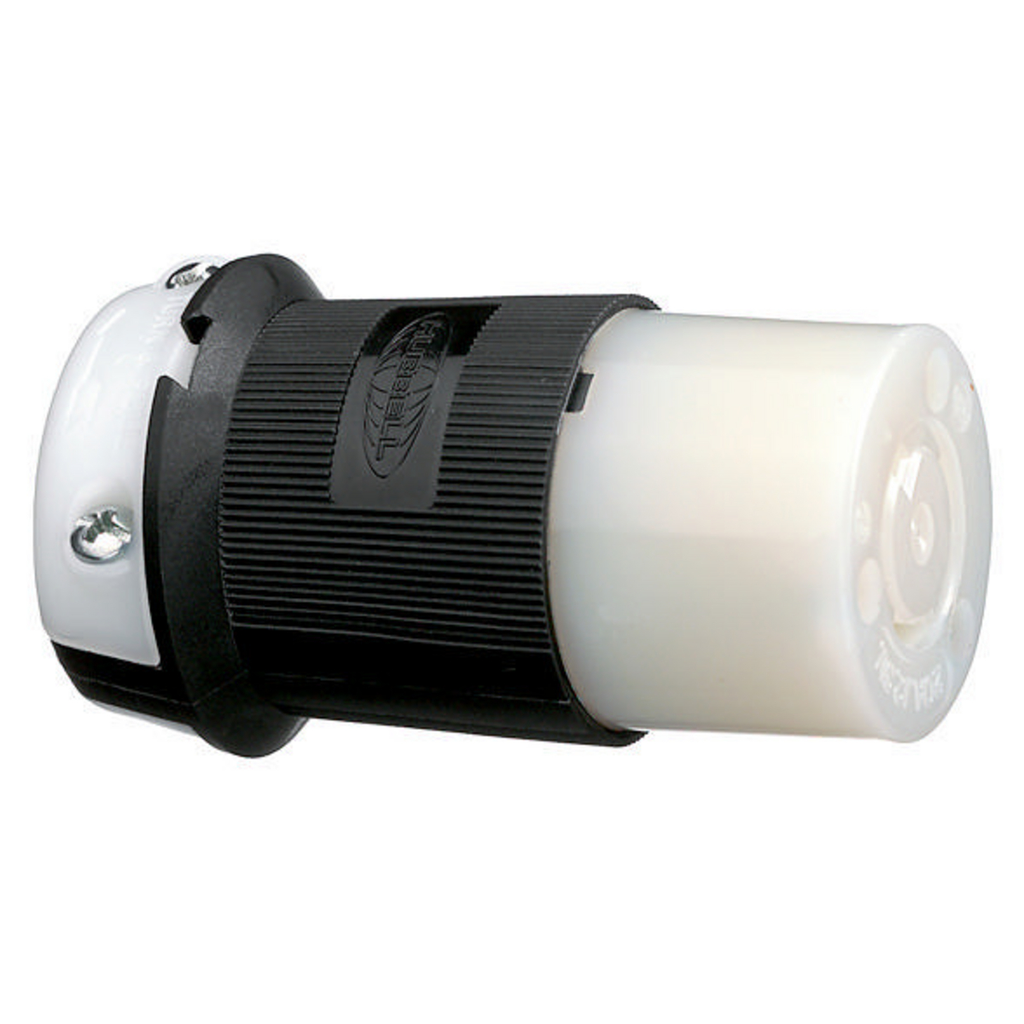

Locking Devices, Twist-Lock®, Industrial, Female Connector Body, 20A 125V, 2-Pole 3-Wire Grounding, L5-20R, Screw Terminal, Black and White
SKU: #142157
Part: #HBL2313
UPC: 783585037745
Locking Devices, Twist-Lock®, Industrial, Female Connector Body, 20A 125V, 2-Pole 3-Wire Grounding, L5-20R, Screw Terminal, Black and White
SKU: #142157
Part: #HBL2313
UPC: 783585037745
Next day delivery
Description
Locking Devices, Twist-Lock® Female Connector Body 20A 125V - Industrial Electrical Distributor
This industrial-grade locking device features a Twist-Lock® design for secure electrical connections in heavy duty industrial environments. It is a female Insulgrip® connector body rated at 20 amperes and 125 volts AC, designed for 2-pole, 3-wire grounding applications compliant with NEMA L5-20R standards. Ideal for use by electrical distributors and switchgear suppliers, this cord-mounted connector supports wire and cable installations requiring reliable, locking connections.
Specifications
- Application: Heavy Duty Industrial
- Amperage Rating: 20 amperes
- Voltage: 125V AC
- Number of Poles: 2-Pole
- Number of Wires: 3-Wire Grounding
- NEMA Rating: L5-20R
- Connection: Pressure Screw Terminal
- Conductor Range: #12 AWG to #10 AWG
- Horsepower Rating: 1 HP
- Material: Nylon
- Color: Black, White
- Width: 2.5 in
- Mounting: Cord Mounted
- Insulation: Insulated Body
- Product Weight: 0.3 lbs
- Country of Origin: United States
- Manufacturer: Hubbell Wiring Device-Kellems
- Manufacturer Part Number: HBL2313
Features
- Durable Insulgrip® nylon body offering chemical and impact resistance
- Twist-Lock® design ensures secure, vibration-resistant connection
- Pressure screw terminals provide reliable wire termination
- Designed for indoor dry environments unless protected by additional means
- Made in the USA, meeting stringent quality and safety standards
