Locking Devices, Twist-Lock® Female Connector Body, 15A 125V Industrial Electrical Connector

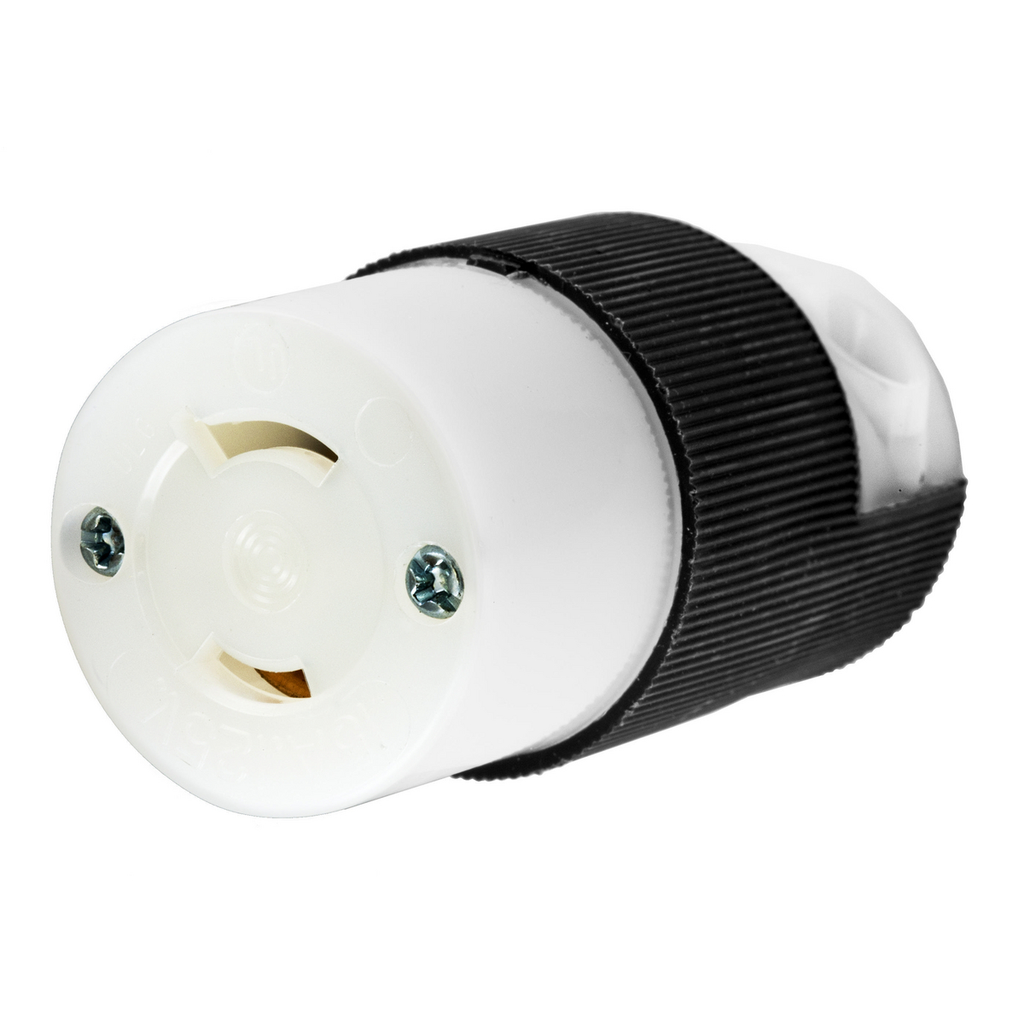

This locking device is a Twist-Lock® industrial female connector body designed for heavy duty industrial applications. It is intended for use as a cord-mounted electrical connector suitable for wire and cable connections requiring secure, non-grounding connections. The device is constructed with a black and white nylon insulated body and features a pressure screw terminal connection, making it compatible with #14AWG to #12AWG conductors. It is designed for indoor dry environments unless additional protection is provided, supporting reliable electrical distribution in industrial settings.

Specifications

• Manufacturer: Hubbell Wiring Device-Kellems
• Manufacturer Part #: HBL7506C
• Application: Heavy Duty Industrial
• Amperage Rating: 15 A
• Voltage Rating: 125 V
• Number of Poles: 2-Pole
• Number of Wires: 2
• Number of Conductors: 2-Wire Non-Grounding
• Connection Type: Pressure Screw Terminal
• Material: Nylon
• Color: Black, White
• Width: 1.900 in
• Mounting: Cord Mounted
• Insulation: Insulated Body
• Conductor Range: #14AWG to #12AWG
• NEMA Rating: L6-15R
• Environmental Conditions: Indoor Dry Unless Protected By Additional Means
• Country of Origin: United States
• Product Weight: 0.1500 lb

Features

• Twist-Lock® design ensures secure and reliable connection
• Industrial grade female Insulgrip® connector body
• Screw terminal connection for easy and secure wiring
• Non-grounding configuration suitable for specific industrial applications
• Durable nylon construction for long-lasting performance
• Made in the USA, ensuring quality manufacturing standards
