Locking Devices, Midget Twist-Lock® Valise® Female Connector Body - Industrial Electrical Connector

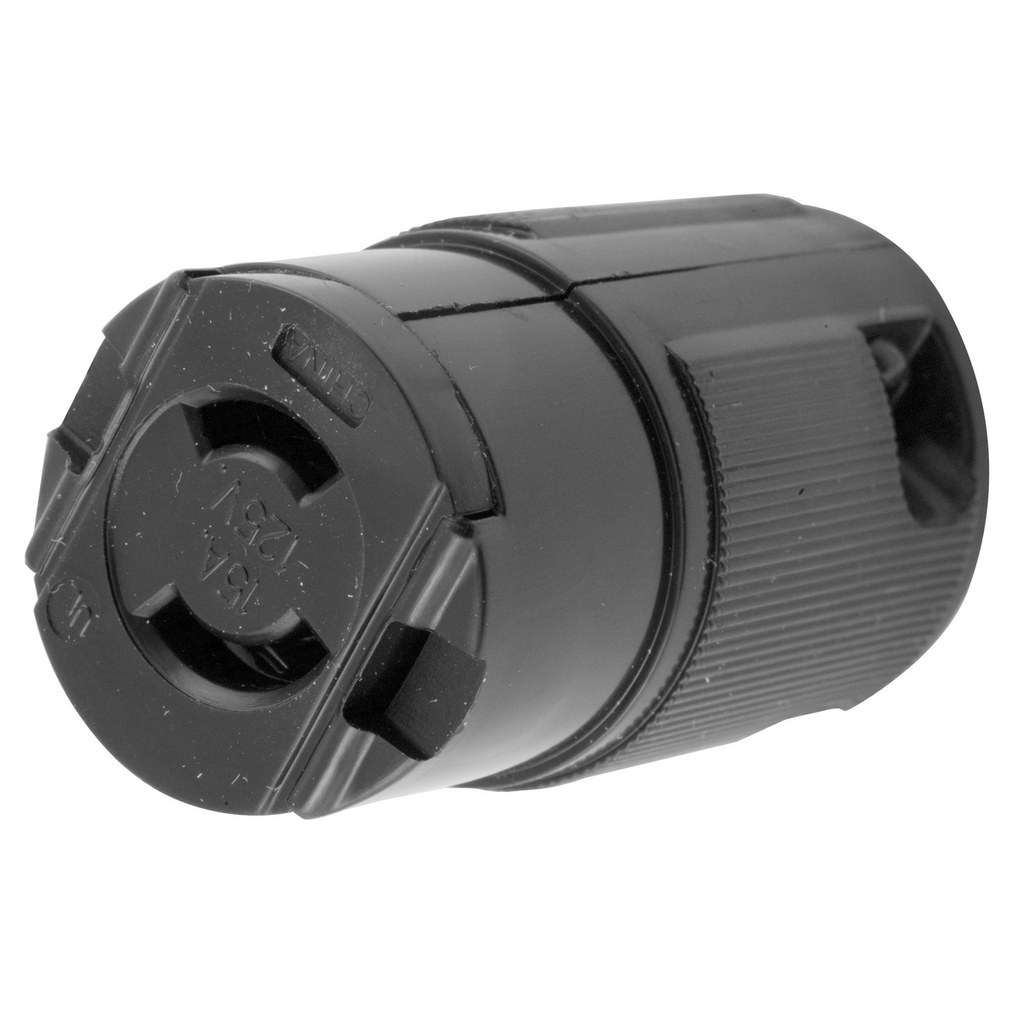

This 15A 125V AC Midget Twist-Lock® Valise® female connector body is designed for heavy duty industrial applications. It is suitable for use by electrical distributors and switchgear suppliers requiring reliable wire and cable connections. Featuring a 2-pole, 2-wire non-grounding configuration with a NEMA ML-1R rating, this connector provides secure, polarized connections with pressure screw terminals for ease of installation.

Specifications

• Application: Heavy Duty Industrial
• Current Rating: 15 amperes
• Voltage Rating: 125 V AC
• Number of Poles: 2-Pole
• Number of Wires: 2
• Conductor Range: #14 AWG to #12 AWG
• Wire Size: #18 AWG to #14 AWG
• Cable Range: 0.220" - 0.385" (5.6 - 9.8 mm)
• Insulation: Insulated Body
• Material: Nylon housing with brass contacts and steel terminal clamps
• Mounting: Cord Mounted
• Connection: Pressure Screw Terminal
• NEMA Rating: ML-1R
• Dimensions: 1.06 in (L) x 1.06 in (W) x 1.77 in (H)
• Weight: 0.05 lb
• Environmental Conditions: Indoor dry unless protected by additional means
• Operating Temperature: Maximum continuous 75°C, minimum -40°C without impact
• Standards: Certified to CSA C22.2 No.42, Listed to UL 498
• RoHS Compliant: Yes
• Country of Origin: China

Features

• Fully insulated, abuse-resistant nylon housing
• Insulation displacement terminals reduce wiring time
• Polarized design for secure connections
• Pressure screw terminals for reliable conductor retention
• Body holding screws zinc plated steel for durability
• Contacts made of brass for conductivity
• Terminal clamps nickel-plated steel for corrosion resistance
