Locking Devices, Midget Twist-Lock®, Industrial, Flanged Receptacle, 15A 125/250V AC, 3-Pole 3-Wire Non Grounding, NEMA ML-3R, Screw Terminal, Stainless Steel Flange.
SKU: #145426
Part: #HBL7487
UPC: 783585237466
Locking Devices, Midget Twist-Lock®, Industrial, Flanged Receptacle, 15A 125/250V AC, 3-Pole 3-Wire Non Grounding, NEMA ML-3R, Screw Terminal, Stainless Steel Flange.
SKU: #145426
Part: #HBL7487
UPC: 783585237466
Next day delivery
Description

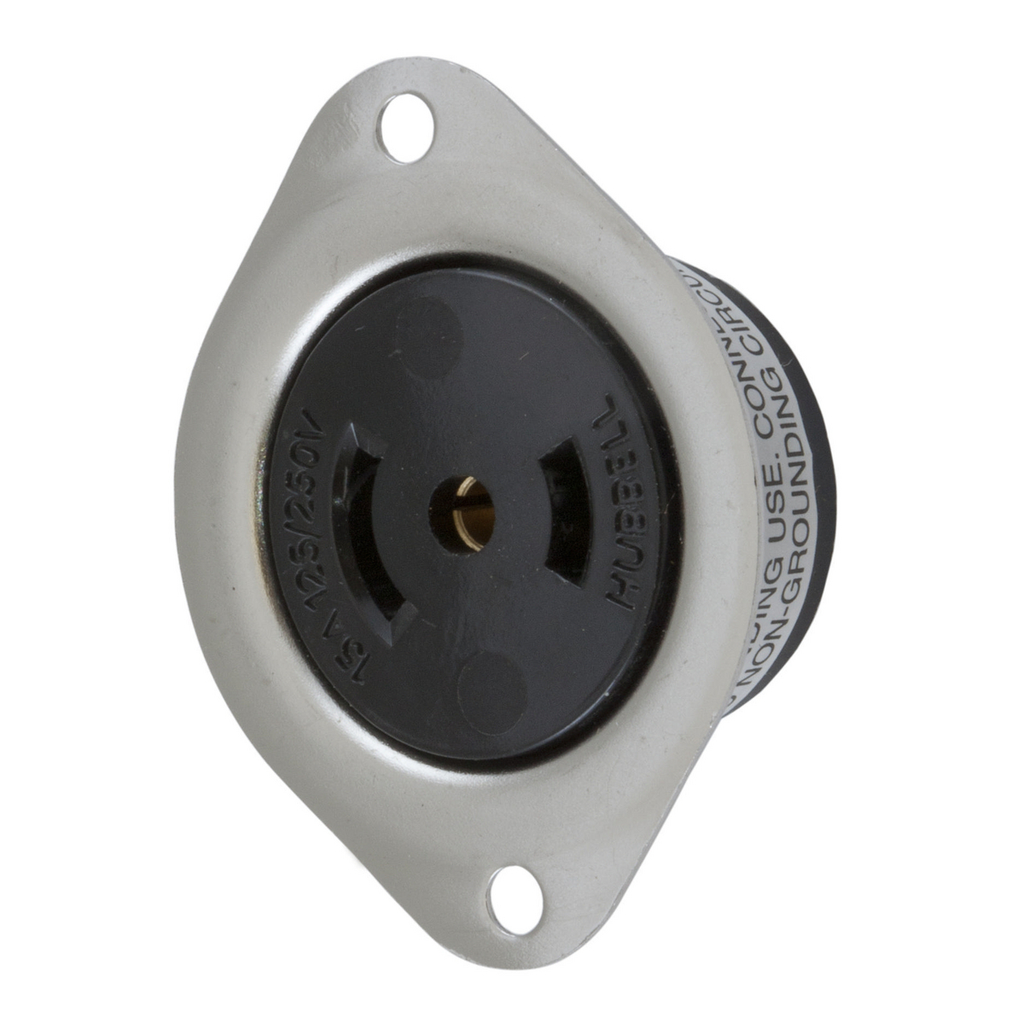

Locking Devices, Midget Twist-Lock® Industrial Flanged Receptacle - Heavy Duty Electrical Distributor Component
This locking device is a midget twist-lock flanged receptacle designed for heavy duty industrial applications. It supports 15A at 125/250V AC with a 3-pole, 3-wire non-grounding configuration. Suitable for use by electrical distributors and switchgear suppliers, it features a stainless steel flange and screw terminal connections, ensuring durability and secure mounting in electrical and lighting solutions.
Specifications
- Application: Heavy Duty Industrial
- Current: 15 amperes
- Amperage Rating: 15 A
- Voltage: 125/250V AC
- Number of Poles: 3-Pole
- Number of Wires: 3-Wire
- Material: Stainless Steel
- Mounting: Screw Mount
- Connection: Screw Terminals
- NEMA Rating: ML-3R
- Dielectric Strength: Withstands 2,000V minimum
- Width: 2.450 in
- Product Weight: 0.6740 lbs
- Environmental Conditions: Indoor Dry Unless Protected By Additional Means
- Country of Origin: United States
- Made in USA: Yes
- Manufacturer: Hubbell Wiring Device-Kellems
- Manufacturer Part #: HBL7487
Features
- Flanged receptacle design for secure installation
- Stainless steel flange provides corrosion resistance
- Screw terminal connections for reliable wiring
- Non-grounding 3-pole, 3-wire configuration compliant with NEMA ML-3R standards
- Designed for heavy duty industrial environments
