Locking Devices Midget Twist-Lock® Flanged Receptacle - Industrial Electrical Distributor Solution

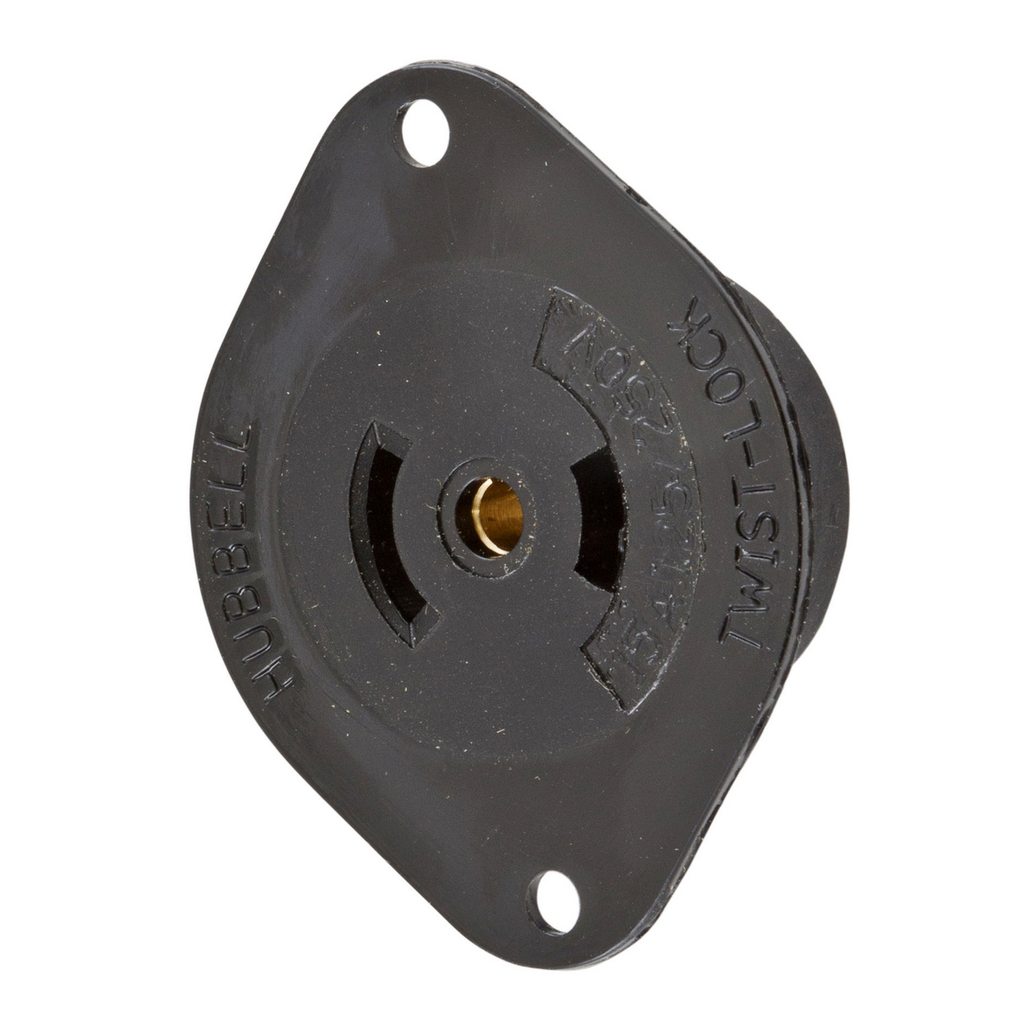

This 15A Midget Twist-Lock® flanged receptacle is designed for heavy duty industrial applications. It features a fully insulated black nylon casing with an integral flange, suitable for indoor dry environments unless additional protection is provided. Ideal for electrical distributors and lighting solutions requiring secure wire and cable connections, this device supports 3-pole, 3-wire non-grounding configurations with screw terminal connections, ensuring reliable and safe operation in switchgear and industrial equipment.

Specifications

• Application: Heavy Duty Industrial
• Material: Nylon
• Mounting: Screw Mount
• Connection: Screw Terminals
• Current Rating: 15 A
• Voltage Rating: 125/250 V AC
• Number of Poles: 3-Pole
• Number of Wires: 3-Wire
• NEMA Rating: ML-3R
• Dielectric Strength: Withstands 2,000V minimum
• Environmental Conditions: Indoor Dry Unless Protected By Additional Means
• Dimensions: 2.06 in (L) x 1.75 in (W) x 0.92 in (H)
• Weight: 0.05 lb
• Operating Temperature: Maximum continuous 75°C, Minimum -40°C without impact
• Wire Size: #18 AWG to #14 AWG
• Phase: Single Phase
• Country of Origin: United States

Features

• Fully insulated nylon casing with integral flange for durability and safety
• Black color designed to blend with equipment
• Certified for current interrupting at full rated current
• Flammability rating HB or better per UL94/CSA 22.2 No.0.17
• Moisture resistance rated IP20 suitability
• Terminals identified in accordance with UL 498 standards
• Accommodates #18 AWG to #14 AWG solid or stranded copper wire
• Manufactured in the USA by Hubbell Wiring Device-Kellems
