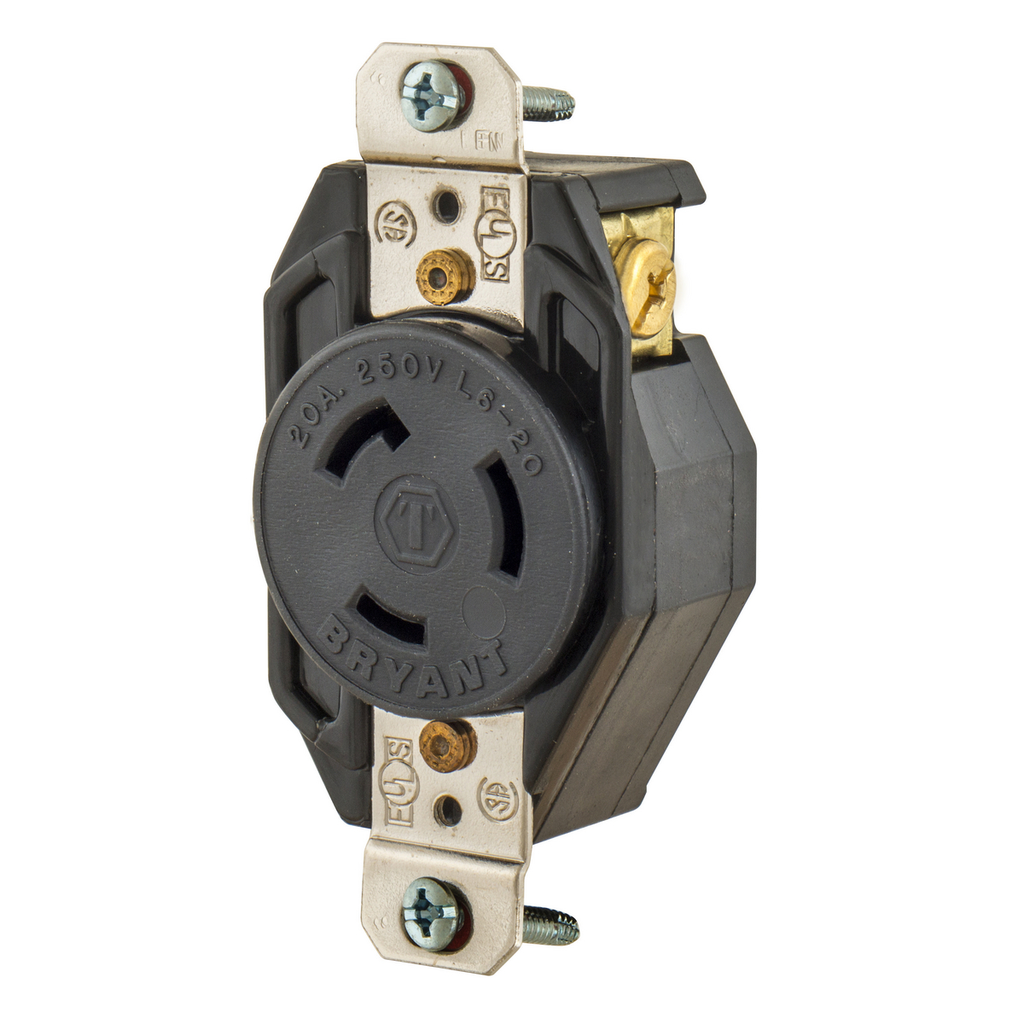

Features

• Combination back and side wiring terminals accept #14 through #8 AWG solid or stranded conductors
• Heavy duty mounting straps are nickel-plated to resist corrosion, wide width design assures secure assembly
• NEMA rating and configuration are molded into face for easy identification
• One-piece, rivetless copper-alloy contact design reduces heat buildup and provides secure blade retention
• Standard Product

Specifications

• Country of Origin: United States
• Dimensions: 3.28 in x 1.70 in x 1.24 in
• Width: 1.700 in
• Each - Width: 1.700 in
• Height: 1.24 in
• Length: 3.28 in
• Standards - RoHS Compliance Status: CM
• Amperage Rating: 20 A
• Application: Extra Heavy Duty Industrial Specification Grade
• Environmental Conditions: Indoor Dry Unless Protected By Additional Means
• NEMA Rating: L6-20R
• Number of Poles: 2-Pole
• Number of Wires: 3-Wire
• Phase: Single Phase
• Size: 3.28 in x 1.70 in x 1.24 in
• Special Features: Standard Product
• Type: Receptacle
• Voltage Rating: 250 V
• Wire Size: #14 AWG to #8 AWG
• Voltage Rating Description: 250V
• Connectivity: Terminal Screws
• Display Size: Standard Sized Product
• Nema Rating: L6-20R
• Number Of Poles: 2-Pole
• Number Of Wires: 3-Wire
• Style: Single Receptacle
• Class Code: A08
• Description - Invoice: LKG RCPT, 20A 250V, L6-20R, BK
• Freight Class Code: 06168002
• Harmonization Code: 8536698000
• Image Actual Or Representative: A
• MSDS Flag: No
• Sub Class Code: A08A172
• Material - Mounting Hardware: Screw Mounting
• Current Rating: 20 A
• Material: Composite
• Base Unit of Measure: EA
• BOX SIZE: 5.200x11.900x6.100 (in)
• Carton - Gross Weight per Pack: 2.95 lb.
• Carton - Number of Sub Packs: 10
• Carton - Pack Description: Carton
• Carton - SCC-14 Next Lower Level Sub Pack: 781786689237
• Carton - Total Units: 10 EA
• Case Weight: 2.274 lb.
• Each - Pack Description: Each
• Lowest Level UOM: Each
• Pallet Height: 46.800 in
• Pallet Length: 48.000 in
• Pallet Weight: 678.600 lb.
• Pallet Width: 40.000 in

Certifications

• EU RoHS Indicator: Yes
