Locking Devices, Hubbellock, Industrial, Steel Shroud, Male Plug, 30A 600V AC, 20A 250V DC, 4-Pole 5-Wire Grounding, Non NEMA, Screw Terminal, Black/White
SKU: #142616
Part: #HBL25415B
UPC: 783585017488
Locking Devices, Hubbellock, Industrial, Steel Shroud, Male Plug, 30A 600V AC, 20A 250V DC, 4-Pole 5-Wire Grounding, Non NEMA, Screw Terminal, Black/White
SKU: #142616
Part: #HBL25415B
UPC: 783585017488
Next day delivery
Description

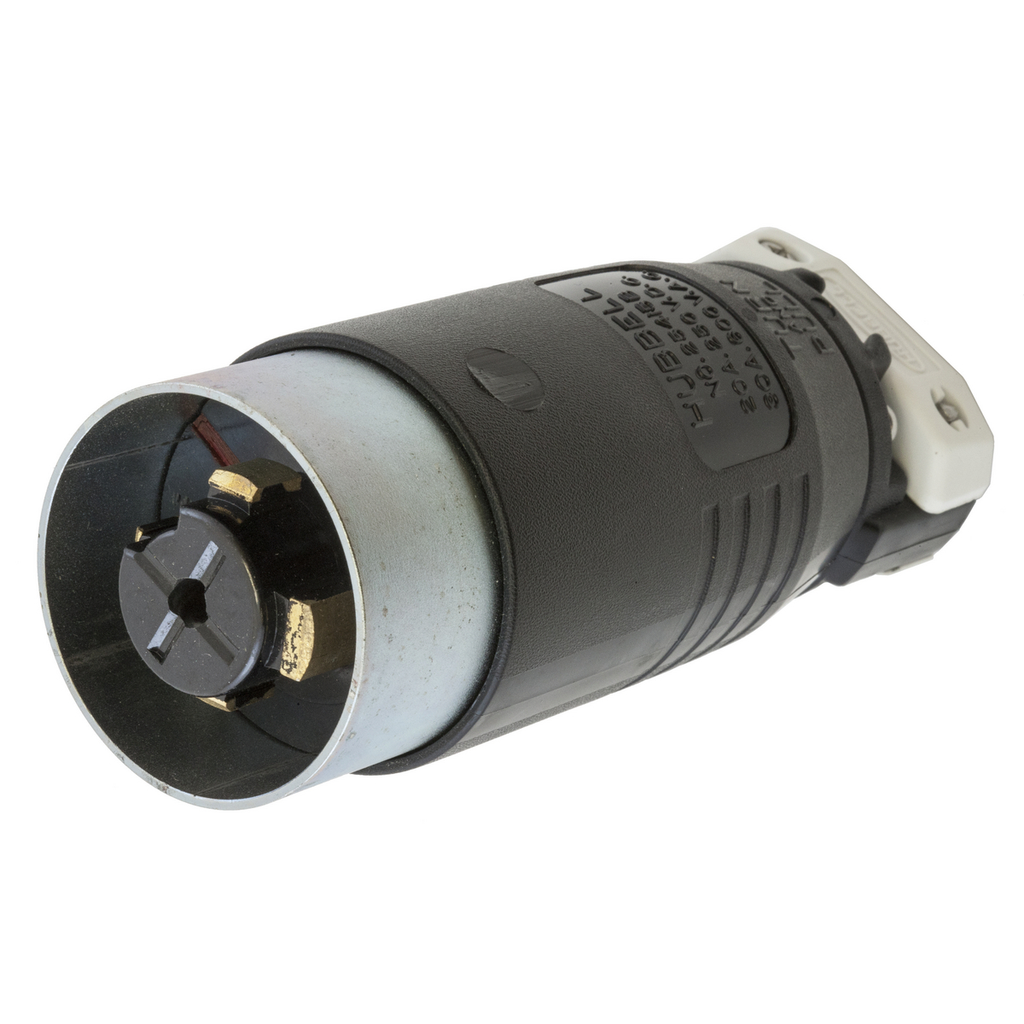

Locking Devices, Hubbellock Industrial Male Plug – Heavy Duty Electrical Connector
This Hubbellock locking device is an industrial-grade male plug designed for heavy duty applications requiring reliable and secure electrical connections. It supports both AC and DC currents with ratings up to 30A at 600V AC and 20A at 250V DC. The plug features a 4-pole, 5-wire grounding configuration, making it suitable for demanding environments served by electrical distributors and switchgear suppliers. Its robust nylon housing and steel shroud enhance durability and safety, while screw terminals ensure secure wire and cable connections. This product is ideal for indoor dry environments unless additional protection is applied.
Specifications
- Application: Heavy Duty Industrial
- Amperage Rating: 20/30 A
- Voltage Rating: 250 VDC / 600 VAC
- Number of Poles: 4-Pole
- Number of Wires: 5-Wire
- Wire Size: #10 AWG to #6 AWG
- Cable Range: 0.700 - 1.200 in
- Connection: Pressure Terminal Screws
- Material: Nylon housing with thermoset interior
- Color: Black/White
- Mounting: Cord Mounted
- Dimensions: 2.5 in (W) x 2.5 in (D) x 6.56 in (H)
- Product Weight: 1.4 lb
- Environmental Conditions: Indoor Dry unless protected by additional means
- NEMA Rating: Non-NEMA
- Dielectric Strength: Withstands 2,000V minimum
- Operating Temperature: Maximum continuous 75°C, minimum -40°C without impact
- Country of Origin: United States
- Manufacturer: Hubbell Wiring Device-Kellems
Features
- Molded-in male contacts resist damage and provide consistent positive connection
- Insulated non-metallic housing enhances safety and abuse resistance
- Box terminals with screws and pressure pads ensure maximum termination strength and dependability
- Three-piece clamp assembly provides maximum strain relief and protects against moisture and dust entry
- Assembly screws made of stainless steel; brass contacts; zinc-plated steel terminal screws
- Cord clamp material: PET
