Features

• Molded-in male contacts are resistant to damage and provide a consistently positive connection
• Insulated, color coded metallic housing enhances safety and abuse resistance
• Box terminals in conjunction with stainless steel terminal screws provide maximum termination strength and dependability

Specifications

• Country of Origin: United States
• Current / Amperage Rating: 60 A
• Dimensions: 3.03 in x 3.03 in x 5.90 in
• Width: 3.600 in
• Each - Width: 3.600 in
• Height: 5.90 in
• Industry Standard(s): Certified to CSA Standard;Listed to UL Standard
• Length: 3.03 in
• Performance: Electrical - Current Interrupting - Certified for current interrupting at full rated current;Electrical - Dielectric Voltage Withstand - 2,000V minimum;Environmental - Flammability - HB or better;Environmental - Moisture Resistance - IP30 Suitability;Environmental - Operating Temperatures - Maximum Continuous 75°C, Minimum -40°C (w/o impact);Mechanical - Terminal Accommodation - #8 AWG - #4 AWG stranded copper wire only.;Mechanical - Terminal Identification - Terminals identified in accordance with UL 498
• Standards - RoHS Compliance Status: CM
• Amperage Rating: 60 A
• Color: Yellow
• Number of Poles: 3-Pole
• Number of Wires: 4-Wire
• Size: 3.03 in x 3.03 in x 5.90 in
• Standard: Certified to CSA Standard;Listed to UL Standard
• Type: Plugs
• Voltage Rating: 600 V
• Wire Size: #8 AWG to #4 AWG
• Voltage Rating Description: 600 V
• Dielectric Strength: Withstands 2,000V minimum
• Number Of Poles: 3-Pole
• Number Of Wires: 4-Wire
• Operating Temperature: Maximum continuous 75°C and minimum -40°C without Impact
• Weight: 2.1 lb.
• Class Code: A08

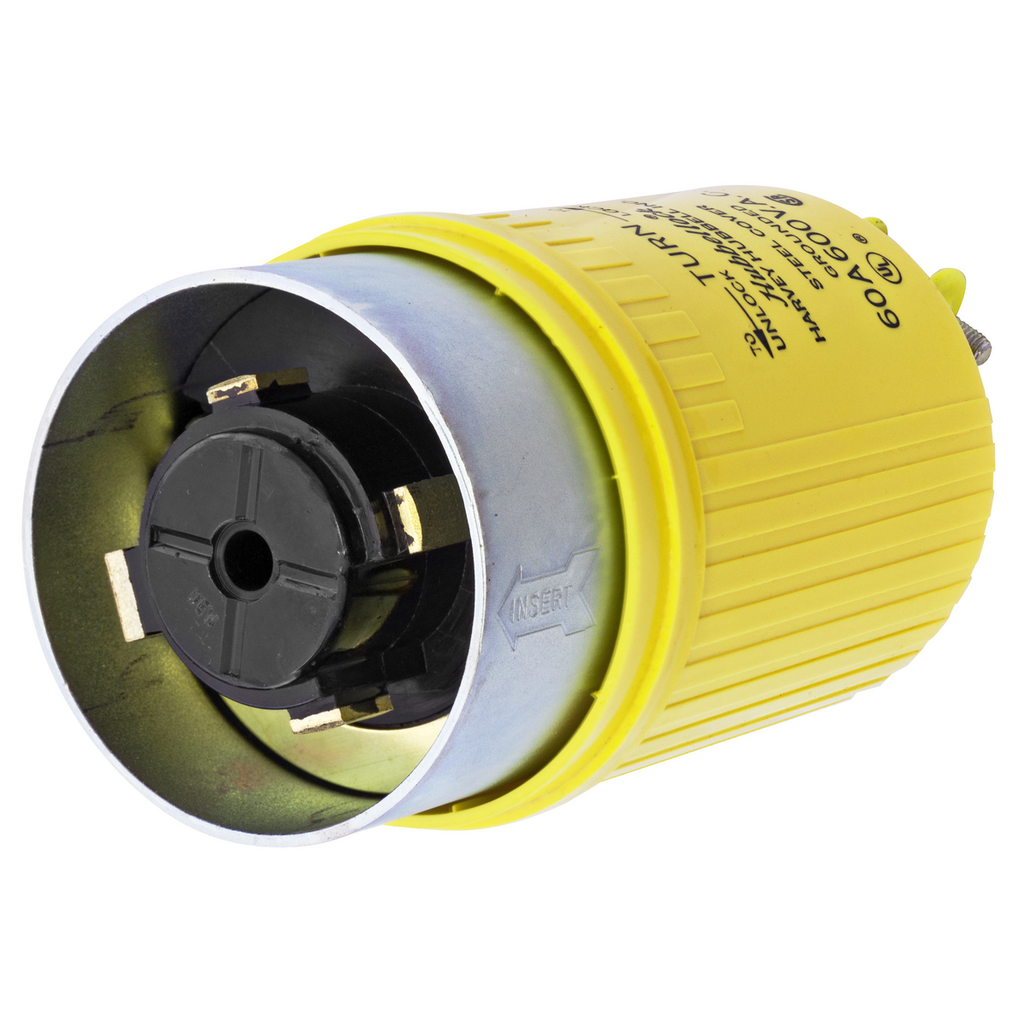

• Description - Invoice: H/LOCK PLUG, 3P4W, 60A 600V
• Freight Class Code: 06168002
• Harmonization Code: 8536694020
• Image Actual Or Representative: A
• MSDS Flag: No
• Replaced Catalog Number: 26419
• Sub Class Code: A08A170
• Cable Range: 0.920 - 1.450 in
• Cord Range: 0.920"-1.450"(23.36-36.83)
• Cord Diameter: 0.920-1.450 in
• Current Rating: 60 A
• Material: Nylon
• Base Unit of Measure: EA
• BOX SIZE: 4.200x17.600x7.700 (in)
• Carton - Gross Weight per Pack: 11.150 lb.
• Carton - Number of Sub Packs: 5
• Carton - Pack Description: Carton
• Carton - SCC-14 Next Lower Level Sub Pack: 00783585017327
• Carton - Total Units: 5 EA
• Case Weight: 3.429 lb.
• Pallet Height: 46.200 in
• Pallet Length: 48.000 in
• Pallet Weight: 1655.500 lb.
• Pallet Width: 40.000 in

Certifications

• EU RoHS Indicator: Contact Manufacturer
