Features

• Spring loaded safety shutter contains arcing when mating or un-mating devices under load
• Spring loaded safety shutter automatically ejects the plug eliminating contact teasing
• Box terminals in conjunction with stainless steel screws provide maximum termination strength and dependability
• Insulated, color coded metallic housing enhances safety and abuse resistance
• Standard Product

Specifications

• Country of Origin: United States
• Current / Amperage Rating: 60 A
• Dimensions: 3.19 in x 1.09 in x 5.44 in
• Width: 3.600 in
• Each - Width: 3.600 in
• Height: 5.44 in
• Industry Standard(s): Certified to CSA C22.2 No. 42;Listed to UL 498
• Length: 3.19 in
• Performance: Electrical - Current Interrupting - Certified for current interrupting at full rated current;Electrical - Dielectric Voltage Withstand - 2,000V minimum;Environmental - Flammability - UL 94 VO;Environmental - Moisture Resistance - IP30 Suitability;Environmental - Operating Temperatures - Maximum Continuous 75°C,Minimum -40°C (w/o impact);Mechanical - Terminal Accommodation - #8 AWG - #4 AWG stranded copper wire only.;Mechanical - Terminal Identification - Terminals identified in accordance with UL 498
• Amperage Rating: 60 A
• Application: Heavy Duty Industrial
• Color: Yellow
• Environmental Conditions: Indoor Dry Unless Protected By Additional Means
• Insulation: Insulated Body
• Number of Poles: 3-Pole
• Size: 3.19 in x 1.09 in x 5.44 in
• Special Features: Standard Product
• Standard: Certified to CSA C22.2 No. 42;Listed to UL 498
• Type: Connector Body
• Voltage Rating: 600 V
• Voltage Rating Description: 600 V
• Connectivity: Pressure Terminal Screws
• Dielectric Strength: Withstands 2,000V minimum
• Display Size: Standard
• Number Of Poles: 3-Pole
• Number Of Wires: 4-Wire
• Operating Temperature: Maximum continuous 75°C and minimum -40°C without Impact
• Weight: 2.45 lb.
• Wire Size: #8 AWG to #4 AWG
• Class Code: A08

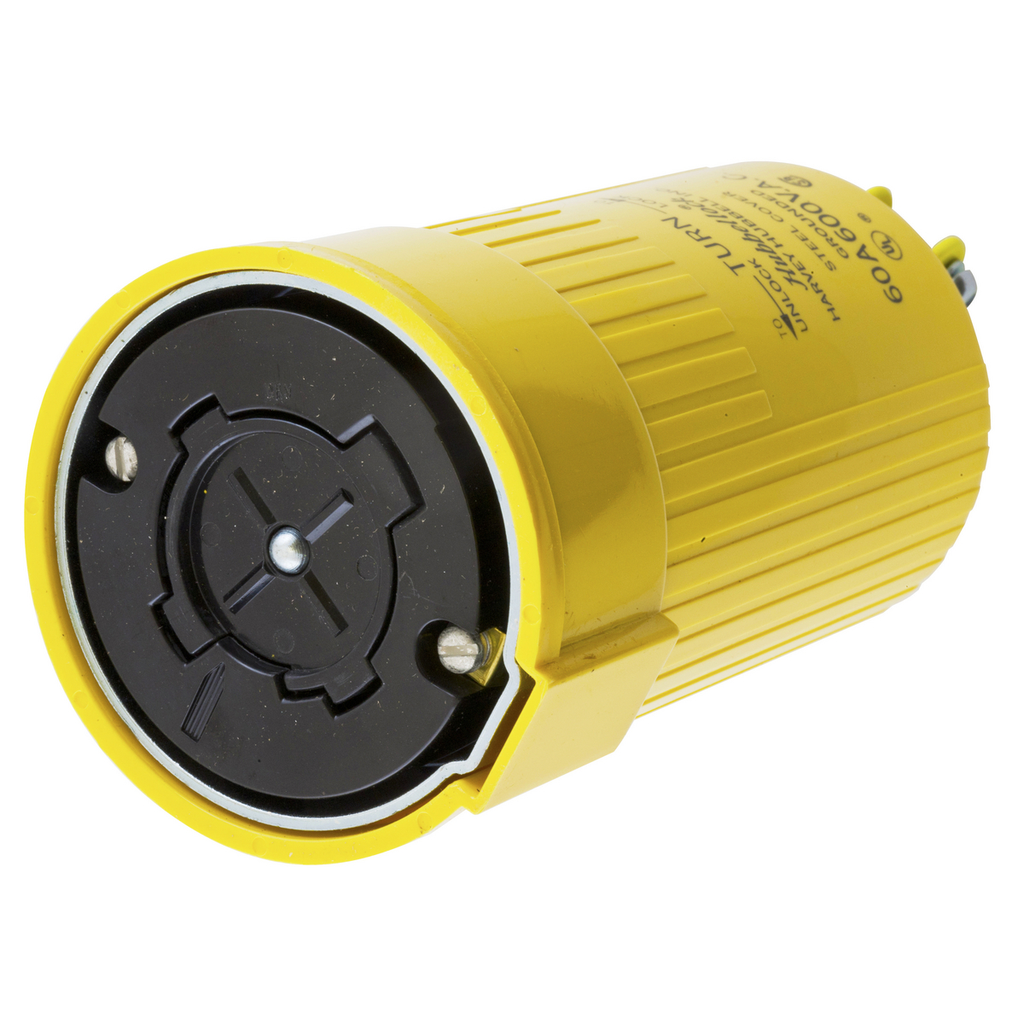

• Description - Invoice: H/LOCK CONN, 3P4W 60A 600V FEMALE
• Freight Class Code: 06168002
• Harmonization Code: 8536694020
• Image Actual Or Representative: A
• MSDS Flag: No
• Replaced Catalog Number: 26418
• Sub Class Code: A08A170
• Cable Range: 0.920 - 1.450 in
• Cord Range: 0.920"-1.450" (23.36-36.83)
• Material - Mounting Hardware: Cord Mounted
• Cord Diameter: 0.920-1.450 in
• Current Rating: 60 A
• Material: Steel
• Base Unit of Measure: EA
• BOX SIZE: 4.200x17.600x7.700 (in)
• Carton - Gross Weight per Pack: 12.95 lb.
• Carton - Number of Sub Packs: 5
• Carton - Pack Description: Carton
• Carton - SCC-14 Next Lower Level Sub Pack: 783585017310
• Carton - Total Units: 5 EA
• Case Weight: 3.429 lb.
• Each - Pack Description: Each
• Lowest Level UOM: Each
• Pallet Height: 46.200 in
• Pallet Length: 48.000 in
• Pallet Weight: 1955.800 lb.
• Pallet Width: 40.000 in

Certifications

• EU RoHS Indicator: No
