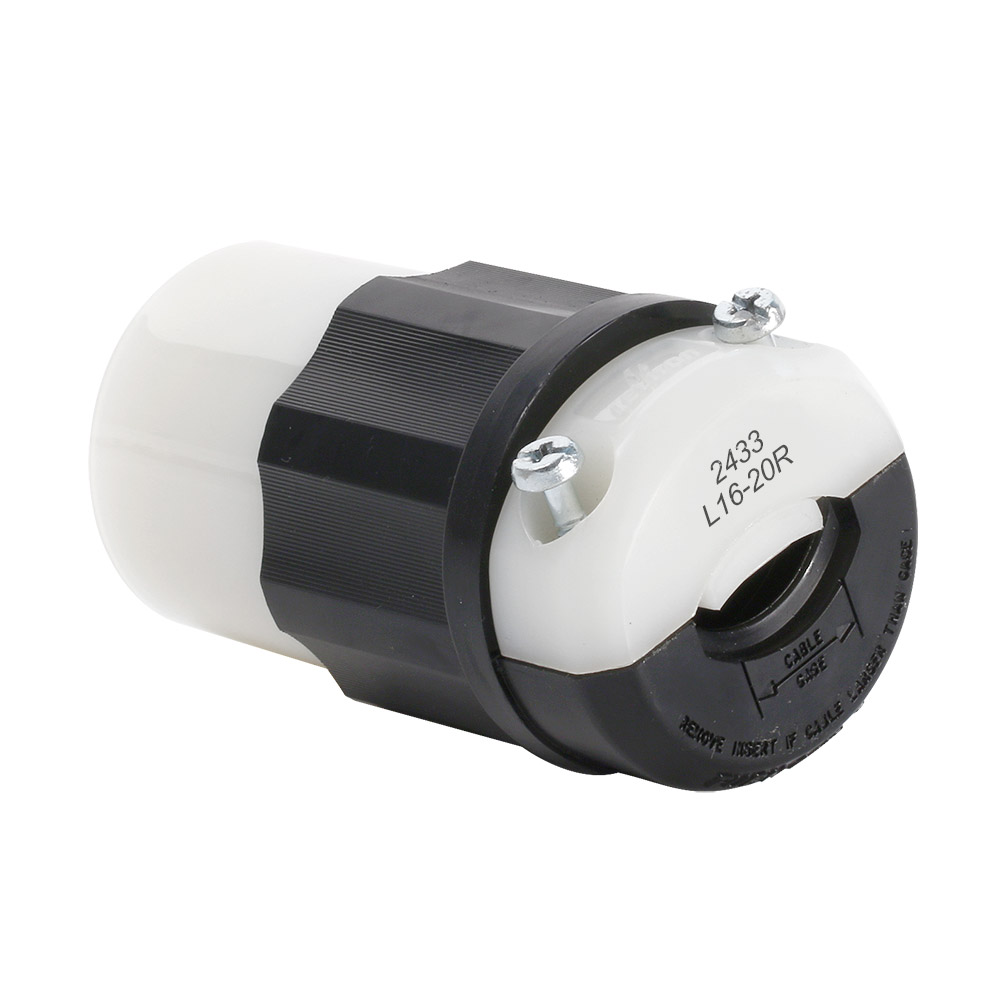

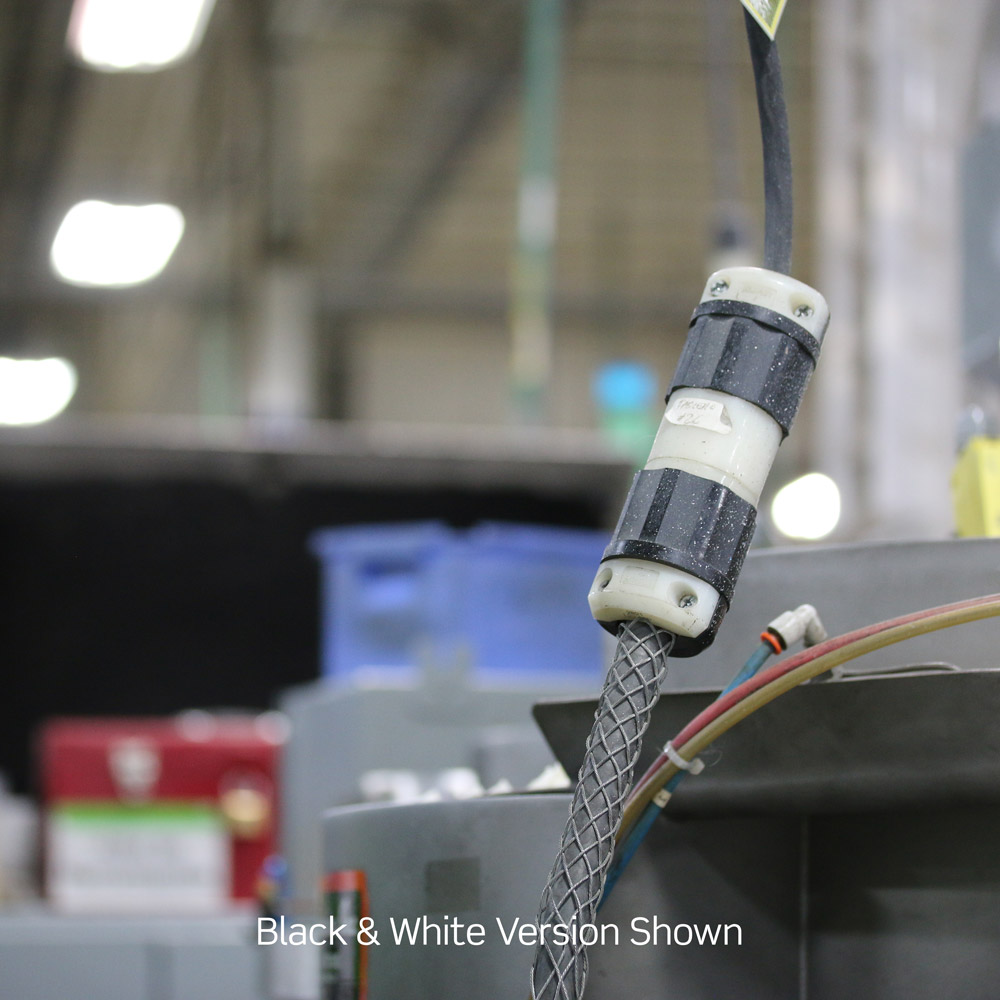

Locking Connector, 20 Amp, 480 Volt, Industrial Grade, Black & White - Electrical Connector

This locking connector is designed for industrial electrical applications requiring a secure 20 Amp, 480 Volt 3-phase connection. It features a NEMA L16-20R configuration with 3 poles and 4 wires, including grounding, suitable for use by electrical distributors, lighting solutions providers, wire and cable specialists, and switchgear suppliers. The device is constructed from impact-modified nylon for durability and rated for operation in temperatures down to -40°C. It meets electrical safety standards with a dielectric strength of 2000 volts and is compliant with NEMA WD-6 specifications.

Specifications

• Amperage: 20 amperes
• Voltage: 480 Volt, 3-Phase
• Number of Poles: 3
• Number of Wires: 4
• Device Type: Locking Connector
• Body Material: Impact Modified Nylon
• Color: Black
• Grounding: Grounding
• Dielectric Strength: 2000 volts
• Operating Temperature: -40 degrees Celsius
• NEMA Standard: WD-6
• Manufacturer: Leviton
• Manufacturer Part #: 2433
• Country of Origin: Mexico
• Flammability Class: Rated HB Or Better UL94
• Product Weight: 4.7 lbs

Features

• Industrial grade locking connector for secure electrical connections
• Compatible with copper or copper-clad wire only
• Strain relief design accommodates a range of cable diameters
• Meets NEMA L16-20R locking configuration for 3-phase, 4-wire systems
• Durable impact-modified nylon construction for enhanced mechanical strength
• Rated for use in harsh environments with UL94 HB or better flammability rating
• Designed for easy installation with clearly defined strip lengths and torque specifications
• Grounding feature ensures safety and compliance with electrical codes

Downloads & Links

• PK-93754-10-02-0C
• CATSTD-02433-000-D01
