LMSW-104-I, Digital Wall Switch
SKU: #251080
Part: #LMSW-104-I
UPC: 754182925575
LMSW-104-I, Digital Wall Switch
SKU: #251080
Part: #LMSW-104-I
UPC: 754182925575
Next day delivery
Description

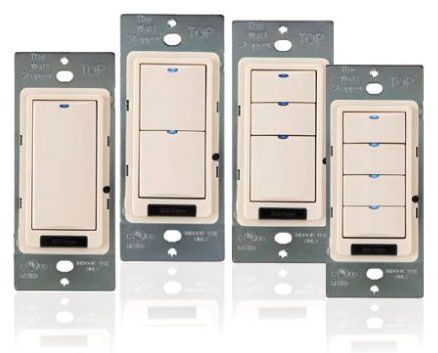

LMSW-104-I, Digital Wall Switch - Low Voltage Lighting Control
The LMSW-104-I is a 4-button digital wall switch designed for low voltage manual on/off control of multiple lighting loads within a Digital Lighting Management (DLM) system. Suitable for integration by electrical distributors and switchgear suppliers, this device enables precise control of lighting loads connected to Wattstopper DLM room controllers. It supports multi-way control and wireless configuration via infrared (IR) transceiver, making it a versatile component in advanced lighting solutions and wire and cable systems for indoor commercial environments.
Specifications
- Voltage: 24 VDC
- Current Consumption: 5 mA
- Power Supply: Wattstopper Room Controller
- Connection to DLM Local Network: 2 RJ-45 ports
- Network Topology: Free topology up to 1,000 ft max
- Operating Temperature: 32° to 131°F (0° to 55°C)
- Storage Temperature: 23° to 176°F (-5° to 80°C)
- Relative Humidity: 5 to 95% (non-condensing)
- Mounting Type: Box mount
- Color Finish: Ivory
- Product Weight: 2.84 lbs
- Country of Origin: China
- UPC: 754182925575
Features
- Four individual buttons capable of controlling multiple loads or scenes, with LED status indicators
- Hidden configuration button enabling patented Push n’ Learn™ technology for easy load binding and reconfiguration
- Infrared (IR) transceiver for wireless configuration and control
- Compatible with Wattstopper DLM system components on a free-topology Category 5e network
- Sleek single gang design fits standard decorator wall plates
- Supports multi-way control for flexible lighting management
- Six color options available with customizable engraving; standard buttons field-replaceable
- Designed for indoor use only, compliant with NEC and local codes
