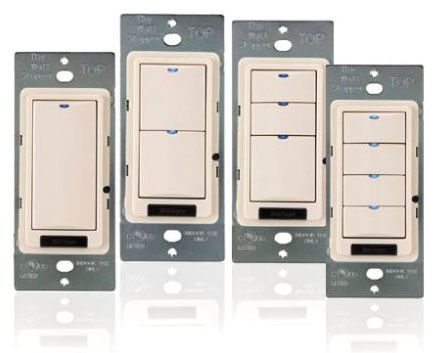

LMSW-102-I Digital Wall Switch for Lighting Control

The LMSW-102-I is a low voltage digital wall switch designed for manual on/off control of lighting loads within a Digital Lighting Management (DLM) system. It is intended for indoor use and connects to the DLM local network via Cat 5e cables with RJ45 connectors, facilitating seamless integration with Wattstopper room controllers. This switch is suitable for electrical distributors and lighting solutions providers seeking reliable wire and cable-compatible switchgear for energy-efficient lighting control.

Specifications

• Manufacturer: Wattstopper
• Manufacturer Part #: LMSW-102-I
• Voltage: 24 VDC (Class 2 power supplied from DLM local network)
• Current Consumption: 5 mA
• Connection: 2 RJ-45 ports for DLM local network
• Number of Buttons: 2 control buttons with LED status indicators
• Operating Environment: Indoor use only
• Operating Temperature: 32¬∞ to 131¬∞F (0¬∞ to 55¬∞C)
• Storage Temperature: 23¬∞ to 176¬∞F (-5¬∞ to 80¬∞C)
• Relative Humidity: 5% to 95% non-condensing
• Mounting Type: Box
• Finish: Ivory
• Product Weight: 2.8 lbs
• UL and cUL Listed, FCC Part 15 Compliant
• Warranty: Five year limited warranty

Features

• Plug n‚Äô Go‚Ñ¢ automatic configuration assigns loads to buttons upon system startup
• Push n‚Äô Learn‚Ñ¢ technology enables quick reconfiguration of button-to-load assignments
• Infrared (IR) transceiver allows wireless system configuration and remote control
• Blue LED indicates load status; red LED indicates configuration mode
• Supports multi-way control for multiple switch locations
• Sleek single gang design fits standard wall boxes and decorator wall plates
• Compatible with Digital Lighting Management system components for integrated control
• Meets RoHS material restrictions and available in multiple colors including ivory
