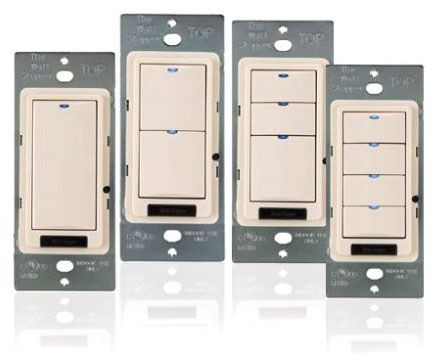

LMSW-102-G Digital Wall Switch by Wattstopper

The LMSW-102-G is a gray digital wall switch designed for low voltage manual on/off control of lighting loads within a Digital Lighting Management (DLM) system. This device is suitable for use by electrical distributors and switchgear suppliers offering advanced lighting solutions and wire and cable integration. It operates on 24VDC power supplied via the DLM local network and connects through two RJ-45 ports, ensuring easy integration into free-topology Cat 5e cable networks. The switch is ideal for indoor applications requiring multi-way control and energy-saving lighting management.

Specifications

• Manufacturer: Wattstopper
• Manufacturer Part #: LMSW-102-G
• Voltage: 24 VDC
• Current Consumption: 5 mA
• Power Supply: Wattstopper Room Controller
• Connection: 2 RJ-45 ports to DLM Local Network
• Operating Environment: Indoor use only
• Operating Temperature: 32¬∞ to 131¬∞F (0¬∞ to 55¬∞C)
• Storage Temperature: 23¬∞ to 176¬∞F (-5¬∞ to 80¬∞C)
• Relative Humidity: 5 to 95% non-condensing
• Mounting Type: Box mount
• Product Weight: 2.8 lbs
• Finish: Gray
• Dimensions: Fits standard single gang boxes (approx. 4.1" x 1.7" x 1.3")
• Number of Buttons: 2-button model
• UPC: 754182925483

Features

• Low voltage pushbutton switch for control of multiple lighting loads
• Plug n‚Äô Go‚Ñ¢ automatic load assignment for simple startup configuration
• Push n‚Äô Learn‚Ñ¢ technology for quick and flexible button-to-load personalization
• LED indicators for load status and configuration feedback
• Infrared (IR) transceiver for wireless configuration and remote control
• Supports multi-way control with multiple switches on the same network
• Compatible with Digital Lighting Management system components via Cat 5e cabling
• Sleek design fits decorator-style wall plates
• Meets RoHS material restrictions
• UL and cUL listed, FCC part 15 compliant
• Five-year manufacturer warranty
