Features

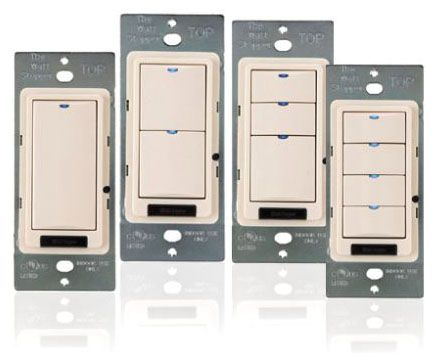

• LMSW-100 Series Digital Wall Switches are Low Voltage Device for Energy Saving Manual On/Off Control of One or More Loads from One or More Locations
• They are Part of a Digital Lighting Management (DLM) System and Can Control any Load(S) Connected to DLM Room Controllers
• Low Voltage Pushbutton Switches for Control of Multiple Loads
• Components of Digital Lighting Management Integrated Control System
• Plug to Other Components Using Category 5E Cables with RJ45 Connectors Eliminating Wiring Errors
• Customizable Buttons with LED Status Indicators
• IR Transceiver for Wireless Configuration and Remote Control
• Hidden Configuration Button for Easy Access to Push N Learn
• Digital Lighting Management Components Plug Together on a Free-Topology Category 5E DLM Local Network
• Infrared (IR) Transceiver for Wireless Configuration and Control
• Each Button Can Control Individual or Multiple Loads or One Scene
• Each Switch Button Can be Used to Dim the Load
• Switches May be Used for Multi-Way Control
• Standard Buttons May be Replaced in the Field
• RoHS Compliant

Additional Information

• Temperature Rating 32 to 131 Deg F

Specifications

• Type: Digital, 1-Button
• Sensor Type: Infrared Transceiver
• Voltage Rating: 24 VDC
• Load Type: Lighting
• Load Rating: 5 Milliampere
• Wall Plate Type: Decorator (Not Included)
• Finish: Light Almond
• Mounting: Box
• Size: 1.7 Inch W x 1.3 Inch D x 4.1 Inch H
• Application: Office, Conference Room, Class Room
• Approval: UL, CUL
• Series/Model: LMSW-100
