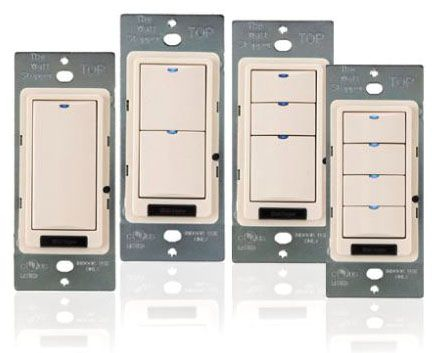

LMSW-101-G Digital Wall Switch - Low Voltage Lighting Control

The LMSW-101-G Digital Wall Switch by WattStopper is a low voltage device designed for energy-saving manual on/off control of one or more loads from multiple locations. It integrates into the Digital Lighting Management (DLM) system, enabling control of any loads connected to DLM room controllers. This switch is suitable for indoor use and is ideal for electrical distributors and lighting solutions providers seeking reliable wire and cable compatible switchgear suppliers.

Specifications

• Voltage: 24 VDC
• Current Consumption: 5 mA
• Power Supply: WattStopper Room Controller
• Connection to DLM Local Network: 2 RJ-45 ports
• Network Characteristics: Low voltage power over Cat 5e cable, max current 800 mA; supports up to 64 load addresses and 48 communicating devices
• Operating Temperature: 32° to 131°F (0° to 55°C)
• Storage Temperature: 23° to 176°F (-5° to 80°C)
• Relative Humidity: 5 to 95% (non-condensing)
• Weight: 2.86 lbs
• Finish: Gray

Features

• Pre-set for Plug n’ Go™ operation with optional adjustment via patented Push n’ Learn™ technology
• Manual on/off control of multiple loads from one or more locations
• Blue load status LED(s) and red configuration LED for easy status indication
• Compatible with DLM Local Network devices, enabling free topology wiring up to 1,000 feet
• Fits standard single and multi-gang boxes for flexible installation
• Designed for indoor use with compliance to applicable local and NEC codes
