LL22B/F13 Compact Fluorescent Outdoor Lighting Fixture

The LL22B/F13 is a rugged outdoor lighting fixture designed for durable weatherproofing and easy relamping, suitable for electrical distributors and lighting solutions providers. It features a die-cast aluminum housing with a powder coat finish and a threaded, gasketed clear glass globe that protects against weather, garden sprinklers, and insects. This fixture is ideal for wire and cable applications requiring a reliable switchgear supplier for outdoor lighting needs.

Specifications

• Manufacturer: RAB
• Manufacturer Part #: LL22B/F13
• Input Wattage: 17 watts
• Lumens: 860 lumens
• Efficacy: 50 lumens per watt
• Product Weight: 2.7 lbs
• Voltage: 120 volts AC
• Socket: Medium base porcelain with all copper electrical parts and 20" leads, including ground lead
• Lamp Type: Compact Fluorescent 13W quad tube (GX23-2 base)

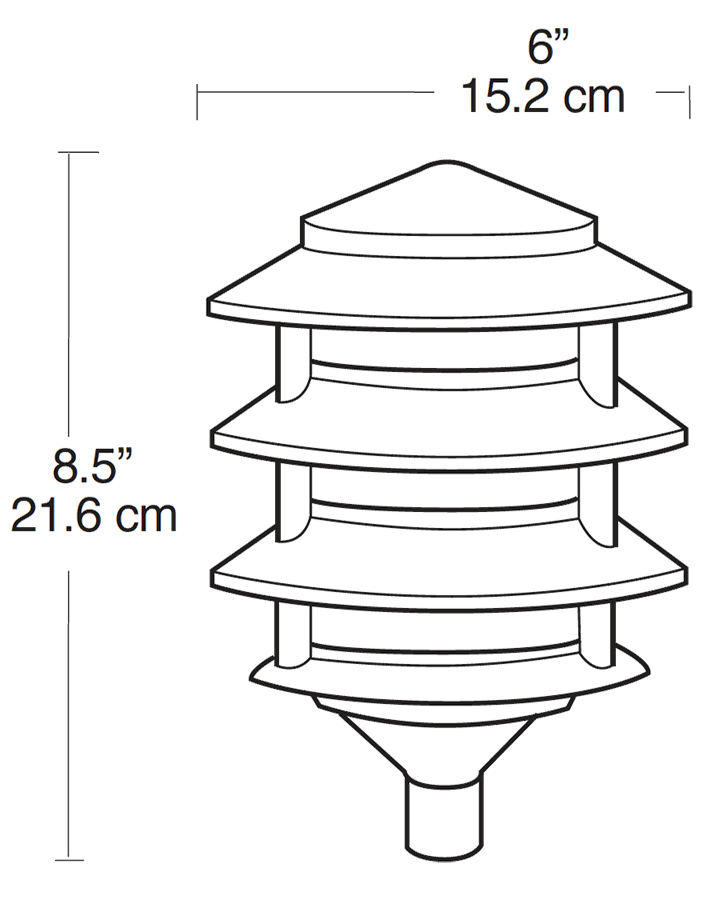

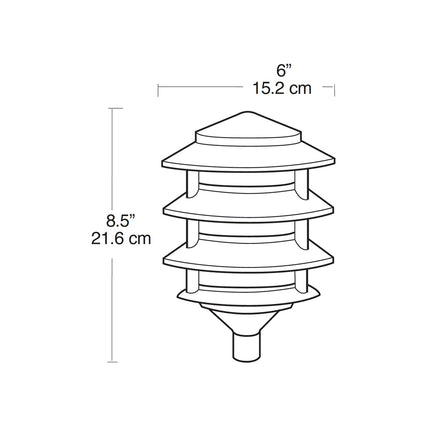

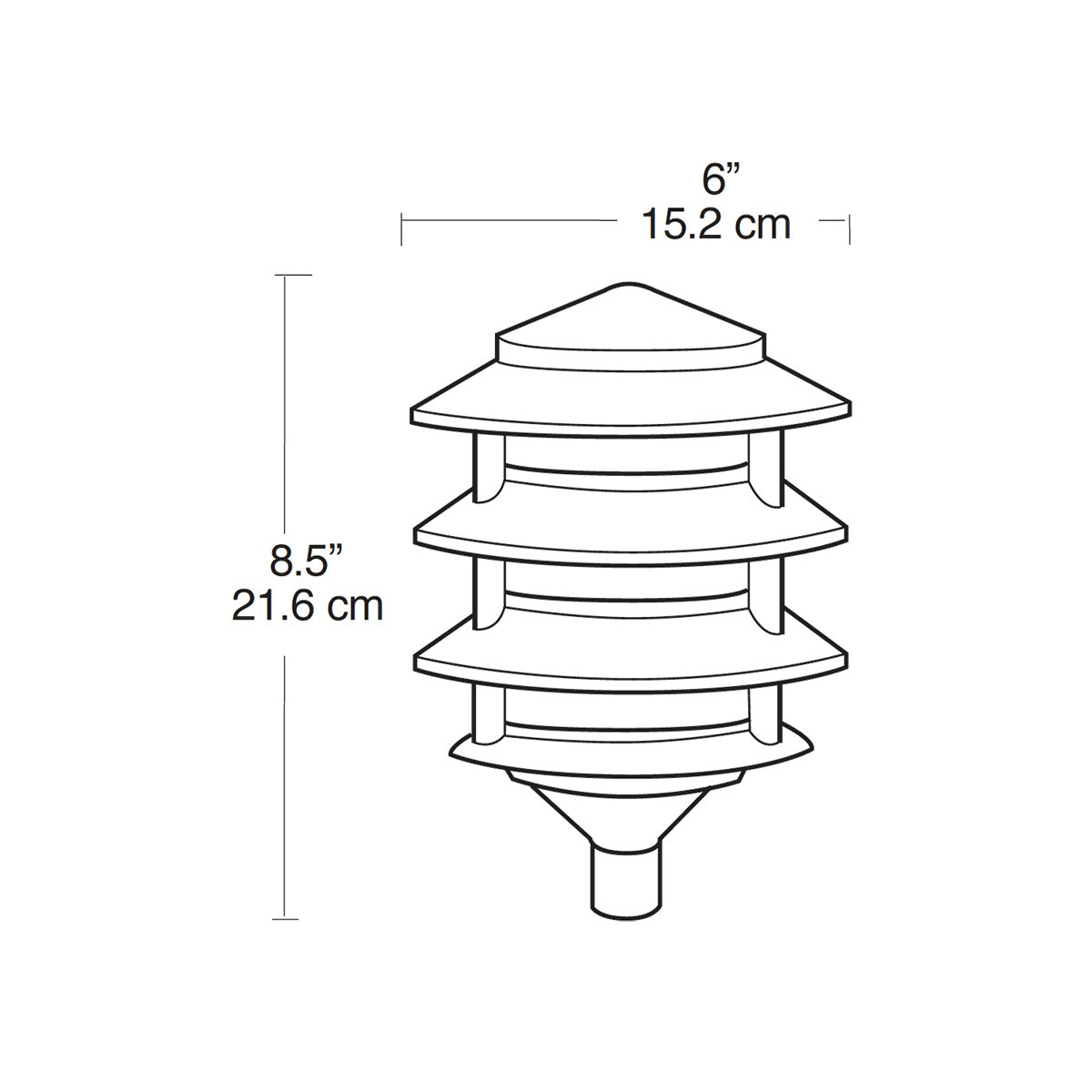

• Dimensions: 6" diameter x 8.5" height (15.2 cm x 21.6 cm)
• Mounting: Includes 1/2" threaded nipple for easy mounting; optional 12" color-matched mounting stem with 1/2" threads available
• UL Listed: Suitable for wet locations and mounting within 4 feet of the ground
• Ballast: NPF 120V, 0.3A
• Ballast Minimum Starting Temperature: 32°F

Features

• Rugged die-cast aluminum housing with durable powder coating
• Threaded, gasketed clear glass globe for weatherproofing and easy relamping
• Socket with all copper electrical parts and 20" leads for reliable electrical connections
• Quick and secure installation with one corrosion-proof locking screw
• Includes easy mounting 1/2" threaded nipple
• Optional 12" color-matched mounting stem with 1/2" threads available
