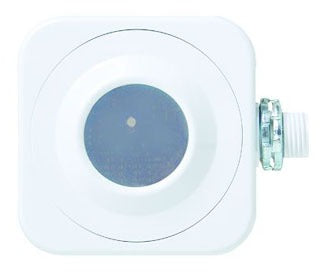

LITHONIA CMRB6 FIXTURE MOUNT BOX SENSOR, HIGH BAY 360 - High Bay Occupancy Sensor

The Lithonia CMRB6 Fixture Mount Box Sensor is a line voltage high bay occupancy sensor designed for mounting heights up to 45 feet. It provides 360° passive infrared (PIR) detection with a 15 to 20-foot radial coverage pattern that overlaps the area lit by a typical high bay fixture. Ideal for individual on/off control of T5/T8 fluorescent lighting, this sensor mounts directly to lighting fixtures and is suitable for various indoor applications including warehouses, manufacturing, education, healthcare, retail, and transportation. It is compatible with electronic and magnetic ballasts, CFLs, LEDs, and incandescent lamps, making it a reliable component for electrical distributors and lighting solutions providers.

Specifications

• Manufacturer: Lithonia Lighting
• Model Number: CMRB 6
• Coverage Pattern: 360° High Bay
• Mounting: Fixture Attached via 1/2" knockout
• Dimensions: 3.63" H x 3.63" W x 1.50" D (9.22 cm x 9.22 cm x 3.81 cm)
• Weight: 6 oz (0.38 lbs)
• Material: Plastic
• Color: White
• Maximum Load: 800W @ 120 VAC, 1200W @ 277 VAC, 1500W @ 347 VAC
• Motor Load: 1/4 HP
• Frequency: 50/60 Hz
• Dimming Load: Sinks < 20 mA; supports approximately 40 ballasts @ 0.5 mA each
• Environmental Conditions: Indoor use
• UPC: 745975808359

Features

• 100% Digital PIR Detection with excellent RF immunity
• Self-contained relay; no external power pack required
• No minimum load requirements
• Compatible with electronic & magnetic ballasts, CFLs, LEDs, and incandescent lamps
• Interchangeable hot and load wires, preventing wiring errors
• Push-button programmable with adjustable time delays
• Non-volatile memory retains settings during power loss
• No field calibration or sensitivity adjustments required
• Convenient test mode for easy commissioning
• 100-hour lamp burn-in timer to extend lamp life
• RoHS compliant
