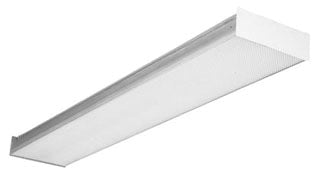

LITH TSB-2-32-MVOLT-1/4-GEB10IS Wra Lighting Fixture

The LITH TSB-2-32-MVOLT-1/4-GEB10IS is a narrow body square-basket wraparound lighting fixture designed for commercial and residential applications requiring high light levels with a clean flat-bottom diffuser appearance. It is suitable for storage rooms, offices, and retail lighting solutions, making it a reliable option for electrical distributors and switchgear suppliers focusing on wire and cable integration and lighting systems.

Specifications

• Manufacturer: Lithonia Lighting
• Manufacturer Part #: TSB 2 32 MVOLT 1/4 GEB10IS
• Country of Origin: Mexico
• Product Weight: 17 lbs
• Voltage: Multi-Volt (MVOLT)
• Lamp Type: 2 lamps, 32W T8 (48")
• Length: 48 inches (122.0 cm)
• Width: 8-3/8 inches (21.2 cm)
• Depth: 2-5/8 inches (6.7 cm)
• Ballast: Electronic ballast GEB10IS, <10% THD, instant start
• Finish: High-gloss baked white enamel with five-stage iron-phosphate pretreatment for rust resistance
• Diffuser: Extruded clear acrylic with linear side prisms and pyramidal bottom prisms
• Certifications: UL Listed, CSA Certified, NOM Certified (optional)
• Suitable for damp locations

Features

• Clean flat-bottom diffuser design for uniform light distribution
• Linear side prisms control brightness; pyramidal bottom prisms minimize lamp image
• Die-formed cold-rolled steel construction with continuous side flanges for light trap and diffuser support
• Tool-free channel cover snap-in for easy maintenance
• Full depth, white enamel end plates factory installed to reduce installation labor
• Thermally protected, resetting, Class P, HPF ballast for reliable electrical performance
• Energy-saving electronic ballast rated sound level A
• Compatible with surface or stem mounting, suitable for individual or row installation
• Includes internal fast-blow fuse option and emergency battery pack options
