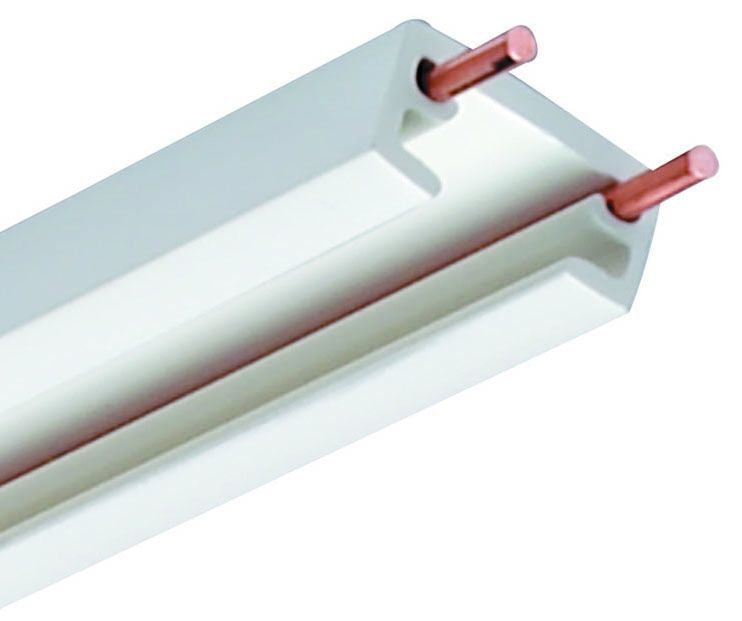

LITH TLV 8FT WH Trac 12 Low Voltage Track Section

The LITH TLV 8FT WH is an 8-foot low voltage track section designed for miniature 20-amp electrical track systems. Manufactured by Juno Lighting in the United States, this white thermoplastic track section is optimized for surface mounting in diverse applications including automotive, education, government, healthcare, hospitality, office, residential, retail, and sports and recreation environments. It is suitable for use by electrical distributors and lighting solutions providers specializing in wire and cable and switchgear supply, facilitating NEC code-compliant installations with compatible accessories and lampholders.

Specifications

• Manufacturer Part #: TLV 8FT WH
• Color: White
• Mounting: Track/Monopoint
• Product Weight: 2.7 lbs
• Country of Origin: United States
• Made in USA: Yes
• Electrical Rating: 20 amps at 12 or 24 volts (from product literature)
• Construction: Extruded ABS/Polycarbonate thermoplastic for strength and heat resistance (from product literature)
• Conductors: Two 12 gauge solid copper conductors (from product literature)
• Dimensions: Actual length 92-5/8 inches (from product literature)

Features

• Ultra-miniature, single-circuit track section for low voltage operation
• Integral terminal block feed/straight connector included
• Compatible with right-angle, adjustable joiner, and conduit/J-box mounting accessories
• Accepts all Trac 12 cove, accent, and pendant lampholders
• Can be cut to length by installer for custom sizing
• UL listed and CSA certified for safety compliance
• Includes toggle bolts for secure surface mounting
