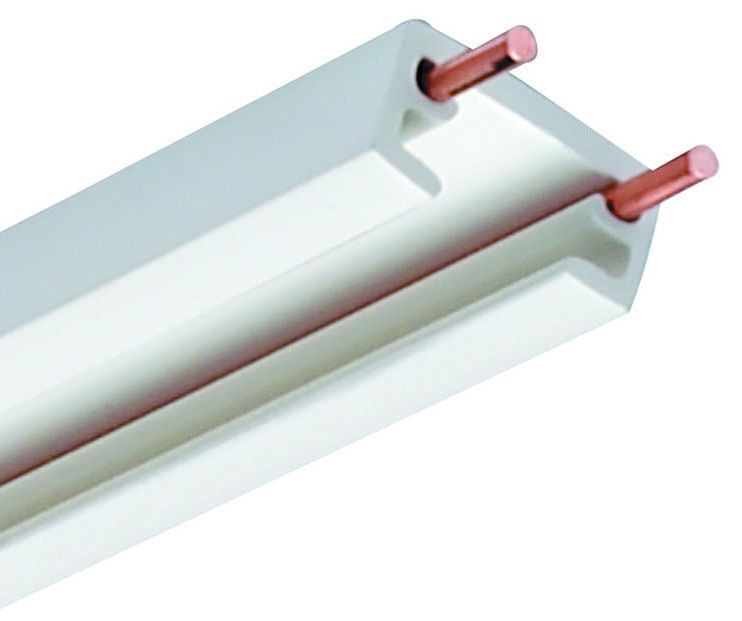

LITH TLV 4FT WH Trac 12 Low Voltage Track System

The LITH TLV 4FT WH is a 4-foot low voltage track section designed for miniature 20-amp Trac 12 lighting systems, ideal for precise and compact lighting solutions. Manufactured by Juno Lighting in the United States, this white track section is suitable for surface mounting on tracks or monopoints. It supports 12-volt or 24-volt step-down transformers and is compatible with a variety of Trac 12 lampholders, making it a reliable component for electrical distributors and lighting solutions providers focusing on wire and cable and switchgear supply for commercial and residential applications.

Specifications

• Manufacturer Part #: TLV 4FT WH
• Color: White
• Mounting: Track/Monopoint
• Product Weight: 0.83 lbs
• Made in USA: Yes
• Country of Origin: United States
• Compatible Voltage: 12V or 24V step-down transformers
• Electrical Rating: 20 amps
• Construction: Extruded ABS/Polycarbonate for strength and heat resistance
• Conductors: Two 12 gauge solid copper conductors
• Standard Length: 4-foot track section (actual length 44-5/8")
• UL Listed and CSA Certified

Features

• Ultra-miniature, single-circuit trac section for low voltage lighting
• Integral terminal block feed/straight connector included
• Compatible with right-angle, adjustable joiner, and conduit/J-box mounting accessories
• Permits NEC code-compliant installations
• Accepts all Trac 12 cove, accent, and pendant lampholders
• Can be cut to length by the installer
• Supplied with toggle bolts for surface mounting
