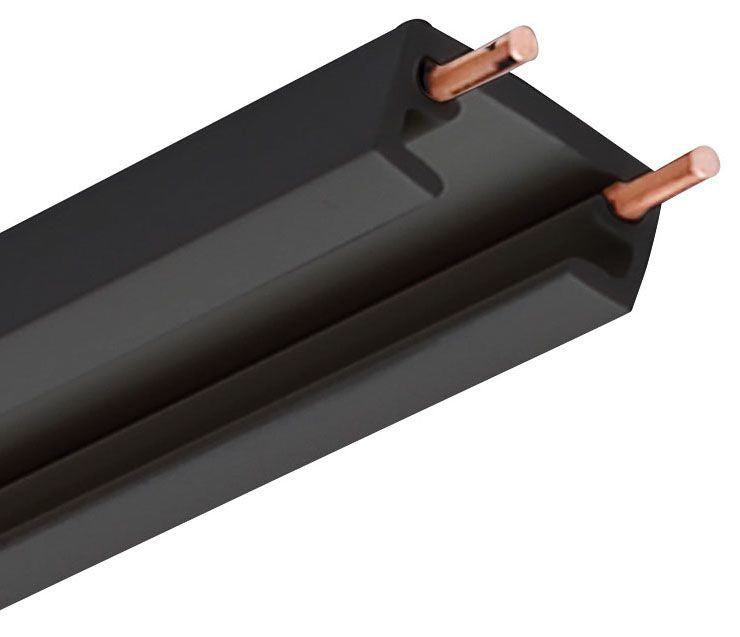

LITH TLV 4FT BL Trac 12 Low Voltage Track System

The LITH TLV 4FT BL Trac 12 is an ultra-miniature, low voltage track section designed for use in electrical distribution and lighting solutions, particularly suited for wire and cable installations in commercial and residential environments. This 4-foot track section supports 12-volt or 24-volt step-down transformers and is compatible with a wide range of Trac 12 lampholders, making it ideal for accent, cove, and pendant lighting applications. It is well-suited for diverse sectors including automotive, education, healthcare, hospitality, offices, retail, sports, and residential spaces.

Specifications

• Manufacturer: Juno Lighting
• Manufacturer Part #: TLV 4FT BL
• Color: Black
• Mounting: Track/Monopoint
• Product Weight: 0.8150 lbs
• Country of Origin: United States
• Made in USA: Yes
• Electrical: Two 12 gauge solid copper conductors, rated 20 amps at 12 or 24 volts
• Dimensions: Actual length 44-5/8 inches (4-foot track section)
• Construction: Extruded ABS/Polycarbonate for strength and heat resistance with injection molded polycarbonate terminal block feed/straight connector assembly
• Certifications: UL listed, CSA certified
• UPC: 661209952448
• Applications: Automotive & Parking, Education, Government, Healthcare, Hospitality, House of Worship, Offices & Banks, Residential, Retail, Sports and Recreation

Features

• Ultra-miniature single-circuit trac section for low voltage operation
• Integral terminal block feed/straight connector included
• Compatible with right-angle, adjustable joiner, and conduit/J-box mounting accessories for NEC code-compliant installations
• Accepts all Trac 12 cove, accent, and pendant lampholders
• Surface mount track with toggle bolts included for secure installation
• Standard lengths may be cut to length by installer for custom applications
• Supports up to 20 amps at 12 or 24 volts for efficient power handling
• Black finish provides a sleek, professional appearance suitable for various design environments
• 1-year limited warranty
