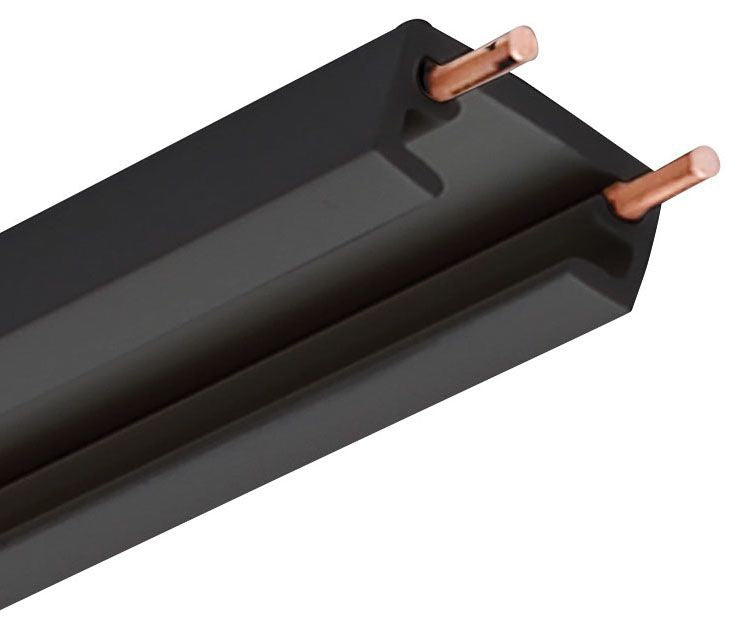

LITH TLV 2FT BL Trac 12 Low Voltage Track System

The LITH TLV 2FT BL is a 2-foot low voltage track section designed for miniature 20-amp electrical track lighting systems. It is engineered for surface mounting on track or monopoint setups, making it suitable for a wide range of commercial and residential lighting applications including automotive, education, healthcare, hospitality, offices, retail, and sports facilities. This track section operates with 12-volt or 24-volt step-down transformers and is compatible with all Trac 12 cove, accent, and pendant lampholders, making it a versatile component for lighting distributors and switchgear suppliers focused on wire and cable lighting solutions.

Specifications

• Manufacturer: Juno Lighting
• Manufacturer Part #: TLV 2FT BL
• Color: Black
• Mounting: Track/Monopoint
• Electrical Capacity: 20 amps at 12 or 24 volts
• Conductors: Two 12 gauge solid copper
• Material: Extruded ABS/Polycarbonate for strength and heat resistance
• Product Weight: 0.5130 lbs
• Country of Origin: United States
• Made in USA: Yes
• UPC: 661209952431
• Dimensions: Actual length 20-5/8 inches

Features

• Ultra-miniature, single-circuit track section for low voltage lighting
• Integral terminal block feed/straight connector included
• Compatible with right-angle, adjustable joiner, and conduit/J-box mounting accessories
• NEC code-compliant installation capable
• Accepts all Trac 12 lampholders for cove, accent, and pendant lighting
• Injection molded polycarbonate terminal block and dead-end with set screw
• Can be cut to length by installer to fit project requirements
• UL listed and CSA certified
