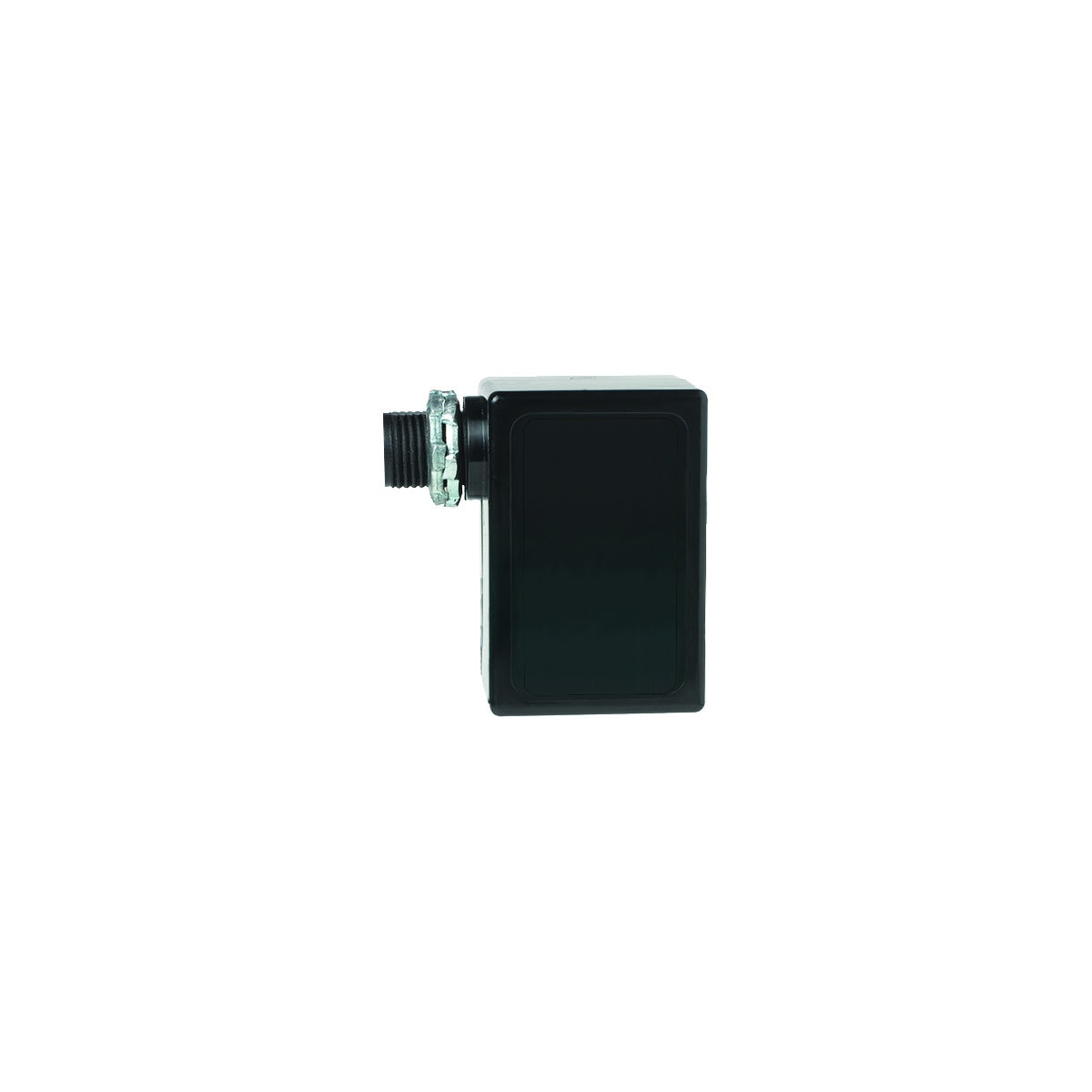

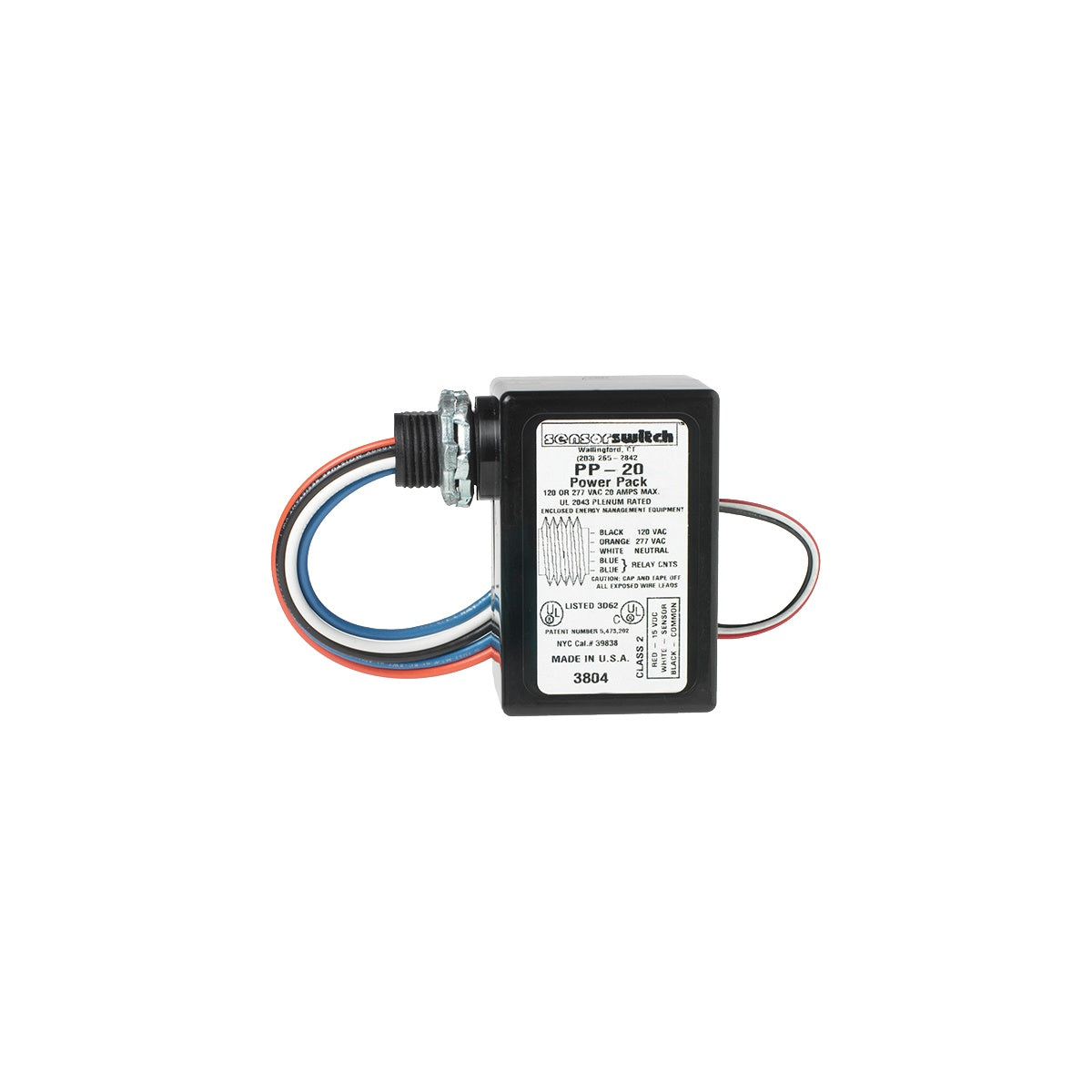

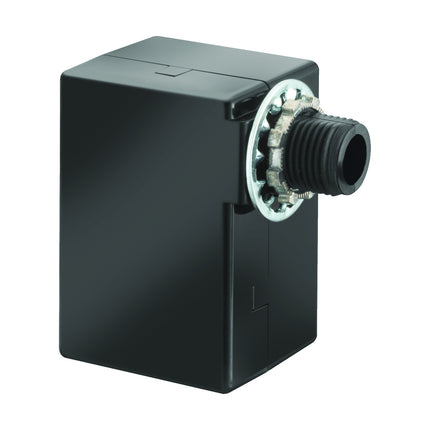

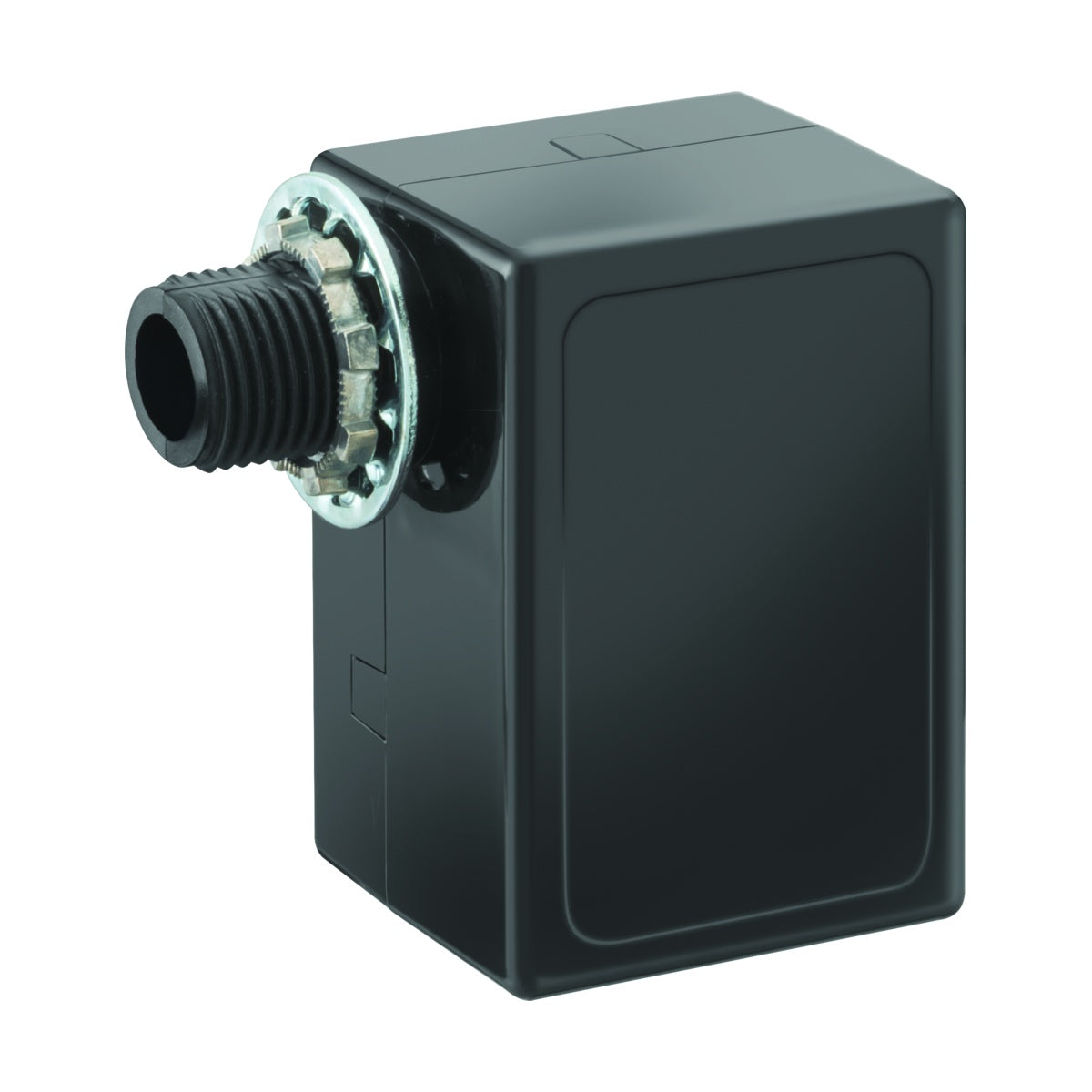

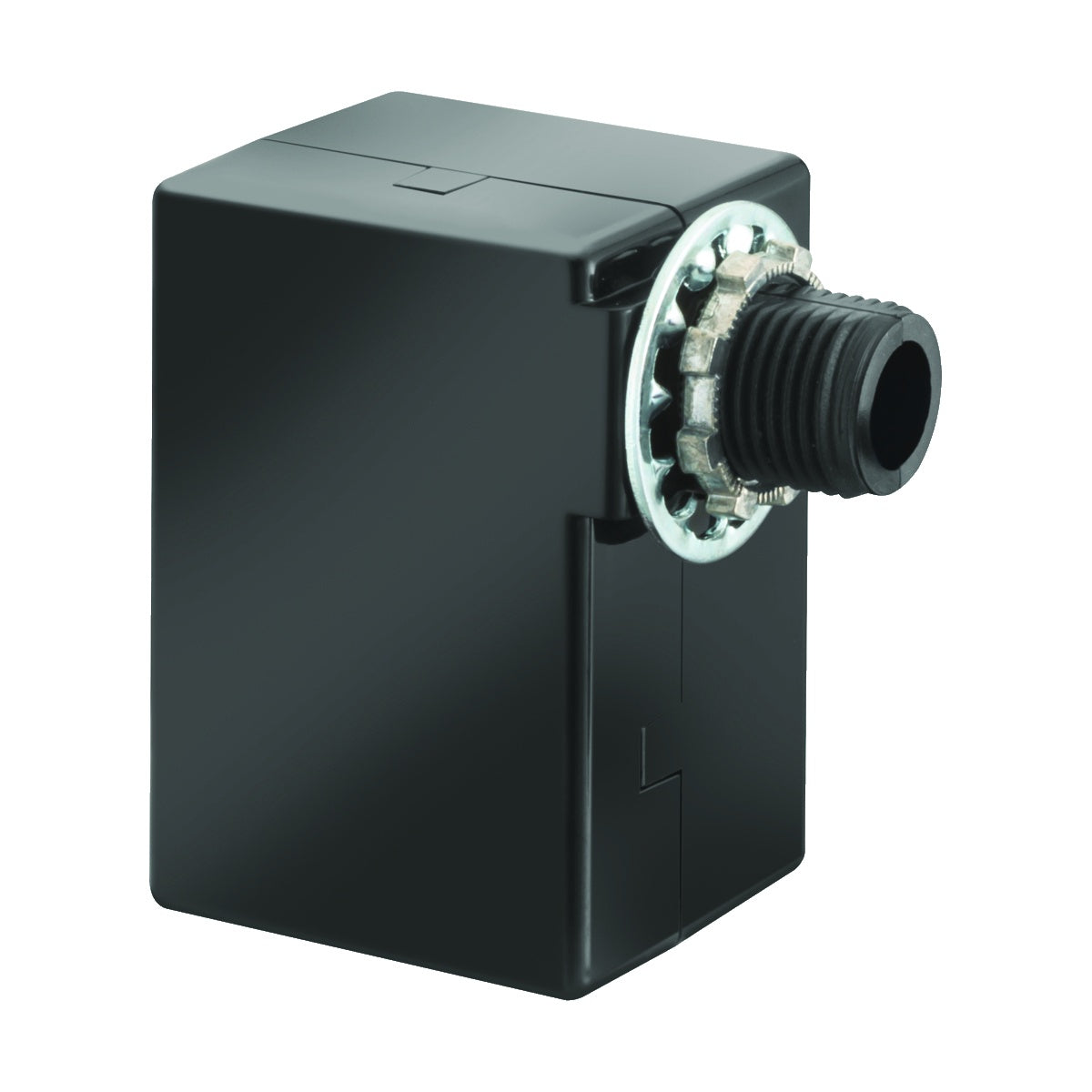

LITH PP20 Power Pack – Lighting Solutions for Electrical Distributors

The LITH PP20 Power Pack by Sensor Switch Motion Controls is a key component designed for powering low voltage sensor systems in indoor environments. This power pack converts Class I high voltage (120/277 VAC) to Class II 15 VDC, enabling efficient operation of remote sensors. Suitable for a wide range of applications including education, government, healthcare, hospitality, manufacturing, offices, retail, sports, and warehouses, it supports lighting solutions and sensor control in commercial and institutional settings. The unit is intended for mounting directly to a junction box, facilitating clean and code-compliant installation.

Specifications

• Input Ratings: 120/277 VAC, 50/60 Hz
• Output Ratings: 15 VDC, 20A per pole (150mA total)
• Relay Type: Latching
• Dimensions: 4" Height x 2.5" Width x 4" Length
• Material: Plastic
• Mounting: Unit to Junction Box via ½" knockout
• Color: Black
• Environmental Conditions: Indoor use, Plenum rated UL2043
• Operating Temperature: 14°F to 122°F (-10°C to 50°C)
• Relative Humidity: Up to 90%, non-condensing
• Country of Origin: Mexico
• Manufacturer Part Number: PP20
• Product Weight: 0.58 lb

Features

• Transforms high voltage to low voltage for powering up to 14 remote sensors
• Self-contained relay switches line voltage loads with patented relay contact protection
• Elongated chase nipple allows flexible mounting options to meet local code requirements
• Plenum rated for installation in ceiling plenums
• Compatible with low voltage cables (18 to 22 AWG) for clean wiring
• Supports dual-circuit control with multiple power packs or secondary relay packs
