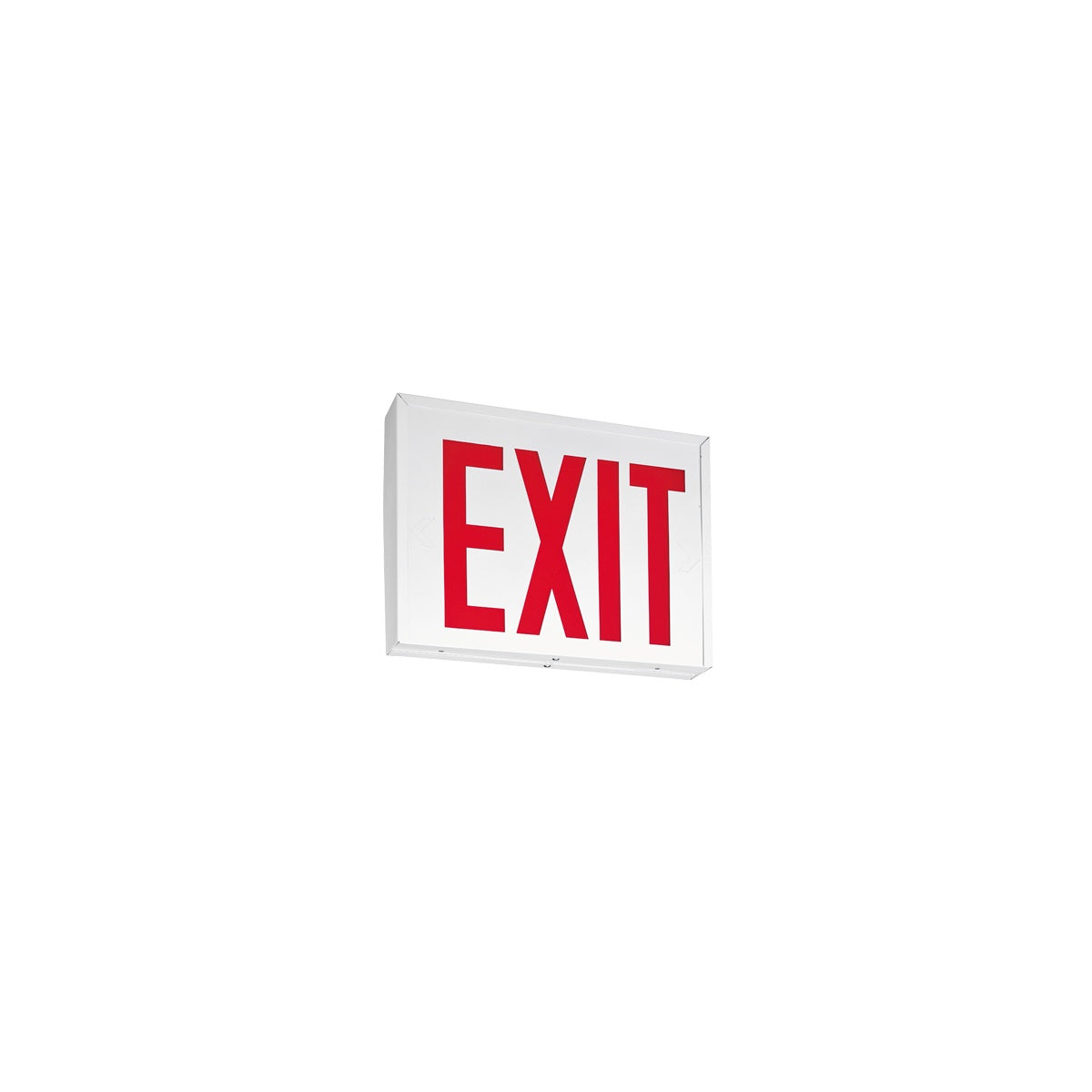

LITH LXNY W 3 R M4 Die-formed Steel Exit Sign

The LITH LXNY W 3 R M4 is a steel exit sign designed for indoor applications requiring durable and code-compliant emergency egress lighting. It is suitable for use in environments such as automotive, education, government, healthcare, manufacturing, offices, retail, transportation, and residential facilities. This product offers reliable LED illumination with a uniform, shadow-free display, making it an effective solution for safety signage in commercial and institutional settings. Ideal for electrical distributors and lighting solutions providers, it meets New York City code requirements and UL 924 standards.

Specifications

• Manufacturer: Lithonia Lighting
• Manufacturer Part #: LXNY W 3 R M4
• Material: 20-gauge Steel
• Color: White housing with Red letters
• Fixture Type: Exit Sign
• Lamp Type: LED - Static
• Letter Height: 8 inches with 1 inch stroke
• Viewing Distance: 100 feet
• Battery Runtime: 90 minutes (for emergency operation)
• Mounting: Surface mount with universal canopy for top, end, or back mounting
• Input Voltage: Dual voltage 120/277 VAC
• Energy Consumption: Less than 2 watts
• Environmental Conditions: Indoor use
• Country of Origin: China
• Product Weight: 19.17 lbs
• UPC: 745974325635

Features

• New York City Approved steel housing exit sign compliant with UL 924, NFPA 101, NEC, and OSHA illumination standards
• LED technology provides uniform illumination with a typical lamp life of 10 years
• Sealed, maintenance-free nickel-cadmium battery for emergency operation with 90 minutes capacity
• Universal mounting options with included canopy and universal chevron knock-outs for directional indication
• Low energy consumption suitable for sustainable lighting solutions
• Includes an extra face plate and red lens for conversion to double-face sign if needed
• Designed for easy installation and maintenance with clear wiring and mounting instructions

Downloads & Links

• Spec Sheet
• Instruction Sheet
• Warranty Sheet
