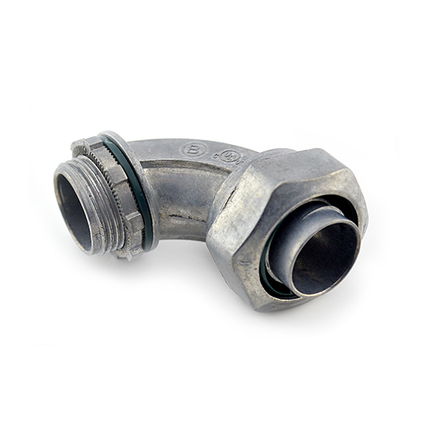

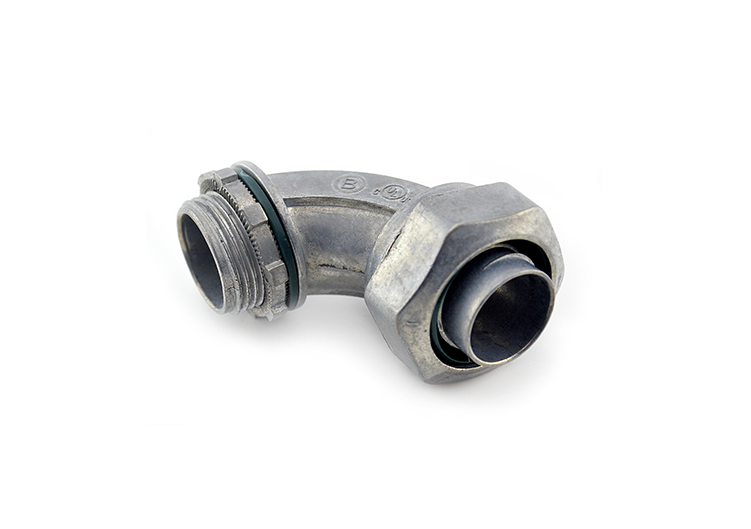

Liquid Tight 90-Degree Connector 1" Die Cast Zinc

This 90-degree liquid tight connector is designed for use with metallic and nonmetallic "Type B" liquid tight conduit, providing a secure and corrosion-resistant connection between conduit and electrical boxes or enclosures. Manufactured by Bridgeport Fittings, it features zinc electro-plated cast zinc construction suitable for wet locations and hazardous environments. The connector includes NPT threads, a polyethylene gasket, and an internal sealing ring to ensure a liquid tight seal, meeting NEC requirements and NEMA Type 2, 3, 3R, 4, and 12 standards. It is ideal for electrical distributors and switchgear suppliers requiring reliable conduit fittings for lighting solutions and wire and cable installations.

Specifications

• Manufacturer Part #: 472-LT2
• Material: Zinc Cast
• Finish: Zinc Electro-Plated
• Trade Size: 1"
• Length: 2.5 in
• Width: 2 in
• Product Weight: 0.5076 lbs
• UL File Number: E9391
• CSA File Number: LR39354
• NEMA Types: 2, 3, 3R, 4, 12
• UL Standard: UL-514B
• Federal Specification Number: A-A-50552

Features

• 90-degree connector for use with metallic and nonmetallic "Type B" liquid tight conduit
• Die cast zinc construction for sizes 1" and up, offering corrosion resistance in harsh environments
• Polyethylene gasket and internal sealing ring provide a liquid tight connection
• NPT threaded ferrule ensures secure conduit attachment
• Suitable for use in wet locations and hazardous areas including Class I, Division 2; Class II, Divisions 1 & 2; and Class III, Divisions 1 & 2 per NEC 501.30 (B)
• Meets NEC requirements and is UL and CSA listed
